Bundle: Avocent SwitchView 1000 Series Rack Mount KVM Switch (1 Local User, 16 Systems) with USB and PS/2 Support + 4xCBL0029 Cables

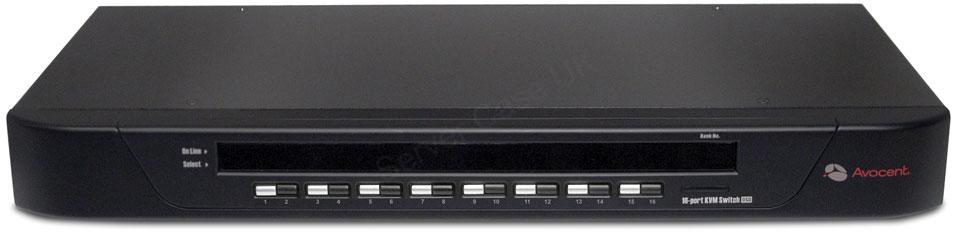

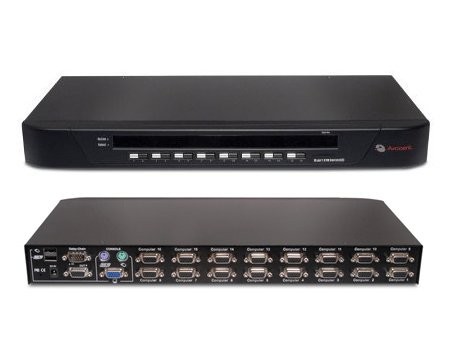

The SwitchView 1000 rack mount, 16-port KVM switch provides PS/2 and/or USB connectivity for SMB server rooms. The cost-efficient SwitchView 1000 16-port KVM switch provides PS/2 and/or USB connectivity for users and target devices. This single-user switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions. The SwitchView 1000 16-port switch can be cascaded to support up to 256 target devices. With a 1U-high design, the switch does not compete for valuable rack space in SMB server rooms. Plus, it is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers.



CBL0029: 6 foot PS2/USB cable for use with the SwitchView 1000 switch.Features

• Bundle: Avocent SwitchView 1000 Series Rack Mount KVM Switch (1 Local User, 16 Systems) with USB and PS/2 Support + 4xCBL0029 Cables
• Single-user, rack-mounted SwitchView 1000 4-, 8- and 16-port switches are specifi cally designed for SMB server rooms

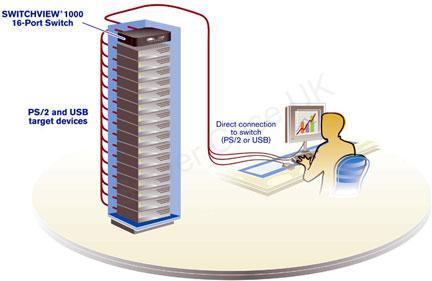

• Uses a three-in-one KVM cable that supports USB or PS/2 target devices
• The SwitchView 1000 16-port switch can be cascaded to support up to 256 target devices
• On-screen display (OSD): Simple control through an on screen menu
• Password Protection: Secure access is based on password protection
• Programmable Autoscan: Customize scanning times between attached systems
• Flash Upgradeable: Convenient upgrades mean that the product never goes out of date
• Ability to connect multiple units together without a complicated confi guration
• Ability to customize scanning times between attached systems with programmable autoscan
• Supported hardware - Computers: PC, Mac, Sun (with USB or PS/2 interface)
• SwitchView 1000 switches are backed by Avocent�s 2-year warranty and technical support

Specifications

Compliance
Certifications	FCC, CE, C-Tick, UL, cUL
Display
Monitor Resolution Support	2048 x 1536 Pixels
Electrical
Electrical Frequency	60Hz
Environmental
Operating Temperature	Operating Temperature 0 to 40�C
General
Model Name	1000
Product Family	SwitchView
Warranty	Two years warranty and technical support.
Barcode	0636430058726
Interfaces/Ports
KVM Ports	16 PC Port(s) x 1 Console Port(s)
Physical
Case Colour	Black
Dimensions	41.0cm (W) x 16.5cm (D) x 4.45cm (H) - Weight 2.2kg
