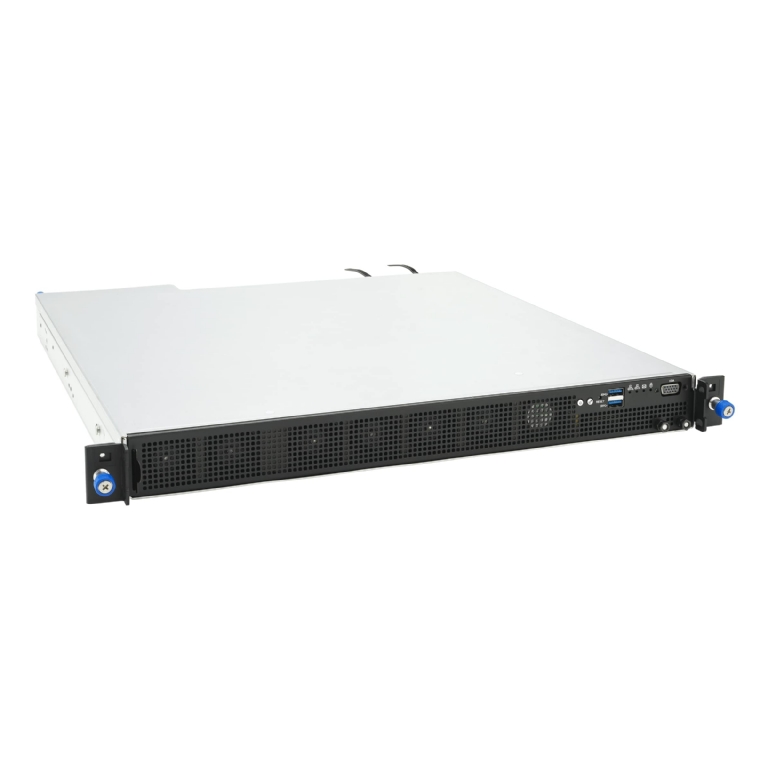

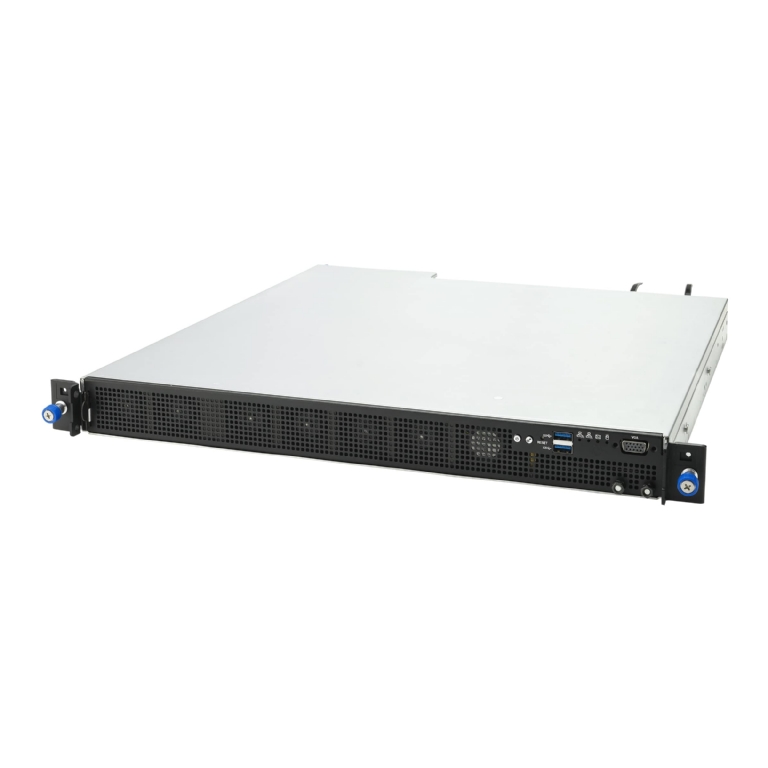

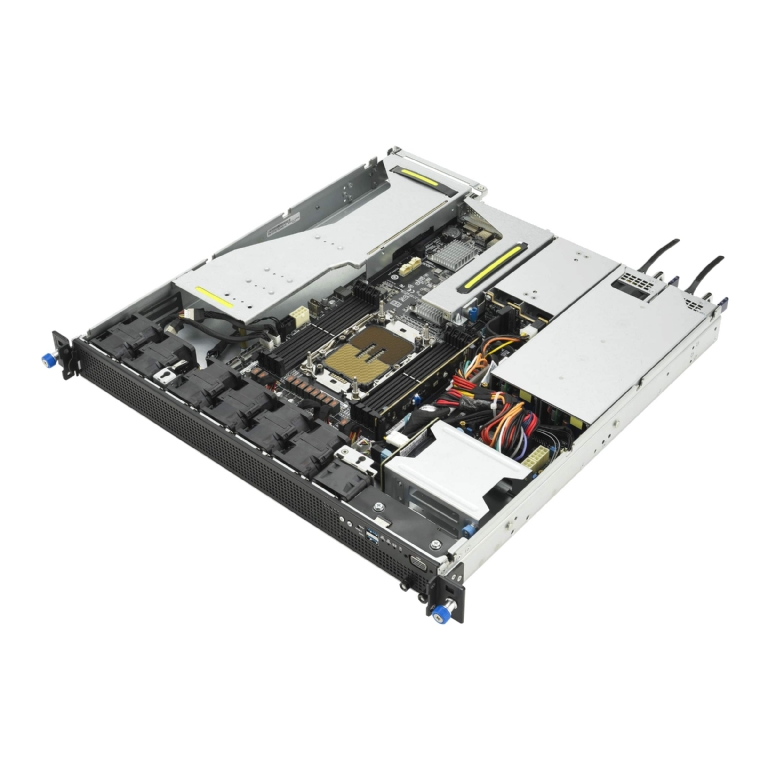

ASUS EG500-E11-RS2-R 1U Rackmount Single Xeon 5th Gen Edge Server - Short Depth - Rear IO - Redundant PSU

• Processor / System Bus

  1x Socket E (LGA 4677)
  Intel®Xeon® Processor Scalable Family(Air cool with EVAC Up to 350W)

  *Refer to support page for more information

• Core Logic

  Intel® C741 Chipset

• Memory

  8 x DIMM slots
  (8-channel,1 DIMM per channel)
  4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
  5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
  Maximum 2048GB

  * Refer to support page for more information

• Expansion Slots

  Up to 3 slots
  1 x PCIe G5 x16 link (FHHL)+2 x PCIe G5 x16 link (FHFL)

• Storage

  2x E1.S + 2x 2.5'' Int. SATA for 650W/Short PSU
  2x E1.S for 1300W/Long PSU
  2x M.2 (22110/2280, Gen5 x4 Link)
  _{*E1.S is optional and only supported for E1.S SKU, cannot be purchased separately
  *Internal SATA SSD is optional for 650W PSU/ short PSU and only for internal bay SKU, cannot be purchased separately}

• Networking

  2 x X710 10G LAN Ports+
  1 x Dedicated management port

• Graphic

  Up to 3 GPU cards
  Please find the latest GPU support from https://servers.asus.com/support/gpu

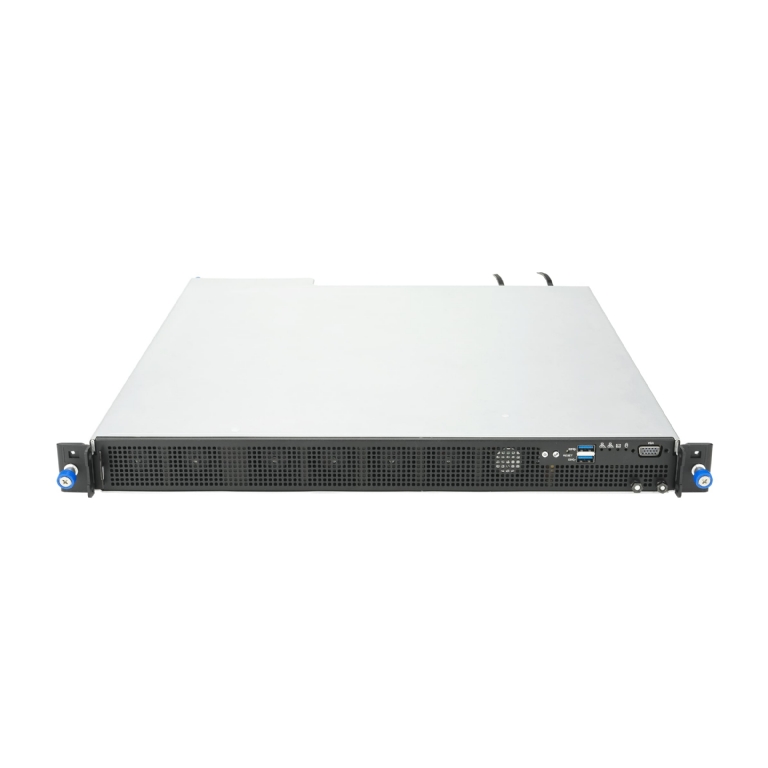

• Front I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port

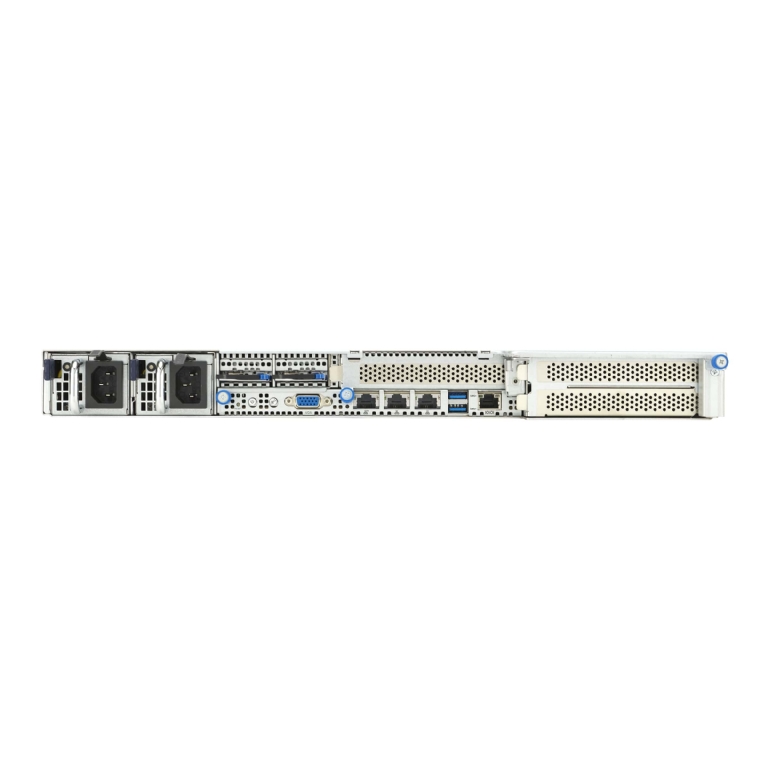

• Rear I/O Ports

  1 x VGA port
  2 x USB 3.2 Gen1 ports
  2 x RJ-45 10G LAN port
  1 x RJ-45 Mgmt LAN port
  1 x RJ-45 Console port

• Switch/LED

  Front Switch/LED:
  1 x Power Switch w/ LED
  1 x Location Switch w/ LED
  1 x Message LED
  1 x reset button

  Rear Switch/LED:
  1 x Power Switch (w/ LED)
  1 x Location Switch (w/ LED)
  1 x Message LED
  2 x LAN LED
  1 x HDD LED
  1 x reset button

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (Optional)
  On-Board ASMB11-iKVM for KVM-over-IP

• Dimensions

  430mm x 438.5mm x 43.7mm  (D x W x H)
  16.93" x 17.26" x 1.72"  (D x W x H)

  399*mm x 438.5mm x 43.7mm  (D x W x H)  *Ear to rear wall
  15.71" x 17.26" x 1.72"  (D x W x H)

• Form Factor

  1U

• Weight

  Net Weight Kg (CPU, DRAM & HDD not included):
  15kg (approximate)

  Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
  17 kg (approximate)

• Power Supply

  1+1 Redundant AC PSU
  650W 50.5MM SLIM Platinum Power Supply
  1300W 50.5MM SLIM Platinum Power Supply
  *Titanium Power Supply is planning.
  *Different PSU may not swap for each other directly, please contact ASUS Technical Support for more detail.

• Note

  Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 60℃
  Non operation humidity: 20% ~ 90% ( Non condensing)

  Note:Operating Temperature based on configurations
