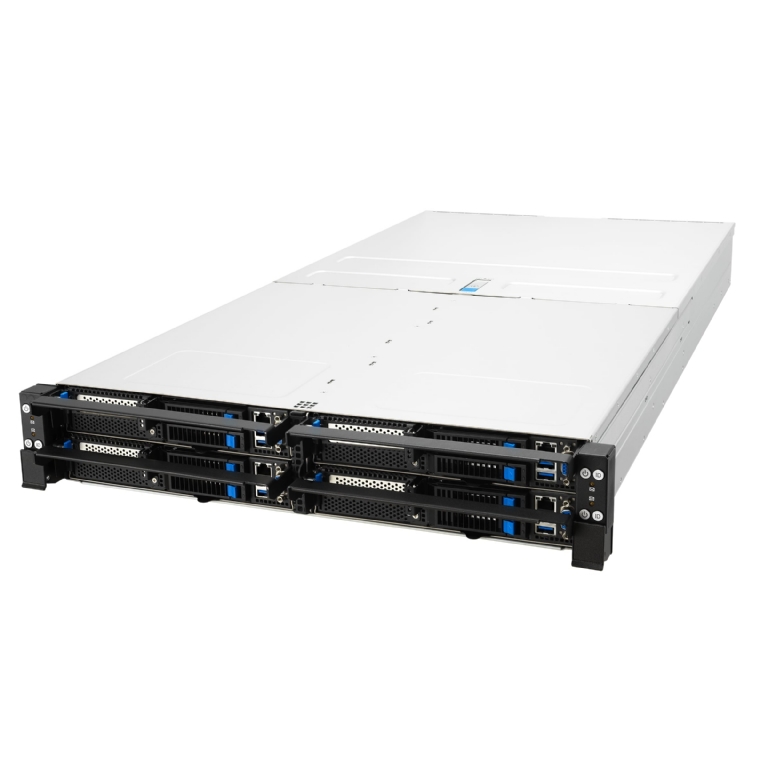

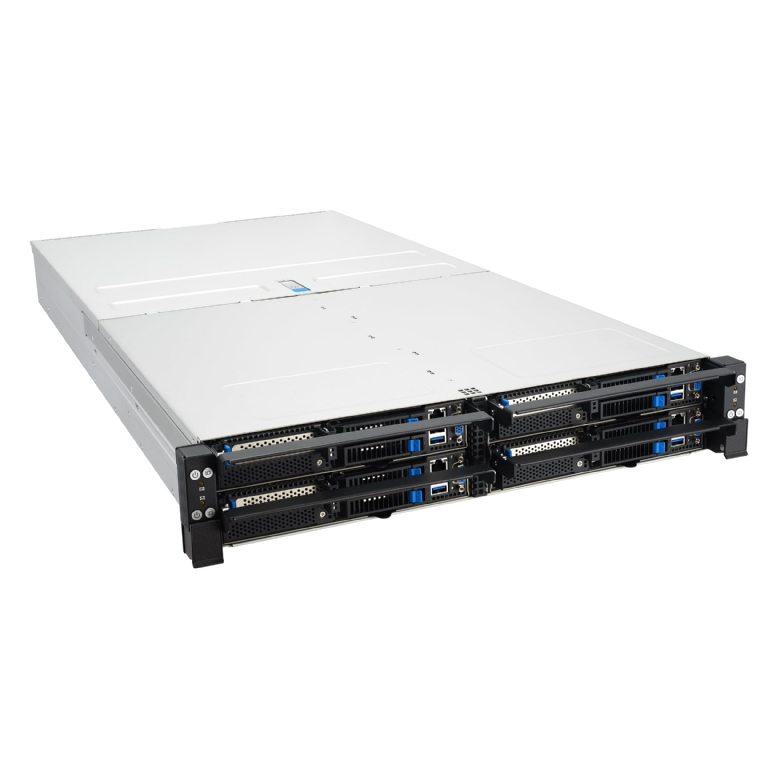

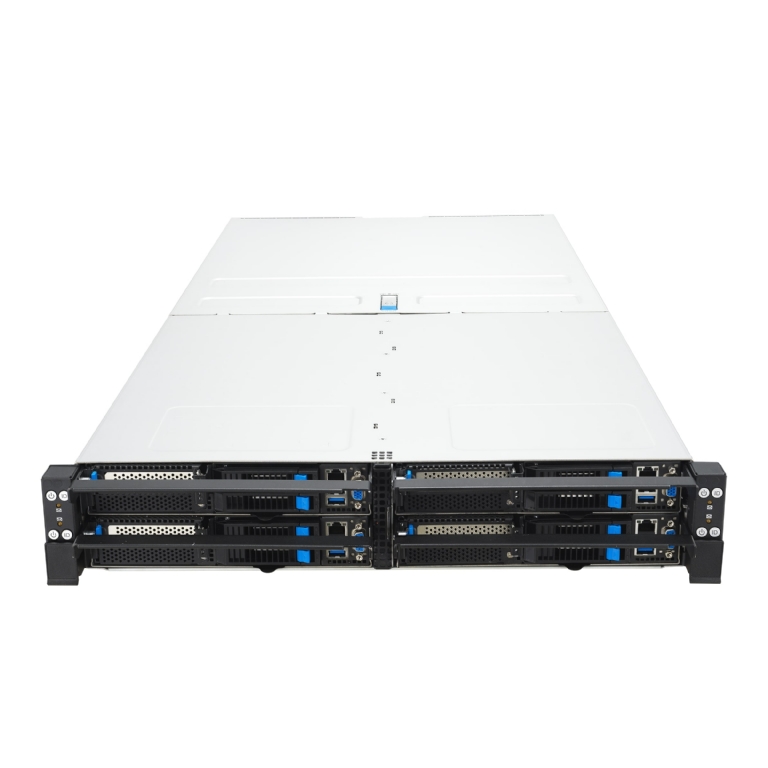

ASUS RS520QA-E13-RS8U 2U Quad Node Rackmount Single 9005 Series AMD EPYC Server - 8x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

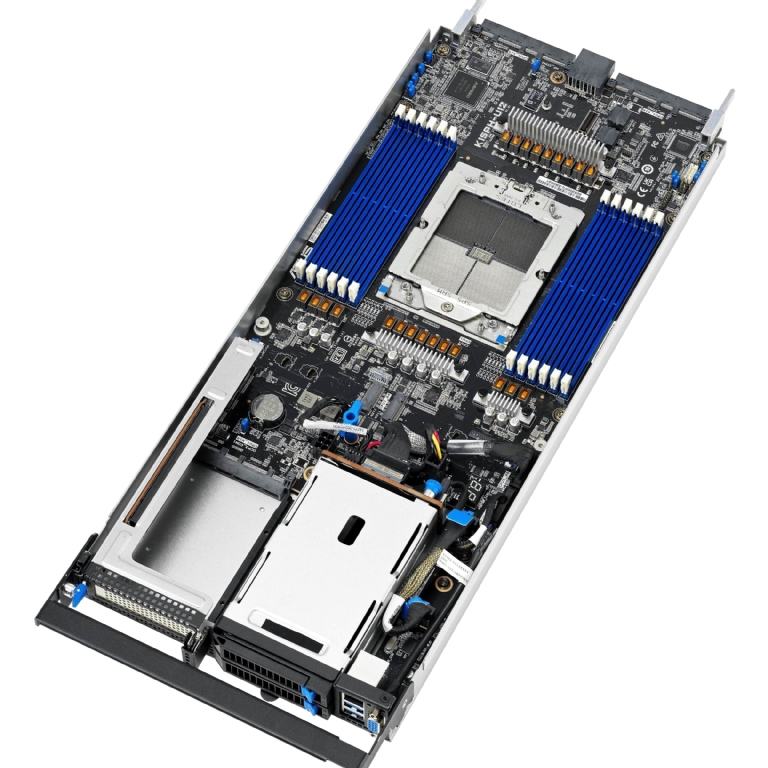

  Per node: 1 x Socket SP5 (LGA 6096P)
  AMD EPYC™ 9005 Series Processors (Up to 400W/500W* TDP)
  *500W TDP requires an operating temperature of 25°C

• Generation

  E13

• Memory

  Total Slots :
  Per node: 12 + 8 DIMM slots
  12 x on-board, additional 8 x on CXL module (Optional)
  Capacity :
  Per node: Total Maximum up to 2560GB
  Memory Type :
  On-board: DDR5 up to 6400 MT/s
  CXL module: DDR5 up to 5600*/4400 MT/s
  * CXL modules support 5600 MT/s in 1DPC mode
  Memory Size :
  128GB, 96GB, 64GB, 32GB RDIMM
  128GB, 96GB, 64GB, 32GB 3DS RDIMM
  ** CXL is optional and dependent on configuration
  *** Refer to www.asus.com/support for more information

• Expansion Slots

  Per node:
  1 x PCIe (Gen5 x16 link, HHHL)
  1 x OCP 3.0 (SFF)

• Drive Bays

  Per node:
  2 x 2.5” hot-swap drive bays (NVMe/SATA/SAS*)
  * SAS support requires an optional HBA/RAID card
  2 x M.2 connectors (Gen5 x4 link, 2280)

• System Fan

  4

• Networking

  Per node:
  1 x Management Port

• Graphic

  Aspeed AST2600 64MB

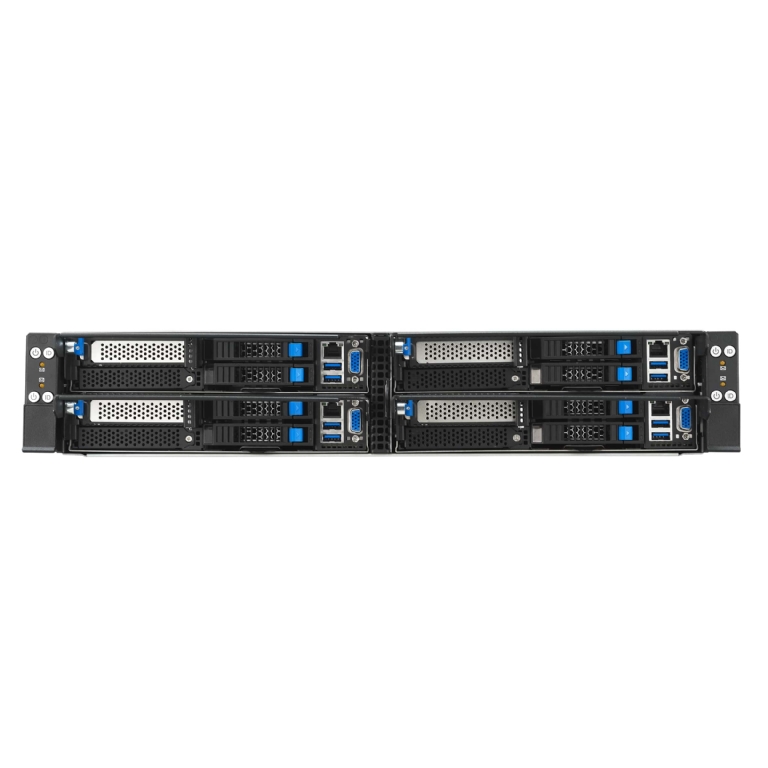

• Front I/O Ports

  Per node:
  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x RJ-45 Management LAN port

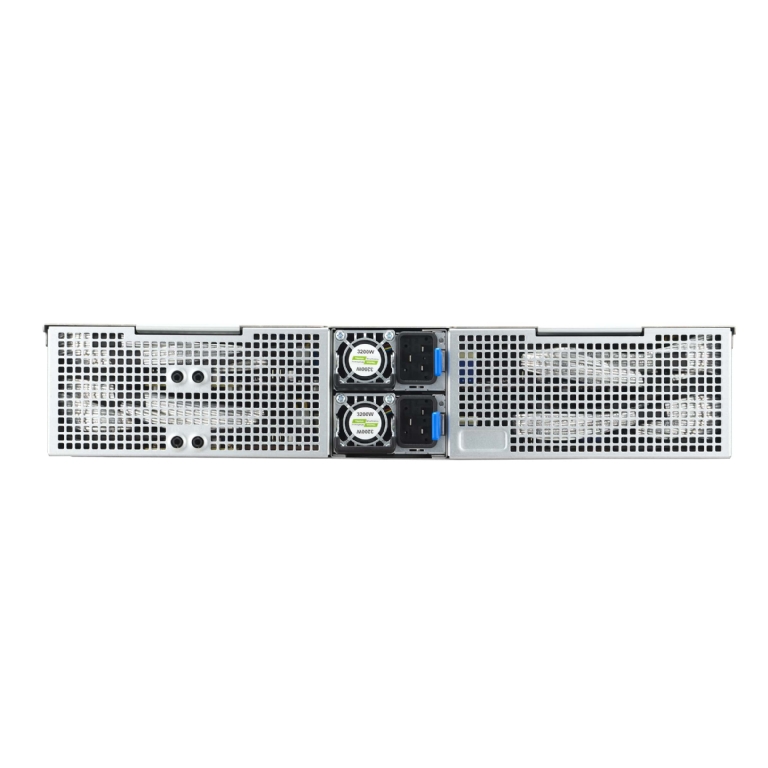

• Rear I/O Ports

  Per node:
  1 x UART debug port

• Switch/LED

  Per node:
  Front Switch/LED:
  1 x Power switch w/ LED
  1 x Message LED
  1 x Location switch w/ LED
  1 x BMC heartbeat LED
  1 x LAN LED
  2 x HDD Access LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB12-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Optional)

• Regulatory Compliance

  BSMI, CE, FCC(Class A)

• Dimensions

  900(L) x 446(W) x 87.2(H) mm
  35.43(L) x 17.56(W) x 3.43(H) inch

• Form Factor

  2U

• Weight

  Net Weight : 27KG
  Gross Weight : 41.7KG

• Power Supply

  2 + 0 3200W 80 PLUS Titanium Power Supply
  Rating: 220-240 Vac, 16A, 50/60Hz
  * Support 1 + 1 Redundant 3200W with particular configuration

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 60℃
  Non operation humidity: 20% ~ 90% (Non condensing)

• CPU Heatsink/ Cooler

  4 x 1U EVAC Heatsink
