MSI S1205-01 1U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
S1205-01
MSI S1205-01 1U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| Form Factor |
1U
|
| Processor |
Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 205W
|
| Chipset |
Intel® C741
|
| Memory |
(32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/3DS
- Max. Frequency 5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC) - Max Capacity per DIMM: RDIMM: 96GB RDIMM-3DS: 256GB |
| Networking |
No onboard LAN
(2) 1000GBase-T Ethernet Ports w/ optional M.2 LAN module NAD-101 |
| Storage |
(2) M.2 2280/22110 PCIe3.0 x2 ports from PCH
|
| Drive Bays |
(12) Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe
|
| Expansion Slot |
Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports HHHL PCIe card Riser 2: (1) PCIe 4.0 x16 slot from CPU1 supports HHHL PCIe card Riser 4: (1) PCIe 3.0 x16 slot from CPU1 supports HHHL PCIe card OCP3.0: (1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function |

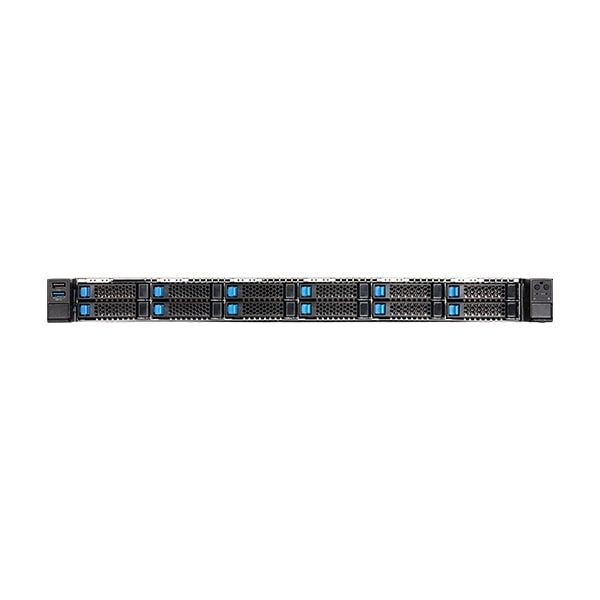

| Front I/O |
(12) Hot-swap 2.5" drive bays
(2) USB 2.0 Type-A Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |

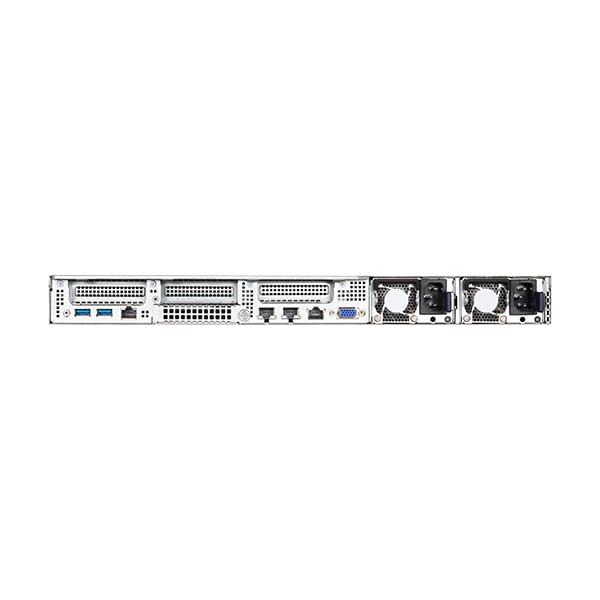

| Rear I/O |
(1) 1000Base-T Dedicated Server Management Port
(2) USB 2.0 Type-A Port (1) VGA D-Sub Port (1) COM RJ45 Port (1) UID LED Button |
| RAID |
Intel® SATA RAID 0/1/10/5
(1) VROC header for Intel® VROC key |
| Server Management |
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) (1) MicroSD card slot for BMC log |
| Cooling |
(2) Passive air cooling modules for max. 205W CPU
(8) 4056 Easy-Swap System Fans |
| Environment |
System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification |
CE, FCC (Class A)
|
| Dimensions |
438mm(17.2") Wx 43.2mm(1.7")H x 770mm(30.3")D
|
| Power Supply |
(1+1) Redundant 1300W CRPS 80+ Platinum
|
| Security |
TPM 2.0
|
| TPM |
(1) TPM header with SPI interface
|
| Package Contents |
(1) Barebone G1205-01
(1) Quick guide (1) Slide rail Kit (2) CPU Coolers (2) CRPS PSUs (2) Power cables |
| Parts List |
(1) Quick guide: G52-S3222X2-Q13
(1) Slide rail Kit: E21-S258030-C27 (2) CPU Coolers: E31-0807290-A87 (2) CRPS PSUs: S93-0913150-S14 (2) Power cable: K33-3001002-I45 for NA |
| Optional parts |
TPM2.0 module: TPM20-IR
M.2 LAN module: MEZ-E11 |
