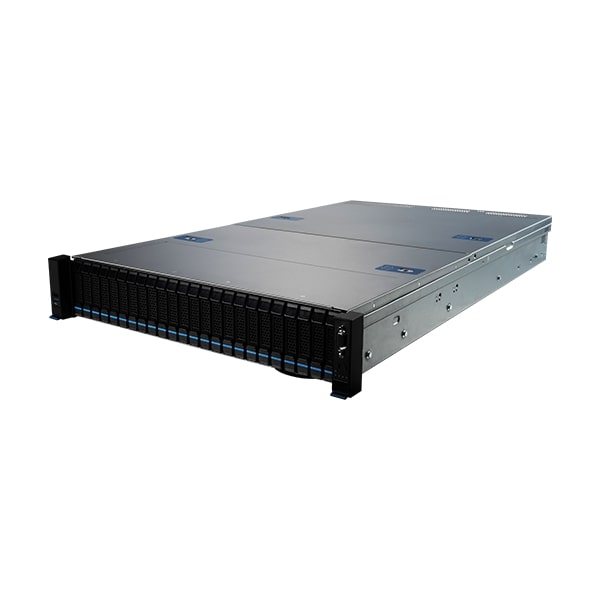

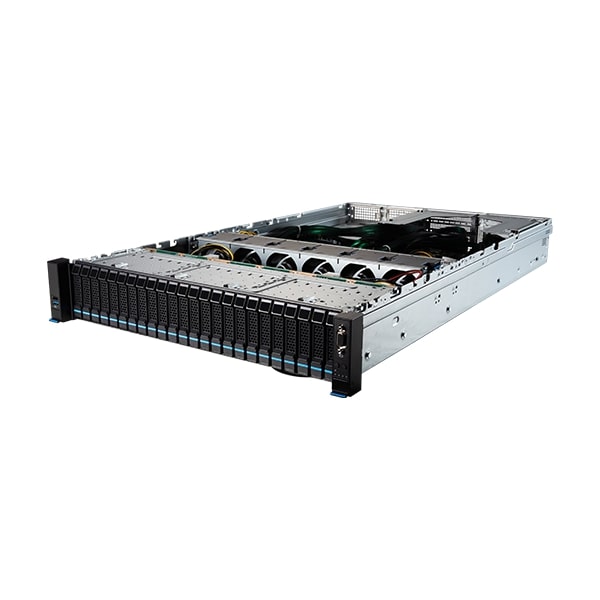

MSI S2206-04 2U Rackmount Dual AMD EPYC Server - 24x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
S2206-04
MSI S2206-04 2U Rackmount Dual AMD EPYC Server - 24x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| Form Factor |
2U
|
| Processor |
Dual AMD EPYC™ 9004 Series Processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 360W
|
| Memory |
(24) DDR5 DIMM Slots, 12 channels per CPU(1DPC), RDIMM/RIMM-3DS
- Max. Frequency 4800MT/s - Max. Capacity per DIMM: RDIMM: 96GB RDIMM-3DS: 256GB |
| Networking |
(2) 1000Base-T Ethernet Ports (Intel® I350AM2)
|
| Storage |
(2) M.2 2280 PCIe3.0 x2 ports from CPU0
|
| Drive Bays |
(24) Hot-swap 2.5" drive bays support (16) U.2 PCIe 4.0 NVMe + (8) SATA 3.0/SAS
*SAS card is required for SAS devices support |
| Expansion Slot |
Riser 1:
(1) PCIe 5.0 x16 slot from CPU0 supports FHHL PCIe card (2) PCIe 5.0 x16 slot((x8 signal) from CPU0 support FHHL PCIe card OCP3.0: (1) PCIe 5.0 x16 OCP3.0 slot from CPU0, supports NCSI function |

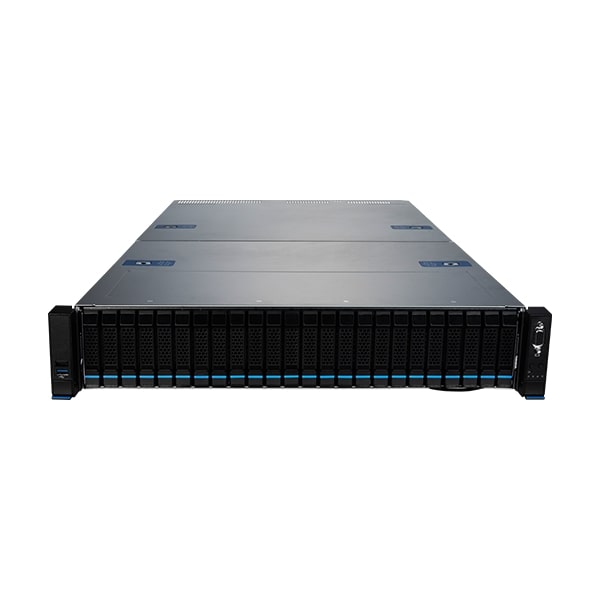

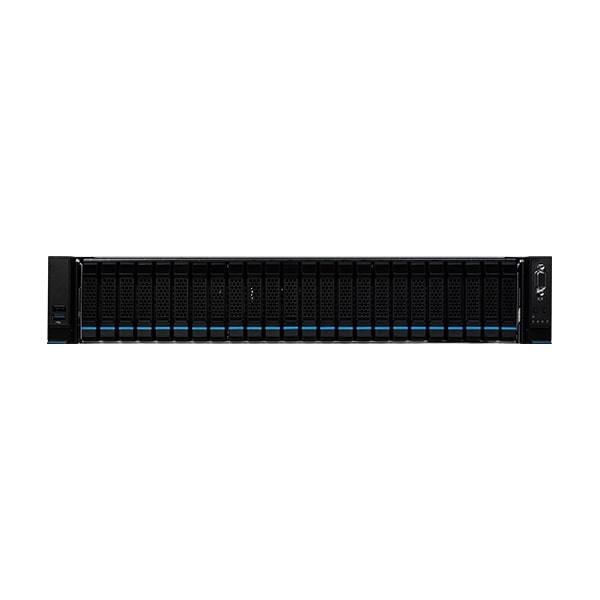

| Front I/O |
(24) Hot-swap 2.5" drive bays
(2) USB 3.0 Type-A Port (1) VGA D-Sub Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |

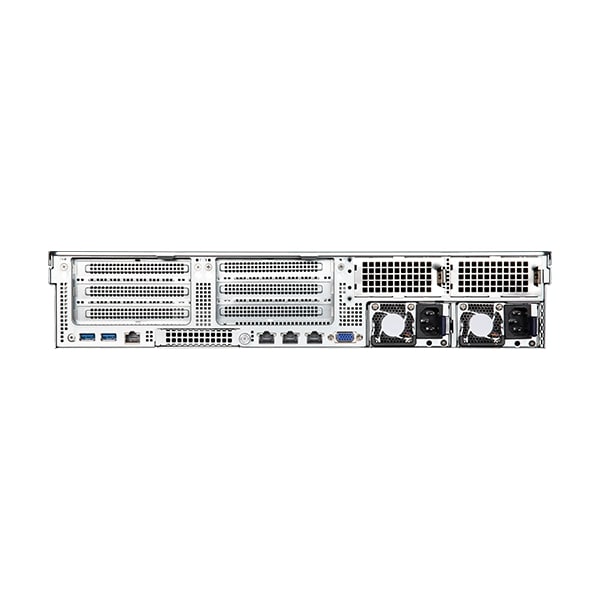

| Rear I/O |
(2) 1000Base-T Ethernet Ports
(1) 1000Base-T Dedicated Server Management Port (2) USB 3.0 Type-A Port (1) VGA D-Sub Port (1) COM RJ45 Port (1) UID LED Button |
| RAID |
N/A
|
| Server Management |
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) (1) MicroSD card slot for BMC log |

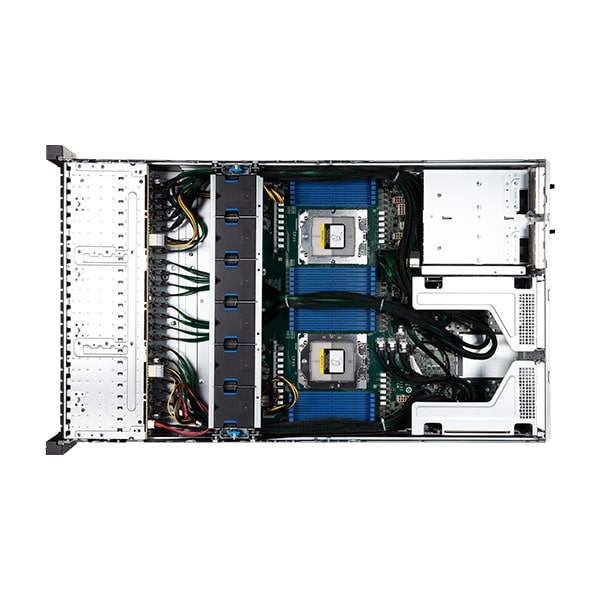

| Cooling |
(2) EVAC air cooling modules for max. 360W CPU
(6) 6038 Hot-swap System Fans (1) 2U Height Air duct |
| Environment |
System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification |
CE, FCC (Class A)
|
| Dimensions |
438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D
|
| Power Supply |
(1+1) Redundant 1600W CRPS 80+ Platinum
|
| Security |
TPM 2.0
|
| Socket |
(2) AMD Socket SP5
|
| Package Contents |
(1) Barebone S2206-04
(1) Quick guide (1) Slide rail Kit (2) CPU Coolers (2) CRPS PSUs (2) Power cables |
| Parts List |
(1) Quick guide:G52-S3122X2-Q13
(1) Slide rail Kit: E21-S258030-C27 (2) CPU Coolers: E31-0807350-824 (2) CRPS PSUs: S93-0913160-S14 (2) Power cable: K33-3001002-I45 for NA |
| Optional parts |
TPM2.0 module: TPM20-IR
|
