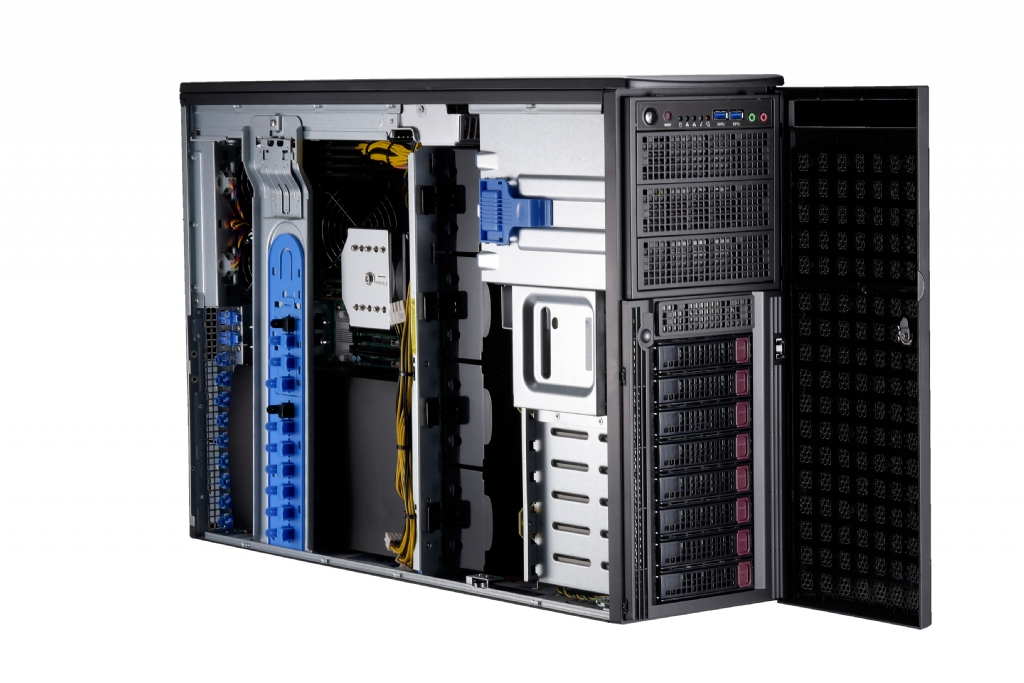

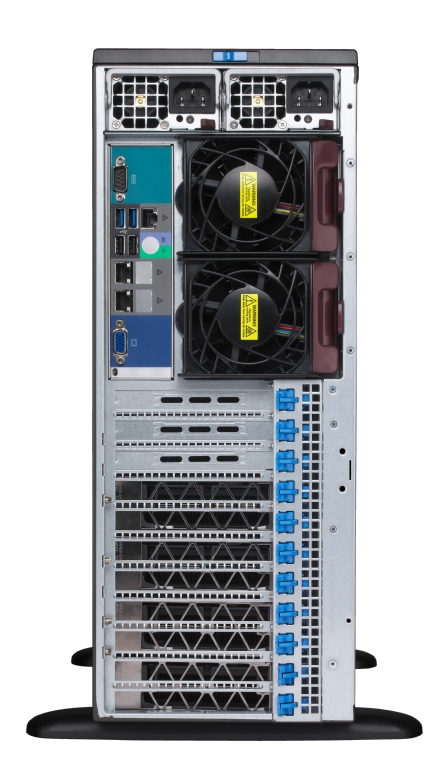

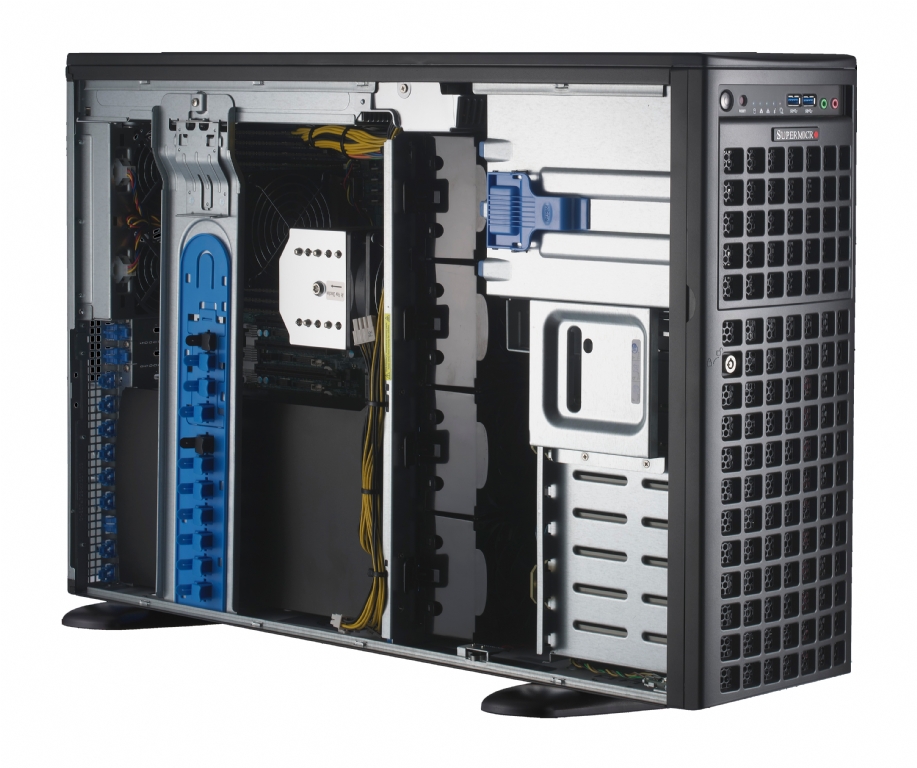

Supermicro SuperServer 7049GP-TRT

SYS-7049GP-TRT
Supermicro SuperServer 7049GP-TRT
£2,231.77
ex. VAT
(£2,678.12
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SYS-7049GP-TRT
  • SuperServer 7049GP-TRT (Black)

Motherboard

Super X11DPG-QT

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel® HT Technology
GPU Support

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via headers)
Video
  • 1 VGA port
Serial Port/Header
  • 2 COM ports (1 rear, 1 Header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-747BTS-R2K20BP

Dimensions and Weight
Height
  • 18.2" (462mm)
Width
  • 7.0" (178mm)
Depth
  • 26.5" (673mm)
Package
  • 27" (H) x 13" (W) x 38" (D)
Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
Available Colors
  • Dark Gray

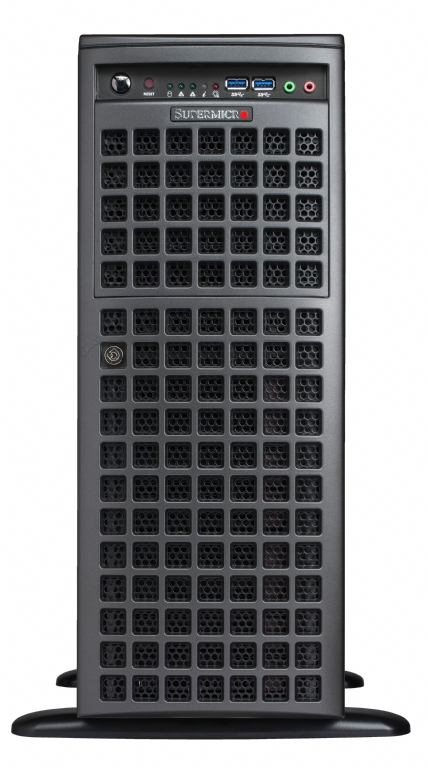

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat & Power Fail LED
Ports
  • 2 Front USB 3.0 Ports

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x16 (single-width) slots
  • 1 PCI-E 3.0 x4 (in x8 slot)

Drive Bays / Storage
Hot-swap
  • 8 Hot-swap 3.5" drive bays
  • Optional 4x 2.5" NVMe supported
M.2
  • 1 NVMe based M.2 SSD
  • Form Factors: 2280, 22110

System Cooling
Fans
  • 4 Heavy duty fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)
Heatsink
  • 2 Active heatsink with optimal fan speed control

Power Supply
2200W or 2000W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  [ Cert. in progress ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPG-QT

CSE-747BTS-R2K20BP
1

1
Super X11DPG-QT Motherboard

4U Chassis
Backplane BPN-SAS3-747TQ-N4 1 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-0188L-02 2 MINI SAS-4 SATA,INT,64/54/44/34CM,64CM SB,30AWG
Parts MCP-260-00042-2N 1 STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar
Manual MNL-2045-QRG 1 7049GP-TRT Quick Reference Guide
Heatsink / Retention SNK-P0070APS4 2 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
FAN 1 FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
FAN 2 Fan-0114L4 2 92x38mm 4-PIN PWM FAN W/ HUS for SC747
FAN 3 FAN-0138L4 2 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
Power Distributor PDB-PT747-6824 1 Power Distributor for 4U GPU solution


Optional Parts List
  Part Number Qty Description
Mounting Rails MCP-290-00059-0B - Rail set+handles, quick/quick, optional for 4U 17.2"W tower
AOC Dummy Assembly MCP-240-00096-0N - SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
HDD Converter MCP-220-93801-0B - Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Passive GPU Kit MCP-320-74702-0N-KIT 1 X11 GPU Kit for passive GPU/Coprocessor support
Cable CBL-PWEX-1040 - CPU 8 pin female(White) to GPU 6/6+2 pin male(Black) power adapter, 5cm, 16/ 20AWG
Front Bezel MCP-210-74703-0B - Front bezel cover (for 5.25" bay) for rackmount
Add-on Card Dummy MCP-240-00096-0N - GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
Intel VROC RAID Key AOC-VROCINTMOD

AOC-VROCSTNMOD

AOC-VROCPREMOD
1

1

1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)

Intel VROC Standard, RAID 0, 1, 10

Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
NVMe Kit
NVMe AOC AOC-SLG3-4E4T-O 1 4 Port NVMe PCIE X16 Retimer,HF
Cable CBL-SAST-0847 4 OCuLink v.1.0 ,INT,PCIe NVMe SSD, 76CM, 11D38F27D,34AWG,RoHS
NVMe drive Converter MCP-220-00150-0B 4 NVMe version of 3.5" HDD Tray (Convert 3.5" to 2.5" for 747/936/938)
SKL-F Kit
IFT Carrier Board AOC-SKL2Q-O 1 Intel IFT carrier board for Omni-Path for Skylake/Knights Landing,RoHS
Omni-Path Cable CBL-IFP-1022-1PBT480RAN 1 CBL,DCRT,SIGL,480MM,IFPB,1P,RA,Non-inverted,RoHS
Sideband Cable CBL-CDAT-1049 1 Sideband for KNL-F/Skylake-F, ACES 2X12F to two 2X12F, P1.0, 20/38cm, 30AWG
DVD Kit
DVD-RW with Cable DVM-LITE-DVDRW24-HBT

CBL-0082L

CBL-0044L
1

1

1
BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF

Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG

SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat
