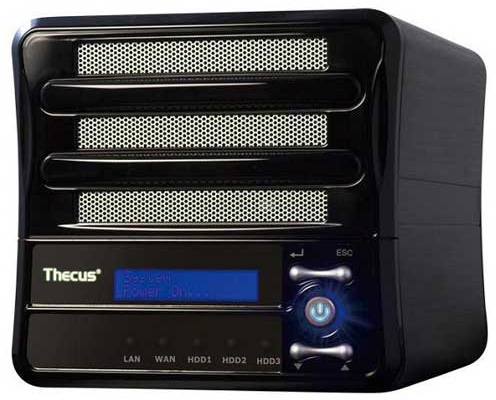

Thecus N3200 NAS Device

Network Interfaces

WAN

1 x 10/100/1000 Mbps Ethernet Port

LAN

1 x 10/100/1000 Mbps Ethernet Port

Storage

HDD Bay

3 x 3.5" SATA HDD

HDD Capacity

80/120/160/200/250/300/400/500/750/1000

IO Interfaces

PCI Interface

For proprietary Thecus application

eSATA Interface

1 x eSATA port (Back)

USB

2 x USB 2.0 ports (Front x1, Back x1)

IR receiver

For future options

System Information

LED Indicators

1 x Power LED

2 x Network link + activity LED

3 x Hard drive power + activity LED

LCD Module

For basic configurations and status display

Power Supply

External Adapter

AC 100 ~ 240 Volt, 50/60 Hz, auto detection

Environment

Safety and Environment

CE, FCC, BSMI, C-Tick, VCCI, RoHS Compliant

Temperature

5℃ to 40℃

Humidity

0 ~ 80% R.H. non-condensing

Network

Configuration

Fixed IP address, Dynamic IP address, DDNS

Network File Protocols

Microsoft Networks (CIFS/SMB)

Apple Filing Protocol (AFP 3)

File Transfer Protocol (FTP)

WebDisk through Hyper Text Transfer Protocol (HTTP) or Secure Hyper Text Transfer Protocol (HTTPs)

Network Client Type

Microsoft Windows NT/2000/XP/2003/Vista

Unix/Linux/BSD

MAC OS X, OS 9, OS 8.6

DHCP Server

Assigning IP address on LAN/WLAN ports

Disk management

RAID

RAID 0, 1, 5, and JBOD

Auto Rebuild

Hot Swappable

Hot Spare

Disk Roaming

Power Management

Disk idle spin-down

External USB

HDD/Flash disk support

Multimedia Support

Media Server

Works with DLNA-certified players.

Supported File Types: MPEG, RMP, WPL, PLS, M3U, ASX, WAV, PNG, BMP, AVI, WMV, WMA, MP3, LPCM, JPEG

iTunes Server

Supported File Types: AAC, MP3, WAV

Photo Web Server

Supported File Types: GIF, JPG (JPEG), BMP, PNG

Support EXIF display

Support slide show

Web cam

Support Capture, preview, schedule

Support image size : 160 x 120, 320 x 240, 640 x 480

Share Management

User Authentication

Microsoft NT Domain Controller (PDC)*

Microsoft Active Directory Authentication (AD)*
Supports built-in user accounts
Supports built-in user groups

Folder Management

Share Folder Level Permission

Public Folder

File System

File System Type

Journaling File System

Language Support

Unicode Support

Authorization

Read, Write or Deny options on individual users or groups

Administration

Multi-Lingual Web-based Administration

Web-based server management Interface Supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish

Setup Wizard

MS Windows, MAC OS X device discovery and setup utility program

E-mail notification

Send system message via e-mail to specified e-mail accounts

NTP support

Network Time Protocol support

Backup

Thecus Backup Program

Thecus Backup Utility (Client backup utility; supports Microsoft Windows XP/2000 /MAC OS X)

USB copy

Copy USB Mass storage device contents to specified location to NAS

Misc.

Print Server

Network printing through Internet Printing Protocol (IPP) using USB printer

Download Manager

Support BT, FTP, HTTP schedule download

Schedule on/off

Schedule on/off form power saving
