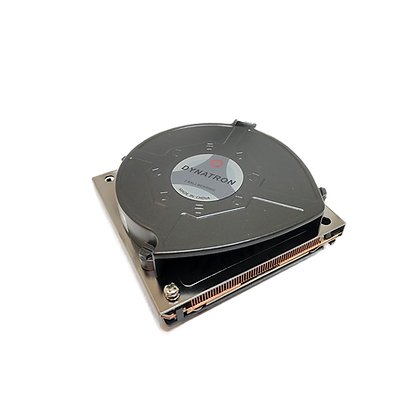

Dynatron B9, Intel S3647 Square ILM, All Copper Heatsink, High Performance Blower Fan, 205W, 1U+ Servers

DynatronB9
Dynatron B9, Intel S3647 Square ILM, All Copper Heatsink, High Performance Blower Fan, 205W, 1U+ Servers
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?
CPU Support

Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake)

CPU Socket

FCLGA 3647 Square ILM

Solution

1U Server and Up

Dimensions

93 x 90.5 x 28 mm

Weight

470 g

Material

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension

Ø90 x 15 mm

Speed

At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2500 ± 10% RPM
At Duty Cycle 100%: 5000 ± 10% RPM

Rated Voltage

12V

Bearing

Ball Type, Double

Power

At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.6 W
At Duty Cycle 100%: 12 W

Air Flow

At Duty Cycle 20%: 6.8 CFM
At Duty Cycle 50%: 11.0 CFM
At Duty Cycle 100%: 19.0 CFM

Noise Level

At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 31.5 dBA
At Duty Cycle 100%: 46.4 dBA

Air Pressure

At Duty Cycle 20%: 2.8 mm-H2O
At Duty Cycle 50%: 18 mm-H2O
At Duty Cycle 100%: 46 mm-H2O

Lead Wire Pin Out

Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
