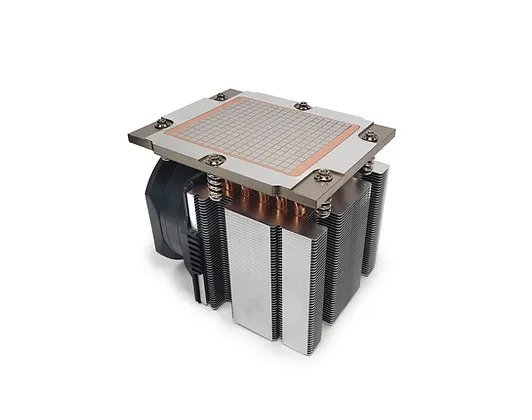

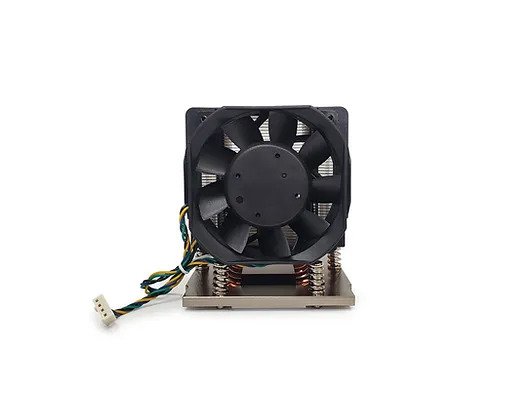

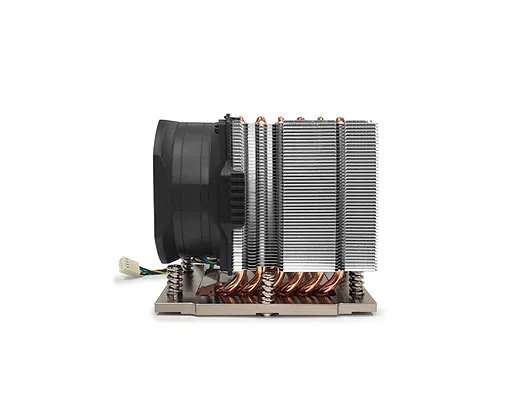

Dynatron J12, AMD SP5 4th Gen, Direct Contact Heatpipes, 80mm Dual Ball Bearing Fan, 320W, 3U+ Servers

CPU Support

AMD®

CPU Socket

Genoa®, Socket SP5

Solution

3U Server and Up

Dimensions

118.0 x 92.4 x 105.0 mm

Weight

798 g

Material

Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink Base

Fan Dimension

80 x 80 x 38 mm

Speed

At Duty Cycle 20%: 2400 ± 200 RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM

Rated Voltage

12V

Bearing

Double Ball

Power

At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W

Air Flow

At Duty Cycle 0~20%: 32.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM

Noise Level

At Duty Cycle 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA

Air Pressure

At Duty Cycle 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
