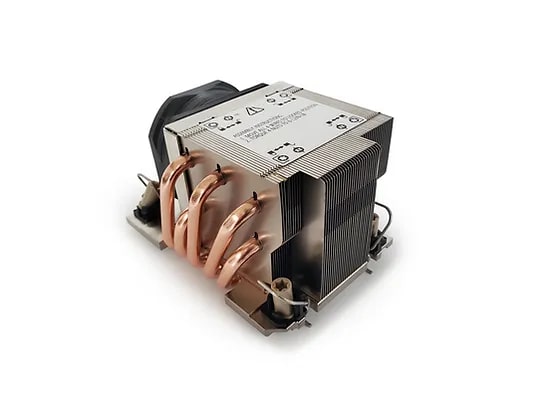

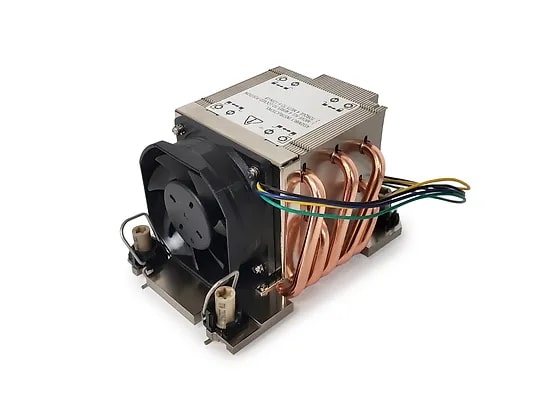

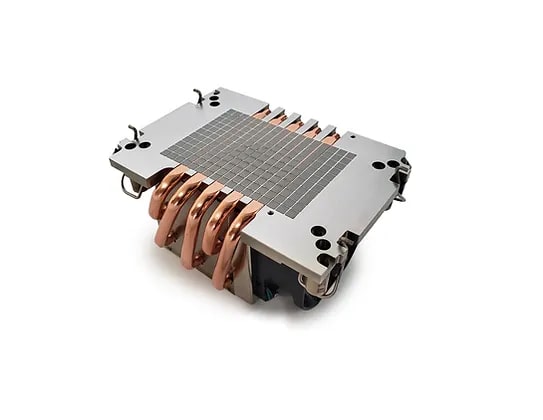

Dynatron S5R1, Intel s4677 Xeon 4th Gen, Al/Cu, 5x Direct Contact Heatpipes, 60mm Dual Ball Bearing Fan, 350W, 2U+ Servers

DynatronS5R1
Dynatron S5R1, Intel s4677 Xeon 4th Gen, Al/Cu, 5x Direct Contact Heatpipes, 60mm Dual Ball Bearing Fan, 350W, 2U+ Servers
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?
Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for only £8.62* on 23rd Apr 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Product Description

CPU Support

Intel

CPU Socket

FCLGA 4677

Solution

2U Server and Up

Dimensions

118 x 82 x 67 mm

Weight

490 ±10 g

Material

5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 0~20%: 2300± 200 RPM

At Duty Cycle 50%: 5400± 10% RPM

At Duty Cycle 100%: 11000±10% RPM

Rated Voltage

12V

Bearing

Double Ball

Power

At Duty Cycle 0~20%: 0.84 W

At Duty Cycle 50%: 2.76 W

At Duty Cycle 100%: 18.0 W

Air Flow

At Duty Cycle 0~20%: 11.91 CFM

At Duty Cycle 50%: 28.38 CFM

At Duty Cycle 100%: 58.31 CFM

Noise Level

At Duty Cycle 0~20%: 25.8 dBA

At Duty Cycle 50%: 44.4 dBA

At Duty Cycle 100%: 59.8 dBA

Air Pressure

At Duty Cycle 0~20%: 1.48 mm-H2O

At Duty Cycle 50%: 7.54 mm-H2O

At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
