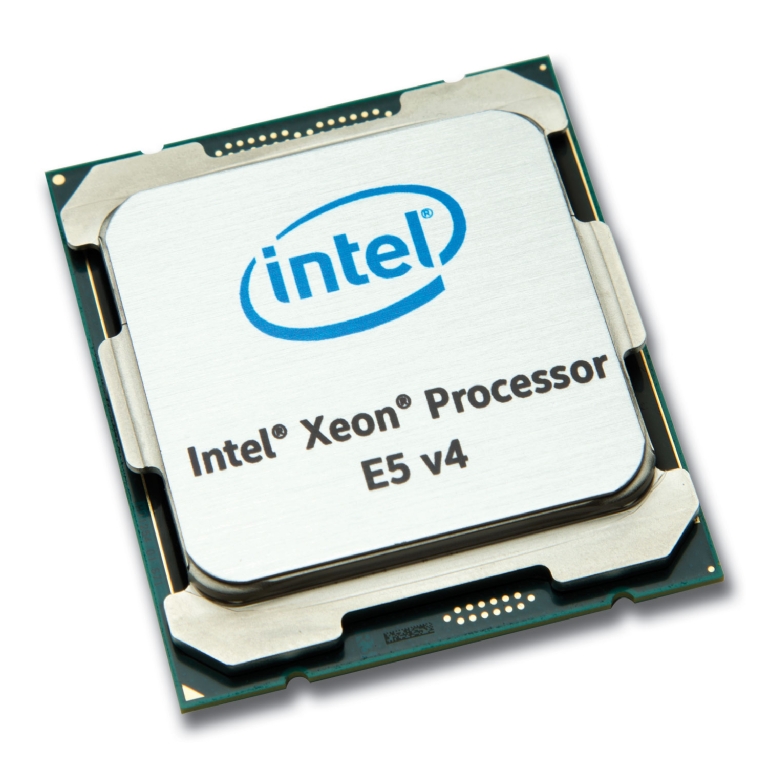

Intel Xeon E5-2660 v4, S 2011-3, Broadwell-EP, 14 Core, 2GHz, 3.2GHz Turbo, 35MB, 40 Lane, 9.6GT/s QPI, 105W, Retail
BX80660E52660V4
Intel Xeon E5-2660 v4, S 2011-3, Broadwell-EP, 14 Core, 2GHz, 3.2GHz Turbo, 35MB, 40 Lane, 9.6GT/s QPI, 105W, Retail
£1,189.90
ex. VAT
(£1,427.88
inc. VAT)
This product is currently out of stock.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Product info
Specifications
|
-
Performance |
||
| # of Cores | 14 | |
| # of Threads | 28 | |
| Processor Base Frequency | 2.00 GHz | |
| Max Turbo Frequency | 3.20 GHz | |
| Cache | 35 MB | |
| Bus Speed | 9.6 GT/s QPI | |
| # of QPI Links | 2 | |
| TDP | 105 W | |
|
-
Supplemental Information |
||
Embedded Options Available
 |
No | |
| Conflict Free | Yes | |
| Datasheet | Link | |
|
-
Memory Specifications |
||
| Memory Types | DDR4 1600/1866/2133/2400 | |
| Max # of Memory Channels | 4 | |
| Max Memory Bandwidth | 76.8 GB/s | |
| Physical Address Extensions | 46-bit | |
| ECC Memory Supported ‡
|
Yes | |
|
-
Graphics Specifications |
||
| Processor Graphics ‡ | None | |
|
-
Expansion Options |
||
| Scalability | 2S | |
| PCI Express Revision | 3.0 | |
| PCI Express Configurations ‡ | x4, x8, x16 | |
| Max # of PCI Express Lanes | 40 | |
|
-
Package Specifications |
||
| Sockets Supported | FCLGA2011-3 | |
| Max CPU Configuration | 2 | |
| TCASE | 79°C | |
| Package Size | 45mm x 52.5mm | |
| Low Halogen Options Available | See MDDS | |
|
-
Advanced Technologies |
||
| Intel® Turbo Boost Technology ‡ | 2.0 | |
| Intel® vPro Technology ‡
|
Yes | |
| Intel® Hyper-Threading Technology ‡
|
Yes | |
| Intel® Virtualization Technology (VT-x) ‡ | Yes | |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡
|
Yes | |
| Intel® VT-x with Extended Page Tables (EPT) ‡
|
Yes | |
| Intel® TSX-NI | Yes | |
| Intel® 64 ‡
|
Yes | |
| Instruction Set | 64-bit | |
| Instruction Set Extensions | AVX 2.0 | |
| Idle States | Yes | |
| Enhanced Intel SpeedStep® Technology
|
Yes | |
| Intel® Demand Based Switching
|
Yes | |
| Thermal Monitoring Technologies | Yes | |
| Intel® Flex Memory Access | No | |
| Intel® Identity Protection Technology ‡ | No | |
|
-
Intel® Data Protection Technology |
||
| Intel® AES New Instructions
|
Yes | |
| Secure Key | Yes | |
|
-
Intel® Platform Protection Technology |
||
| OS Guard | Yes | |
| Trusted Execution Technology ‡
|
Yes | |
| Execute Disable Bit ‡ | Yes | |
Sorry there are no compatible products listed. Please contact us to discuss options available for this product.
Product downloads
There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
