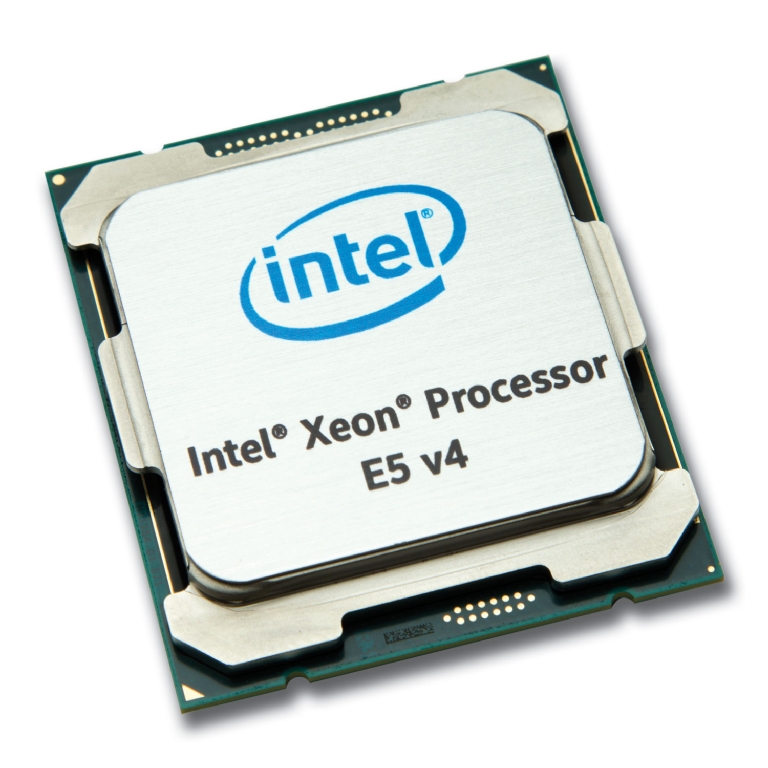

Intel Xeon E5-2695 v4, S 2011-3, Broadwell-EP, 18 Core, 2.1GHz, 3.3GHz Turbo, 45MB, 40 Lane, 9.6GT/s QPI, 120W, Retail

BX80660E52695V4
Intel Xeon E5-2695 v4, S 2011-3, Broadwell-EP, 18 Core, 2.1GHz, 3.3GHz Turbo, 45MB, 40 Lane, 9.6GT/s QPI, 120W, Retail
£2,160.67
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity



Specifications


-
Performance
# of Cores 18
# of Threads 36
Processor Base Frequency 2.10 GHz
Max Turbo Frequency 3.30 GHz
Cache 45 MB SmartCache
Bus Speed 9.6 GT/s QPI
# of QPI Links 2
TDP 120 W
VID Voltage Range 0
-
Supplemental Information
Embedded Options Available Yes
Conflict Free Yes
Datasheet Link
-
Memory Specifications
Max Memory Size (dependent on memory type) 1.54 TB
Memory Types DDR4 1600/1866/2133/2400
Max # of Memory Channels 4
Max Memory Bandwidth 76.8 GB/s
Physical Address Extensions 46-bit
ECC Memory Supported Yes
-
Graphics Specifications
Processor Graphics None
-
Expansion Options
Scalability 2S
PCI Express Revision 3.0
PCI Express Configurations x4, x8, x16
Max # of PCI Express Lanes 40
-
Package Specifications
Sockets Supported FCLGA2011-3
Max CPU Configuration 2
TCASE 84°C
Package Size 45mm x 52.5mm
Low Halogen Options Available See MDDS
-
Advanced Technologies
Intel® Turbo Boost Technology 2.0
Intel® vPro Technology Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® TSX-NI Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions AVX 2.0
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Intel® Demand Based Switching Yes
Thermal Monitoring Technologies Yes
Intel® Flex Memory Access No
Intel® Identity Protection Technology No
-
Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
-
Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology Yes
Execute Disable Bit Yes
