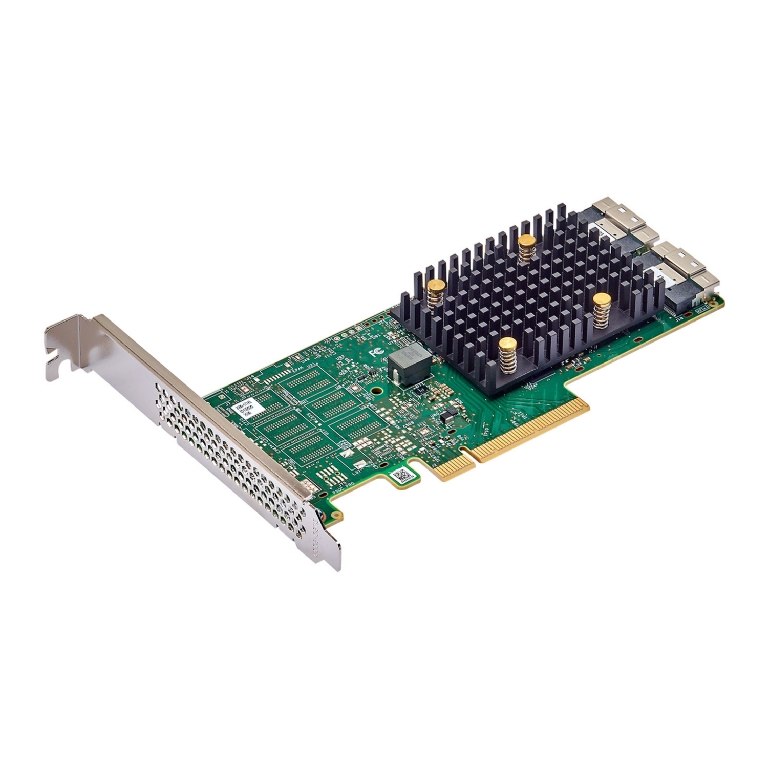

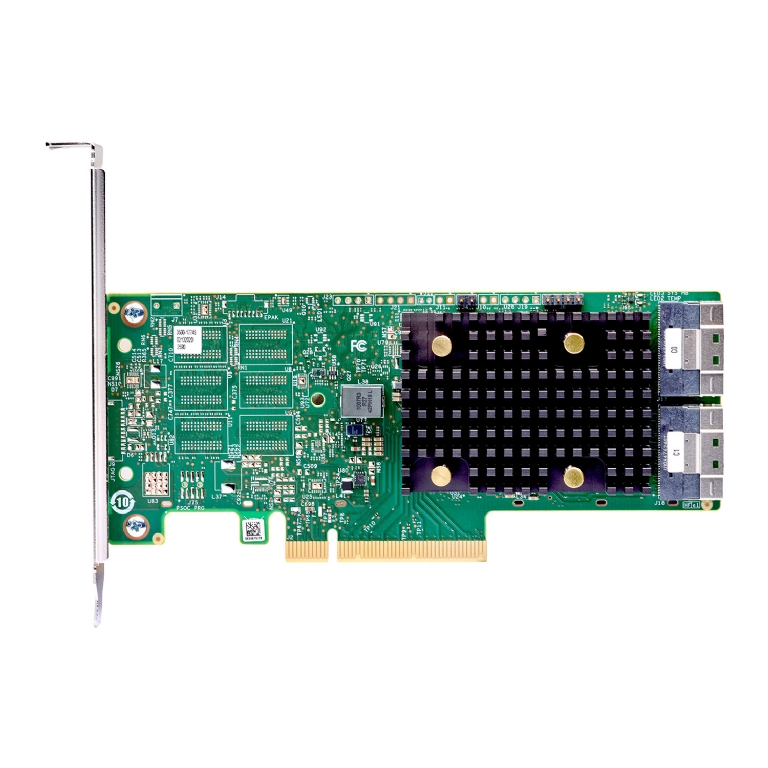

Broadcom 9500-16i HBA Tri-Mode Storage Adapter, 16 Internal Ports, 2 x8 SFF-8654, x8 PCIe Gen 4.0, 8.9W
05-50077-02
Broadcom 9500-16i HBA Tri-Mode Storage Adapter, 16 Internal Ports, 2 x8 SFF-8654, x8 PCIe Gen 4.0, 8.9W
£583.65
ex. VAT
(£700.38
inc. VAT)
This product is currently out of stock.This product is ordered upon request on a Ordered On Request lead-time.
Product Description
Features
- Port Count: 16 internal.
- Connectors: Two x8 SFF-8654.
- Host Interface: x8 PCIe Gen 4.0.
- Storage Interface: 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe).
- LSI Storage Authority (LSA).
- StorCLI (command-line interface).
- HII (UEFI Human Interface Infrastructure).
- OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD.
- Dimensions: 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm).
- Operating: 0°C to 55°C, 5% to 90% non-condensing.
- Storage: -45°C to +105°C, 5% to 95% non-condensing.
- Typical Power: 8.9W.
- Operating Voltage: 12V ±8%; 3.3V ±9%.
- MTBF (Calculated): > 5,000,000 hours at 40°C.
- Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 and 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE.
| Ports Internal | 16 Int Ports |
| Ports External | 0 Ext Ports |
| Interface | PCIe 4.0 x8 |
| JBOD | No |
| RAID Support | N/A |
