Supermicro Add-on Card AOC-SAS2LP-MV8

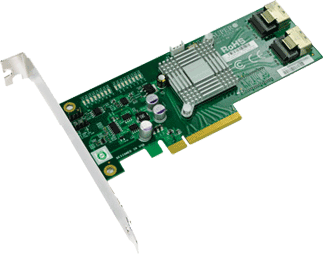

Supermicro's SAS2LP-MV8 controller (based on the Marvell 9480 host controller) provides 8-port SAS/SATA HDD support via PCI-E by 8 bus interface with high-performance features. Serving as a 3rd generation SAS/SATA storage card, the AOC-SAS2LP-MV8 offers double the data transfer rate of its 1st generation counterpart and offers functionalities for server, workstation and network storage environments in a low-profile PCI platform.

The SAS2LP-MV8 is ideal for storage arrays for Network Attached Storage (NAS) and Nearline Backup. Built with superior quality and features, the SAS2LP-MV8 will become an integral part of today's data storage solutions.

The SAS2LP-MV8 Installation CD contains drivers for Microsoft Windows and RedHat/SuSE/Fedora Linux operating systems.

Key Features
• 8-channel SAS/SATA adapter with 600MB/s per channel
• PCI-E x8 interface
• JBOD mode only. No RAID support
• Dimension: 6.6" (length) x 2.7" (width)
Other Features
Benefit Affordable, easy-install, eight-port SAS/SATA Card
Key Application Storage arrays for Network Attached Storage (NAS) and Nearline Backup
Device Support Up to 8 SAS/SATA disk drives, activity LED indicated for each drive (LED cables not included)
Data Transfer Rates Up to 6.0 Gigabits/sec per port
Bus Type PCI-E x8 Gen 2
Internal Connectors 2 SFF 8087 connectors
Warranty 2 Years Limited Warranty
Operating Systems
Supported Operating Systems • Windows 2003, 2008 and Vista
• RedHat Enterprise Linux
• Fedora Linux 9
• SuSE Linux Enterprise
• CentOS
