Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry.

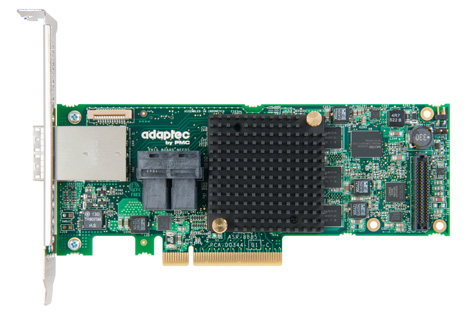

The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.
Specifications
General Information | |
Manufacturer | Adaptec, Inc |
Manufacturer Part Number | 2277000-R |
Manufacturer Website Address | http://www.adaptec.co.uk |
Brand Name | Adaptec |
Product Series | 8 |
Product Model | 8885 |
Product Name | Series 8 RAID Adapters |
Marketing Information |
Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry. The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor. |
Product Type | SAS Controller |
Technical Information | |
Host Interface | PCI Express 3.0 x8 |
Controller Type | 12Gb/s SAS |
RAID Supported | Yes |
RAID Levels | 0 |
RAID Levels | 1 |
RAID Levels | 1E |
RAID Levels | 5 |
RAID Levels | 6 |
RAID Levels | 10 |
RAID Levels | 50 |
RAID Levels | 60 |
Interfaces/Ports | |
Total Number of SAS Ports | 16 |
Physical Characteristics | |
Height | 64.4 mm |
Width | 167.6 mm |
Form Factor | Plug-in Card |
Miscellaneous | |
Green Compliant | Yes |
Green Compliance Certificate/Authority | RoHS |
