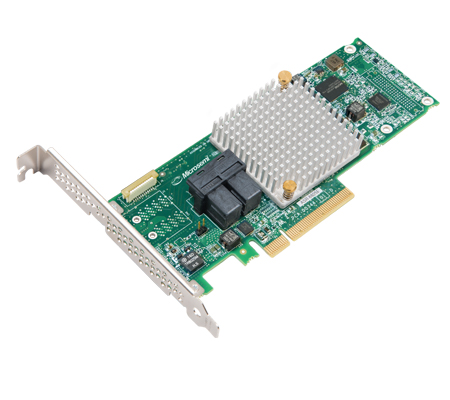

Adaptec RAID 8805E - storage controller (RAID) - SAS 12Gb/s - PCIe 3.0 x8
2294001-RPlease contact us to discuss alternative products which may be suitable.
The Microsemi Adaptec RAID 8805E entry-level, 12 Gbps SAS/SATA RAID adapter delivers affordable true Hardware RAID with performance acceleration that outperforms software-based HBAs and SATA adapters. With 8 internal ports; support for RAID levels 0, 1, 10; PCIe Gen3 interface; a low profile MD2 form factor; 512MB on-board DRAM; Adaptec RAID Code (ARC), enterprise -class management features and full OS support the 8405E RAID adapter offers the ideal price/performance and connectivity solution for entry-level server platforms, workstations and desktop systems.
Microsemi Adaptec RAID 8805E - Storage controller (RAID) - 8 Channel - SAS 12Gb/s low profile - 1200 MBps - RAID 0, 1, 10 - PCIe 3.0 x8
Basic Specifications
- Manufacturer's Part Number
- 2294001-R
- EAN
- 0760884157831
- Product Description
- Microsemi Adaptec RAID 8805E - storage controller (RAID) - SAS 12Gb/s - PCIe 3.0 x8
- Device Type
- Storage controller (RAID) - plug-in card - low profile
- Dimensions (WxDxH)
- 16.7 cm x 6.4 cm
- Manufacturer Warranty
- 3 years warranty
- Data Transfer Rate
- 1200 MBps
- System Requirements
- SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Linux Fedora
- Interface
- SAS 12Gb/s
- Buffer Size
- 512 MB
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 10
- Supported Devices
- Hard drive, disk array (RAID)
- Model
- Microsemi Adaptec RAID 8805E
- Bus Type
- PCIe 3.0 x8
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Linux Fedora
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
Miscellaneous
- Included Accessories
- Low-profile bracket
- MTBF
- 2000000 hours
- Compliant Standards
- UL, VCCI, C-Tick, FCC, RoHS, KCC
General
- Device Type
- Storage controller (RAID) - plug-in card - low profile
- Host Bus
- PCIe 3.0 x8
Expansion / Connectivity
- Interfaces
- 2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) (internal)
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Storage Controller
- Interface
- SAS 12Gb/s
- Data Transfer Rate
- 1200 MBps
- Buffer Size
- 512 MB
- Supported Devices
- Hard drive, disk array (RAID)
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 10
Dimensions & Weight
- Depth
- 16.7 cm
- Height
- 6.4 cm
