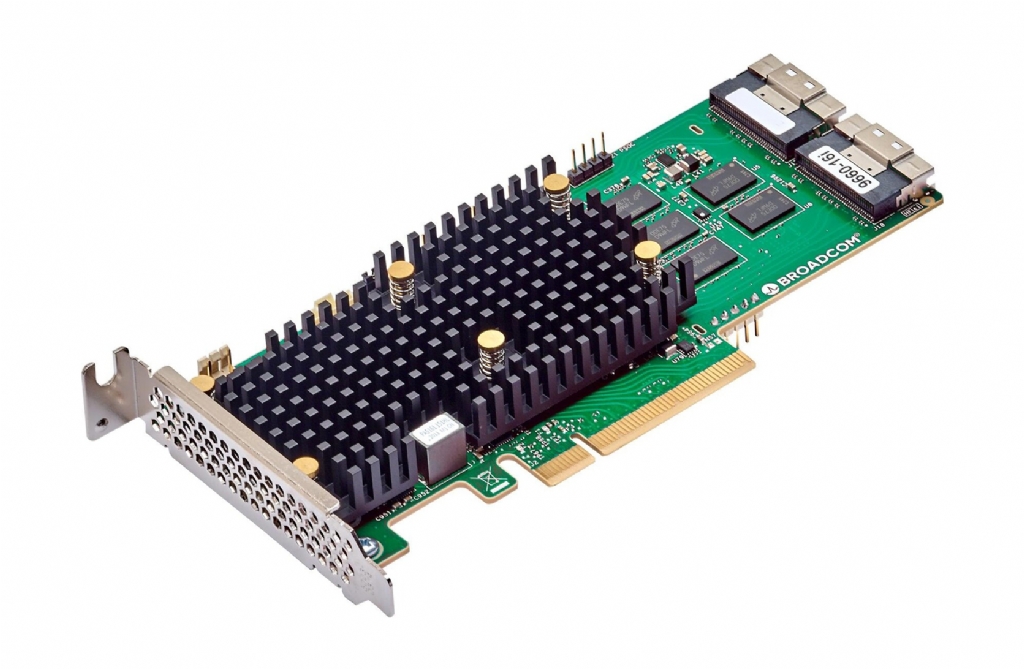

Broadcom MegaRAID 9660-16i Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID 0, 1, 5, 6, 10, 50, 60
05-50107-00
Broadcom MegaRAID 9660-16i Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID 0, 1, 5, 6, 10, 50, 60
£762.59
ex. VAT
(£915.10
inc. VAT)
Hurry, only 3 left in stock
Great news, we have 3 of this product in stock. Available for next working day delivery.
Want it delivered by 30th Jul 2024? Order within 5 Hours and 46 minutes and get it delivered the next working day as standard.
Want it delivered by 30th Jul 2024? Order within 5 Hours and 46 minutes and get it delivered the next working day as standard.
Hour
Min
Sec
Order this product before 4.30pm today and get it delivered for only £9.20* on 30th Jul 2024.
* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.
Product Description
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Cache Memory | 4GB |
| Cache Protection | CacheVault CVPM05 |
| Connectors | 2x8 SFF-8654 |
| Devices Supported | SAS/SATA: 240, NVMe: 32 |
| Generation | 24G |
| Host Interface | x8, Gen 4.0 |
| Internal Ports | 16 |
| Management Software | LSI Storage Authority (LSA), StorCLI2 (Command-Line Interface), HII (UEFI Human Interface Infrastructure |
| MTBF | >3,000,000 hours at 40° C |
| OCP Thermal Tier | Tier 4 |
| Operating Humidity | 5% to 90% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD, Linux (Oracle, SuSE, Red Hat) |
| Physical Dimensions | 155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Regulatory Certifications | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE |
| Typical Power | 20W |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
Reviews
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
Write a Review
Compatible Products
Components
Broadcom 05-60004-00

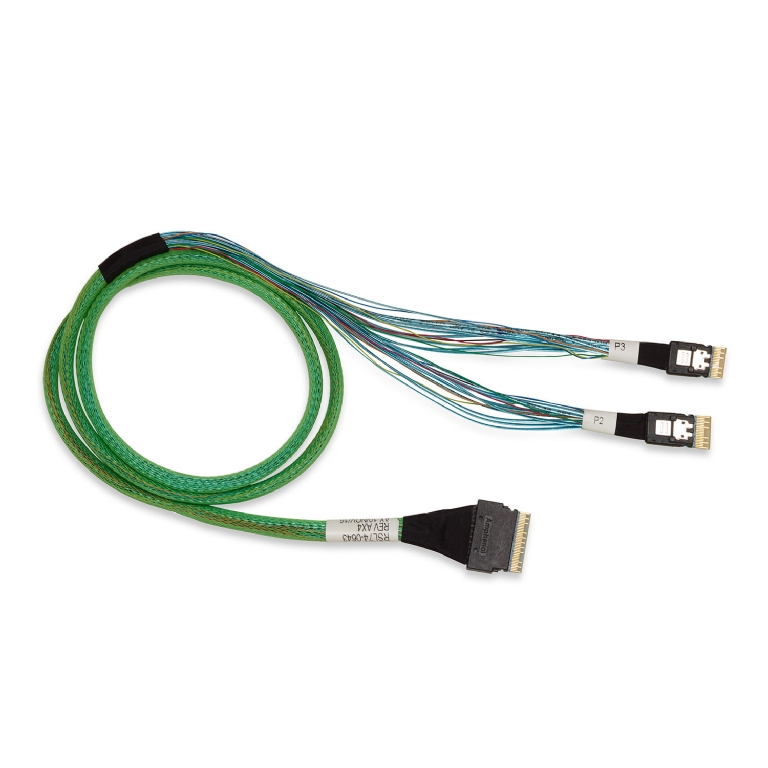

1m Broadcom 05-60004-00 Slim SAS x8 SFF-8654 to Two x4 SFF8654 Slim SAS Cable
£113.33
Ex. VAT
Ex. VAT
£136.00
Inc. VAT
Inc. VAT
£98.09
Ex. VAT
Ex. VAT
£117.70
Inc. VAT
Inc. VAT
Components
Broadcom L5-25376-00

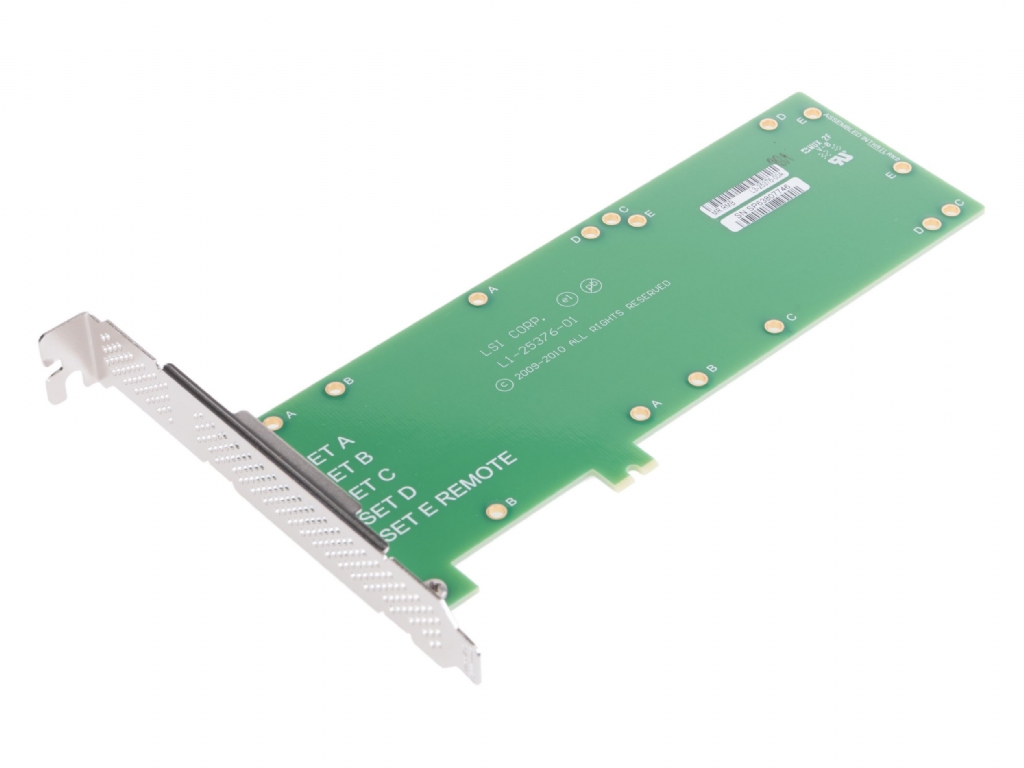

Broadcom BBU-BRACKET-05 for SuperCap and Battery Modules - Full Height and Low Profile Brackets Included
£36.99
Ex. VAT
Ex. VAT
£44.39
Inc. VAT
Inc. VAT
£150.59
Ex. VAT
Ex. VAT
£180.71
Inc. VAT
Inc. VAT
Downloads
Product downloads
There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
