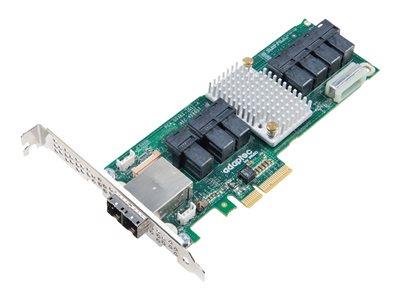

Adaptec 82885T SAS Expander Card
2283400-RPlease contact us to discuss alternative products which may be suitable.
The Adaptec 82885T SAS expander card offers a scalable connectivity/fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers ports in a low-profile MD2 form factor with internal ports for connection to a SAS adapter and/or SAS or SATA drives and external ports for optional connections to external JBODs or a SAS adapter.
Summary
- Product Description
- Microsemi Adaptec 82885T - storage SAS bus extender - SATA 6Gb/s / SAS 12Gb/s - PCIe x4
- Device Type
- Storage SAS bus extender - plug-in card - low profile
- Bus Type
- PCIe x4
- Interface
- SATA 6Gb/s / SAS 12Gb/s
- Data Transfer Rate
- 1.2 GBps
- Supported Devices
- Hard drive, solid state drive
- Channel Qty
- 36
- Dimensions (WxDxH)
- 16.7 cm x 6.4 cm
- Manufacturer Warranty
- 3 years warranty
Detail
General
- Device Type
- Storage SAS bus extender - plug-in card - low profile
- Host Bus
- PCIe x4
Storage Controller
- Interface
- SATA 6Gb/s / SAS 12Gb/s
- Data Transfer Rate
- 1.2 GBps
- Supported Devices
- Hard drive, solid state drive
- Channel Qty
- 36
Expansion / Connectivity
- Interfaces
- 7 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal ) , 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Shielded Mini MultiLane SAS (SFF-8644) ( external )
Miscellaneous
- MTBF
- 1,000,000 hour(s)
- Compliant Standards
- UL, VCCI, C-Tick, FCC, RoHS, KCC
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Depth
- 16.7 cm
- Height
- 6.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
