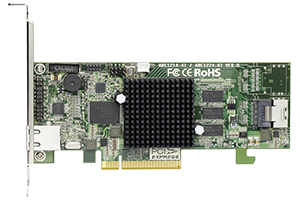

ARC-1214-4I/1224-8I(4/8-Port PCIe 2.0 to SATA lll RAID Adapters)
ARC-12x4 internal PCIe 2.0 host RAID controllers are a cost-effective solutions for connecting up to 4/8 6Gb/s SATA peripheral devices. The RAID controllers are based on the same RAID kernel of field-proven internal/external RAID controller and same device driver architecture with widely used 3Gb/s and 6Gb/s SAS/SATA RAID controller. Applications that benefit most features from these controllers include NAS, server RAID solutions, web servers, near-line backup, security systems and streaming applications. ARC-1214-4I/1224-8I support directly attached 4/8 internal 6Gb/s SATA ports via 1/2 SFF-8087 connector.
ARECA PCI-Express RAID Card Comparison
|
||
Model Name |
ARC-1214-4I
|
ARC-1224-8I
|
I/O Processor |
ARM-based storage I/O processor
|
|
Host Bus Type |
PCIe 2.0 x8 Lanes
|
|
Drive Connector |
1xSFF-8087
|
2xSFF-8087
|
Drive Support |
Up to 4 x 6Gb/s SATA HDDs/SSD
|
Up to 8 x 6Gb/s SATA HDDs/SSD
|
RAID Level |
0, 1, 1E, 3, 5, 6, 10, Single Disk, and JBOD
|
0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk, and JBOD
|
On-Board Cache |
1GB on-board SDRAM with ECC
|
|
Management Port |
In-Band: PCIe |
|
Enclosure Ready |
Individual Activity/Faulty Header, Serial Bus and SGPIO
|
Adapter Architecture | ||||||||||||||||
|
ARM storage I/O processor | |||||||||||||||
![]() |
1GB on-board SDRAM with ECC | |||||||||||||||
![]() |
PCIe 2.0 x8 lanes host interface | |||||||||||||||
![]() |
Support up to 4/8 internal 6Gb/s SATA physical links | |||||||||||||||
![]() |
ARC-1214-4I supports up to 4 x 6Gb/s SATA HDDs | |||||||||||||||
![]() |
ARC-1224-8I supports up to 8 x 6Gb/s SATA HDDs | |||||||||||||||
![]() |
Multi-adapter support for large storage requirements | |||||||||||||||
![]() |
BIOS boot support for greater fault tolerance | |||||||||||||||
![]() |
BIOS PnP (plug and play) and BBS (BIOS boot specification support |
|||||||||||||||
![]() |
Support EFI BIOS for Mac Pro | |||||||||||||||
![]() |
NVRAM for RAID event & transaction log | |||||||||||||||
![]() |
Redundant flash image for controller availability | |||||||||||||||
![]() |
Battery Backup Module (BBM) ready (Optional) |
|||||||||||||||
![]() |
RoHS compliant | |||||||||||||||
RAID Features | ||||||||||||||||
![]() |
RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD | |||||||||||||||
![]() |
Multi-level RAID 0 and RAID 10 (R00 and R100) | |||||||||||||||
![]() |
Support up to 1MB stripe size | |||||||||||||||
![]() |
Multiple RAID selection | |||||||||||||||
![]() |
Online array roaming | |||||||||||||||
![]() |
Online RAID level/stripe size migration | |||||||||||||||
![]() |
Online capacity expansion and RAID level migration simultaneously | |||||||||||||||
![]() |
Online volume set growth | |||||||||||||||
![]() |
Instant availability and background initialization | |||||||||||||||
![]() |
Support global and dedicated hot spare | |||||||||||||||
![]() |
Automatic drive insertion/removal detection and rebuilding | |||||||||||||||
![]() |
Greater than 2TB capacity per disk drive support | |||||||||||||||
![]() |
Greater than 2TB per volume set (64-bit LBA support) | |||||||||||||||
![]() |
Support intelligent power management to save energy and extend service life |
|||||||||||||||
![]() |
Multiple pairs SSD/HDD disk clone function | |||||||||||||||
![]() |
SSD automatic monitor clone (AMC) support | |||||||||||||||
Monitors/Indicators | ||||||||||||||||
![]() |
System status indication through global HDD activity/fault connector, individual fault connector, LCD/serial bus connector and alarm buzzer | |||||||||||||||
![]() |
SMTP support for email notification | |||||||||||||||
![]() |
SNMP support for remote manager | |||||||||||||||
![]() |
Enclosure management (Serial bus and SGPIO) ready | |||||||||||||||
RAID Management | ||||||||||||||||
![]() |
Field-upgradeable firmware in flash ROM | |||||||||||||||
In-Band Manager | ||||||||||||||||
![]() |
Hot key "boot-up" McBIOS RAID manager via M/B BIOS | |||||||||||||||
![]() |
Web browser-based McRAID storage manager via ArcHttp proxy server for all operating systems | |||||||||||||||
![]() |
Support Command Line Interface (CLI) | |||||||||||||||
![]() |
API library for customer to write monitor utility | |||||||||||||||
![]() |
Single Admin Portal (SAP) monitor utility | |||||||||||||||
Out-of-Band Manager | ||||||||||||||||
![]() |
Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent and Telnet function via Ethernet port | |||||||||||||||
![]() |
API library for customer to write monitor utility | |||||||||||||||
![]() |
Support push button and LCD display panel (Optional) | |||||||||||||||
Operating System | ||||||||||||||||
![]() |
Windows 8/2012/7/2008/Vista/XP/2003 | |||||||||||||||
![]() |
Linux | |||||||||||||||
![]() |
FreeBSD | |||||||||||||||
![]() |
VMware (only driver package available w/o management utility) | |||||||||||||||
![]() |
Solaris 10/11 x86/x86_64 | |||||||||||||||
![]() |
Mac OS 10.5.x/10.6.x/10.7.x/10.8.x | |||||||||||||||
Environmental/Physical | ||||||||||||||||
Mechanical | ||||||||||||||||
|
||||||||||||||||
Environmental Specifications | ||||||||||||||||
|
||||||||||||||||
Electrical | ||||||||||||||||
|
||||||||||||||||
