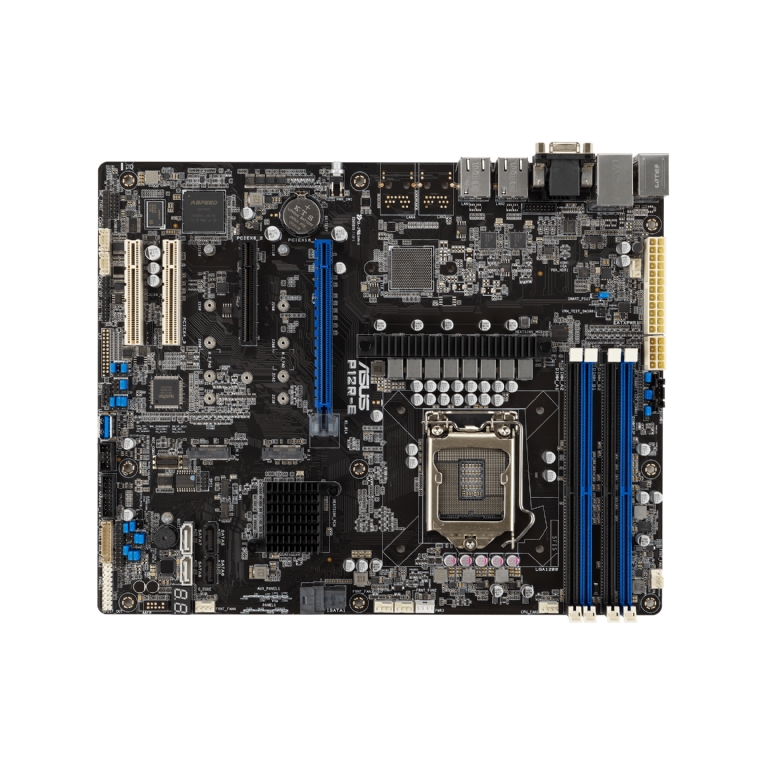

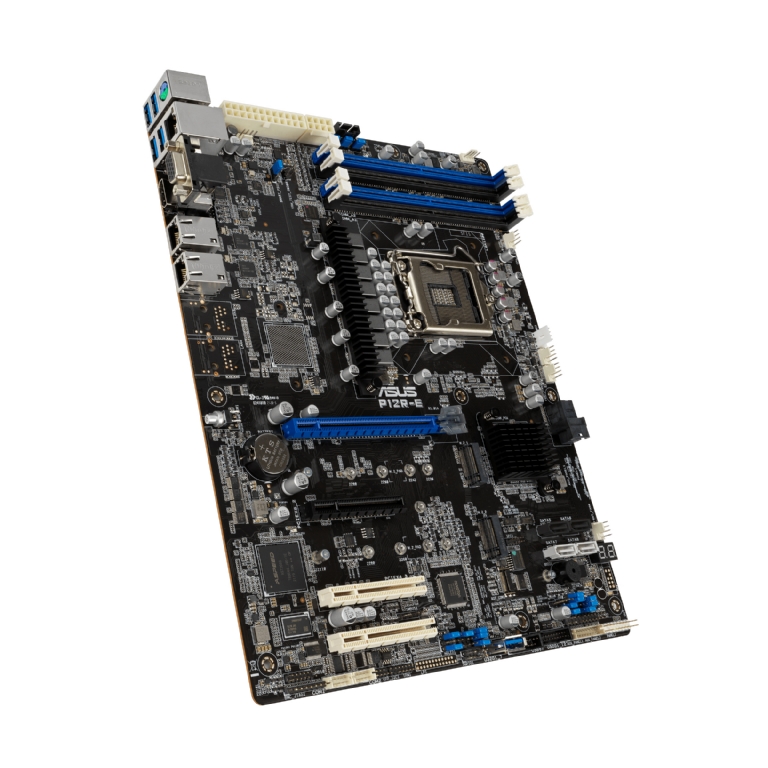

ASUS P12R-E Server Motherboard. Xeon E-2300 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB10 Module

90SB0A90-M1UAY0
ASUS P12R-E Server Motherboard. Xeon E-2300 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB10 Module
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

Submit
Looking for Compatible Products?

Next working day delivery countdown

Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for FREE* on 19th Aug 2022.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Pentium® Processors
    Intel® Xeon® E processors
  • Core Logic

    Intel® C256 Chipset
  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200/2933/2666 UDIMM
    Memory Size :
    32GB, 16GB, 8GB
    * Refer to support page for more information
  • Expansion Slots

    Total Slot : 4
    Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
    Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
  • Form Factor

    ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features

    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASUS Control Center
  • Storage

    Storage Controller :
    8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *

    *Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal

    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic

    Aspeed AST2600 with 64MB VRAM (VGA from BMC)
  • On Board I/O

    1 x VGA Header (VGA from BMC)
    1 x HDMI (useable only with iGPU)
    1 x TPM header
    1 x COM port
    1 x PS/2 KB/MS port
    1 x Onboard header for optional management card
    6 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    1 x Serial Port Header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    2 x M.2 Connector
    2 x USB3.2 Gen2 ports
    2 x USB3.2 Gen1 ports
    1 x USB3.2 Gen1 header

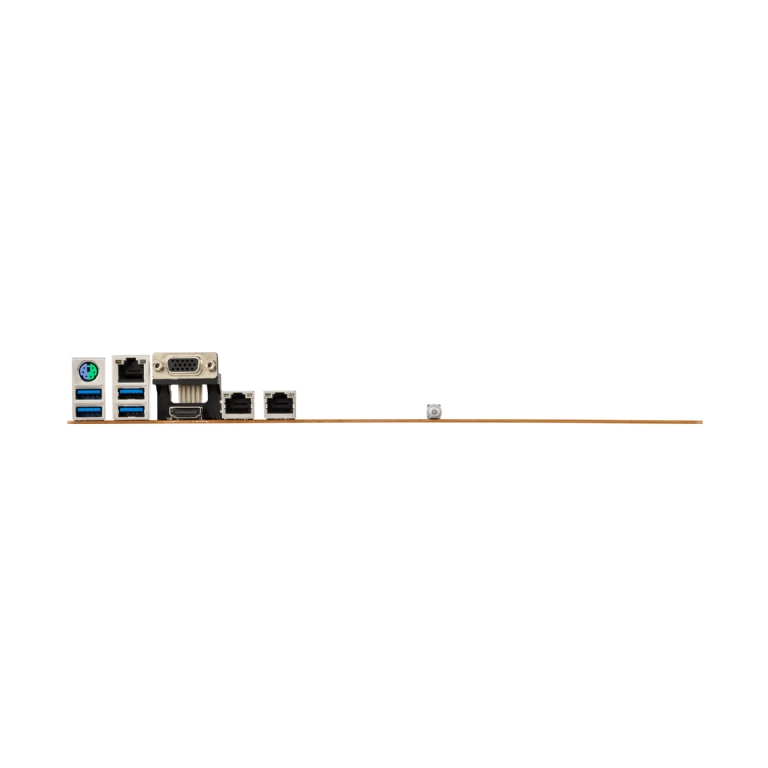

  • Back I/O Ports

    2 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    1 x HDMI Port (useable only with iGPU)
    1 x VGA Port (VGA from BMC)
    2 x GbE LAN + 1 x Mgmt LAN
    1 x PS/2 KB/Mouse
  • Management Solution

    ASUS Control Center Enterprise (Optional)
    ASMB10-iKVM for KVM-over-Internet(Optional)
  • Weight

    Gift Box (1-in-1)
    Net Weight : 0.76 KG
    Gross Weight : 1.3 KG
    Bulk Pack (10-in-1)
    Net Weight : 6.9 KG
    Gross Weight : 9.5 KG
  • Environment

    Operation temperature: 10℃ ~ 50℃*
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)

    *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
  • Accessories

    Gift Box (1-in-1)
    1 x Support CD
    1 x I/O shield
    4 x SATA 6G cables
    1 x Plate for LGA1200
    Bulk Pack (10-in-1)
    1 x Support CD
    1 x I/O shield
    1 x Plate for LGA1200
  • Monitoring

    CPU Temperature
    Fan RPM
