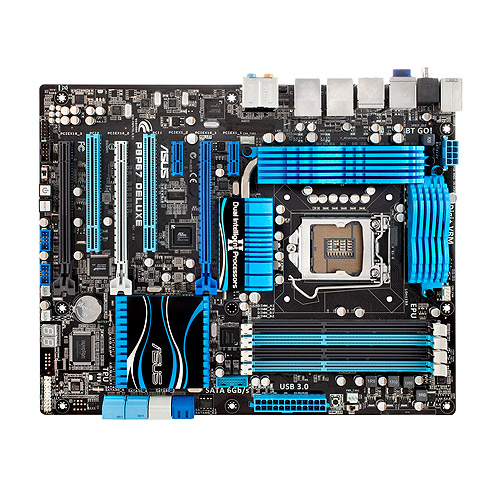

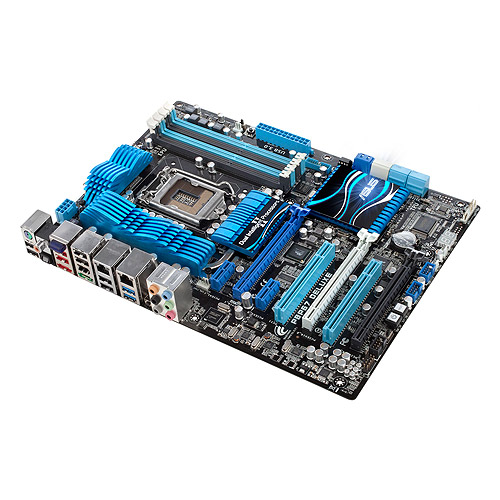

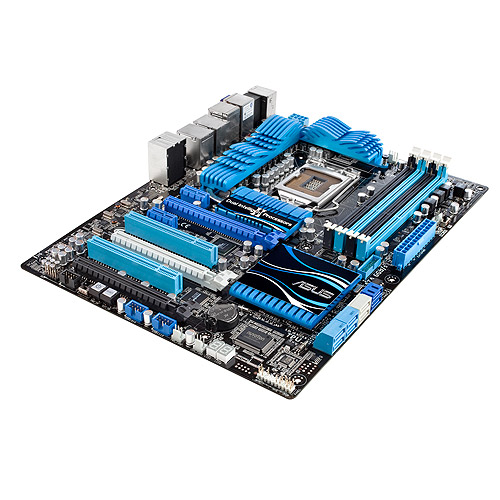

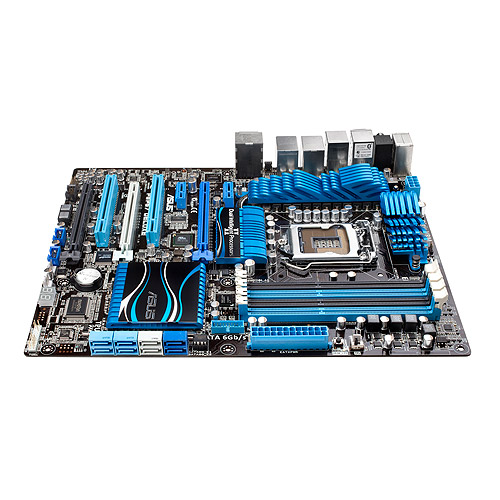

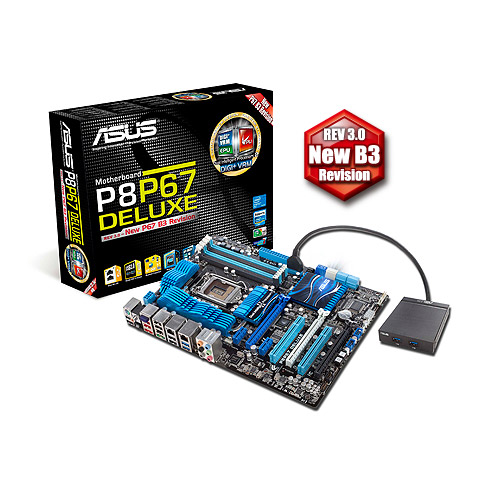

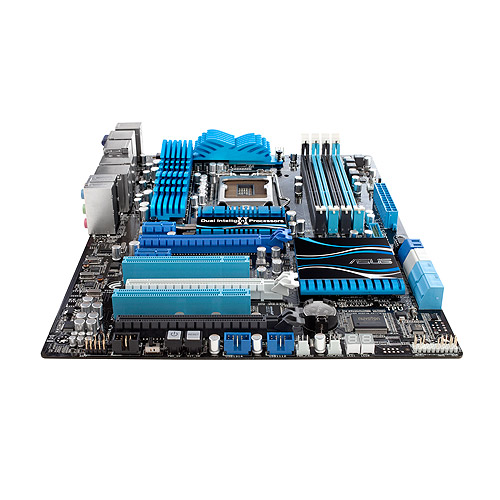

Asus P8p67 Deluxe Lga1155 P67 ATX 4 D3 2400 Sata 6g Raid Sli Fwire USB3

Description

The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). New generation Dual Intelligent Processors 2 with DIGI+ VRM digital power design launch control into a new era.The digital architecture delivers twice the precision power intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. It also adjusts VRM frequencies dynamically cutting radiation interference by half and decreasing Vcore power noise for CPU to enhance system stability through enabling VRM spread spectrum. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance extreme system stability and greater power efficiency.

Specification

• Socket Type: 1155
• Form Factor: ATX
• Chipset: Intel P67
• Onboard Graphics: None
• Graphics interface: PCI e
• Maximum Memory: 4 x DIMM Max. 32 GB DDR3 2200(O.C.)*/2133(O.C.)/1866(O.C.)/1600/1333/1066 Non-ECCUn-buffered Memory
• Expansion Slots: 3 x PCIe 2.0 x16 2 x PCIe 2.0 x1 2 x PCI
• IDE:
• SATA / RAID: 4 x SATa III and 4 x SATA II (RAID) 2 x eSATA
• Audio: 8 Channel High Definition Audio
• Network: Dual GB LAN

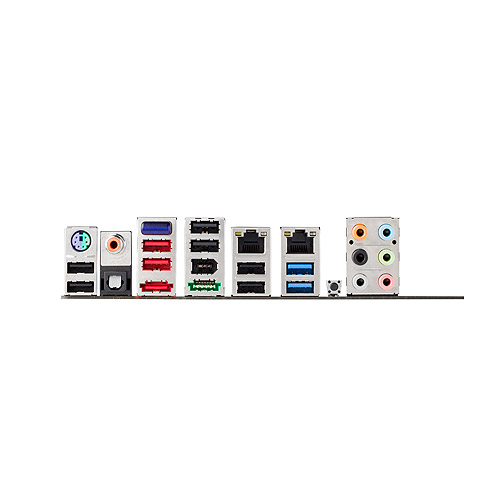

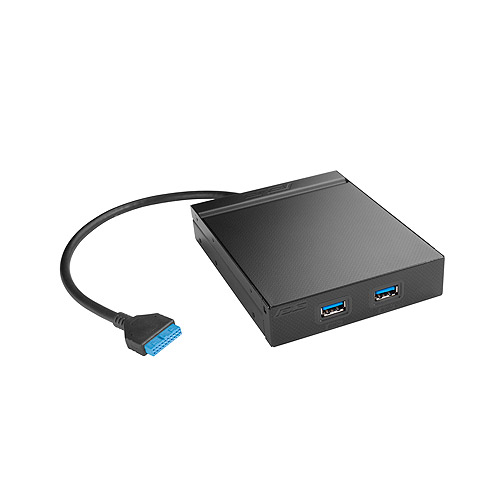

• USB: 4 x USB 3.0/2.0 ports (2 ports at mid-board for front panel support 2 ports at back panel [blue])
• Max Bus Speed:
• Additional Features: See manufacturers link above
