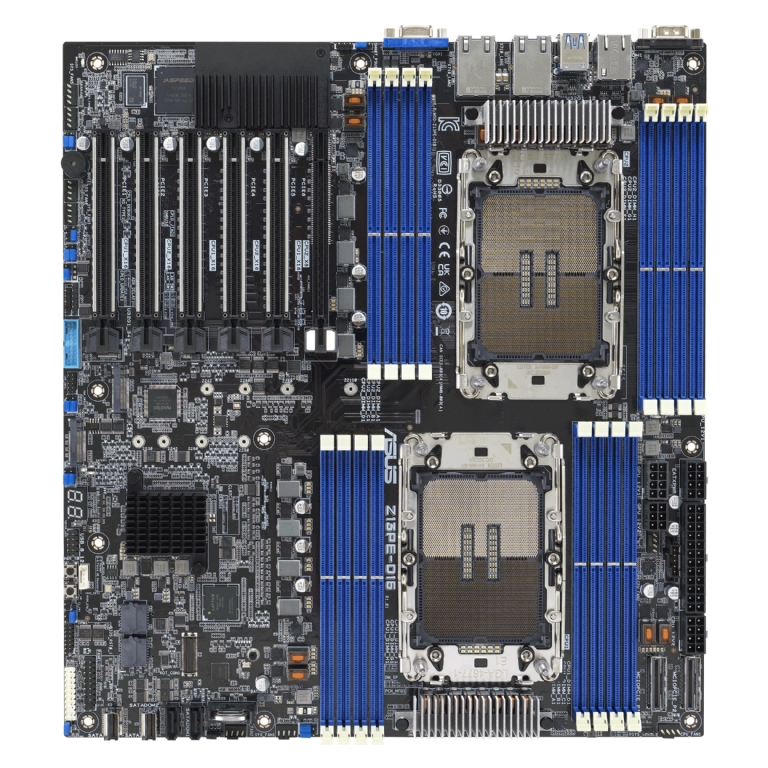

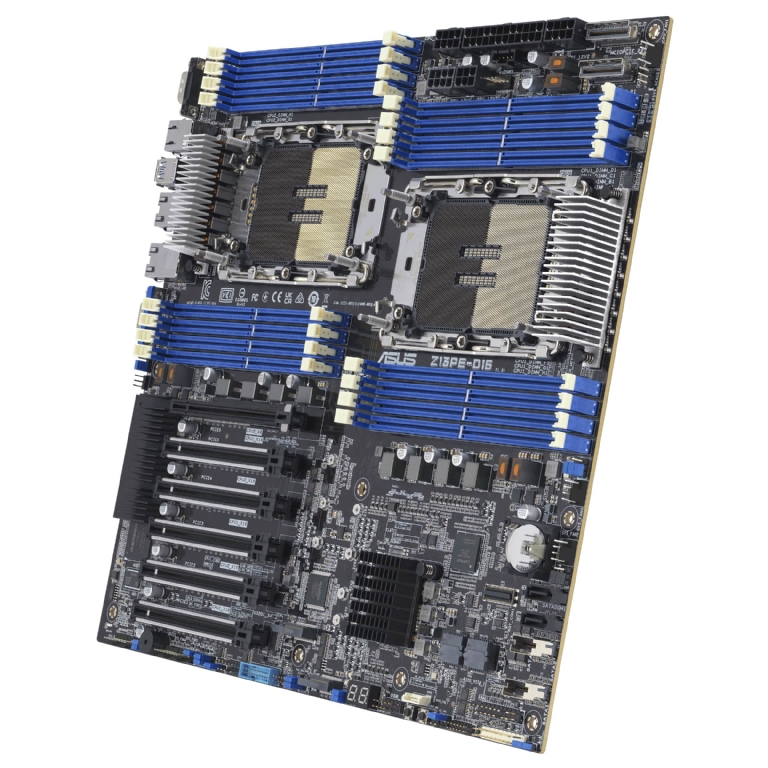

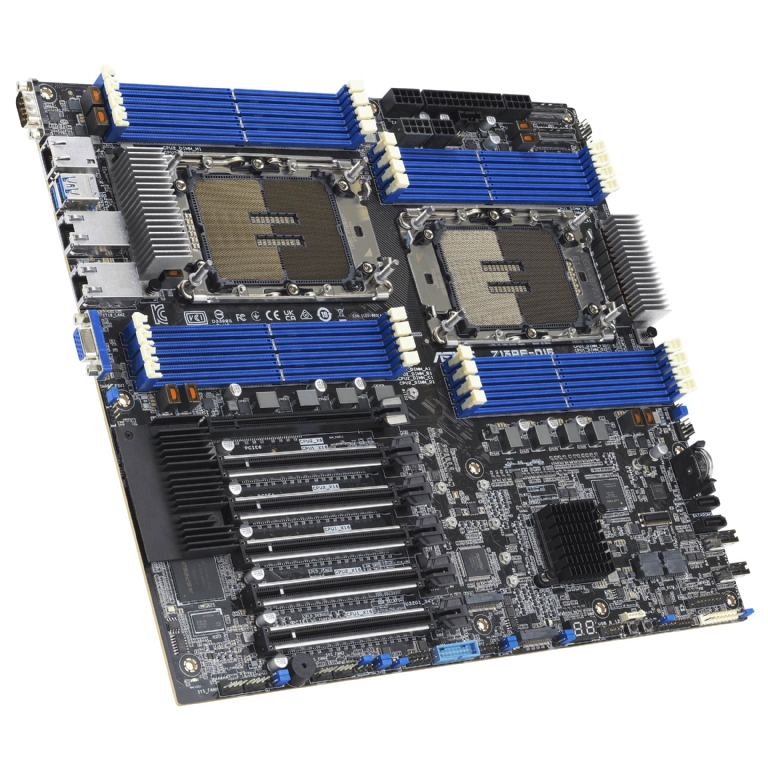

ASUS Z13PE-D16 Server Motherboard. Dual Xeon Scalable 4th/5th Support. Dual 10GbE LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM

90SB0CA0-M0UAY1
ASUS Z13PE-D16 Server Motherboard. Dual Xeon Scalable 4th/5th Support. Dual 10GbE LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    2 x Socket
    Intel® Xeon® Processor Scalable Family (Up to 350W)
  • Core Logic

    Intel® C741 Chipset
  • Memory

    Total Slots :
    16 (8-channel per CPU, 8 DIMM per CPU)
    Capacity :
    Maximum up to 2TB per CPU socket
    Memory Type :
    4th: 4800 MHz (1DPC)
    5th: 5600/4800 MHz (1DPC)
    Memory Size :
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to support page for more information
  • Expansion Slots

    Up to 6 slots
    5 x PCIe Gen5 x16 link
    1 x PCIe Gen5 x8 link
  • Form Factor

    E-ATX (12”x13”, 304.8mmx330.2mm)
  • Storage

    Storage Controller :
    10 x SATA 6Gb/s ports (8 by 2 Slimline SASConnector)
    2 x M.2 connector (1 up to 2280, 1 up to 22110)
  • Networking

    2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
    1 x Mgmt Port
  • Graphic

    Aspeed AST2600 64MB
  • On Board I/O

    1 x TPM header
    3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector)
    1 x USB3.2 Gen1 header
    1 x USB 2.0 header
    8 x Fan Header, 4pin
    1 x SMBus
    1 x Chassis Intruder
    2 x M.2 connector
    2 x MCIO connector
    2 x SATA connector
    2 x Slimline SAS connector
    1 x Onboard header for optional management card

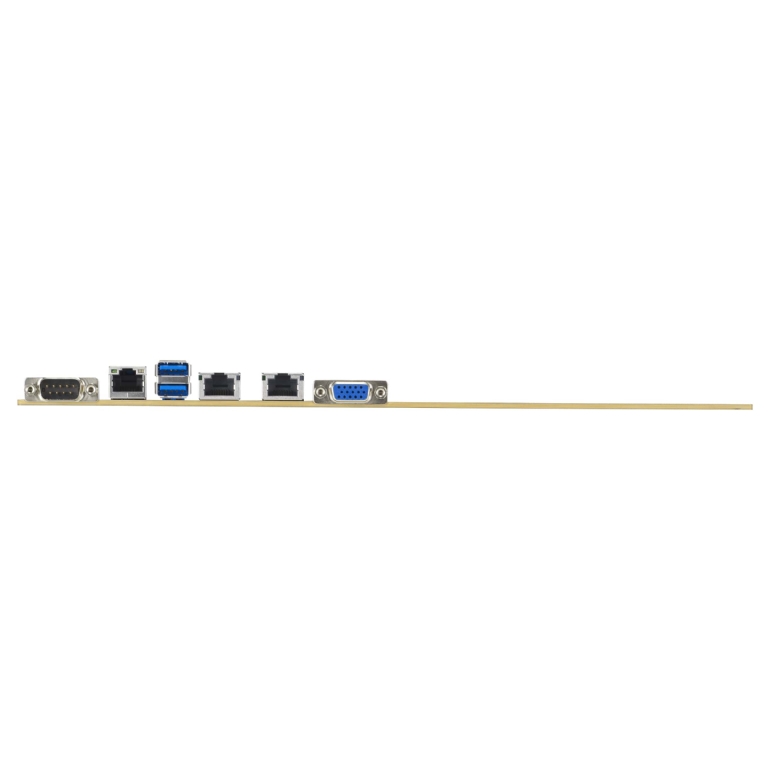

  • Back I/O Ports

    2 x USB3.2 Gen1 ports
    1 x Serial Port
    1 x VGA Port
    2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
    1 x Mgmt Port
  • Management Solution

    ASUS Control Center (in-band)
    ASMB11-iKVM (out-of-band/BMC AST2600)
  • Weight

    Gift Box (1-in-1)
    Net Weight :  1.75KG
    Gross Weight : 2.75KG
    Bulk Pack (10-in-1)
    Net Weight :  17.5KG
    Gross Weight :  20KG
  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% (Non condensing)
  • Accessories

    Gift Box (1-in-1)
    1 x I/O shield
    2 x SATA cables
    2 x Slimline SAS to SATA cables
    2 x M.2 screw
    Bulk Pack (10-in-1)
    1 x I/O shield
    2 x M.2 screw
