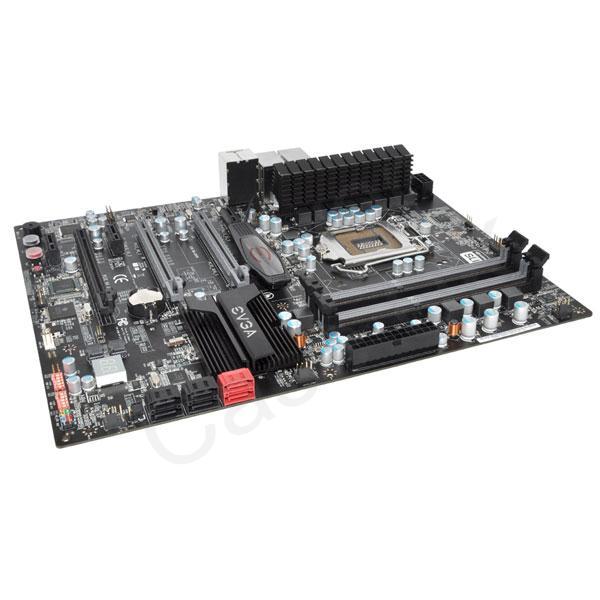

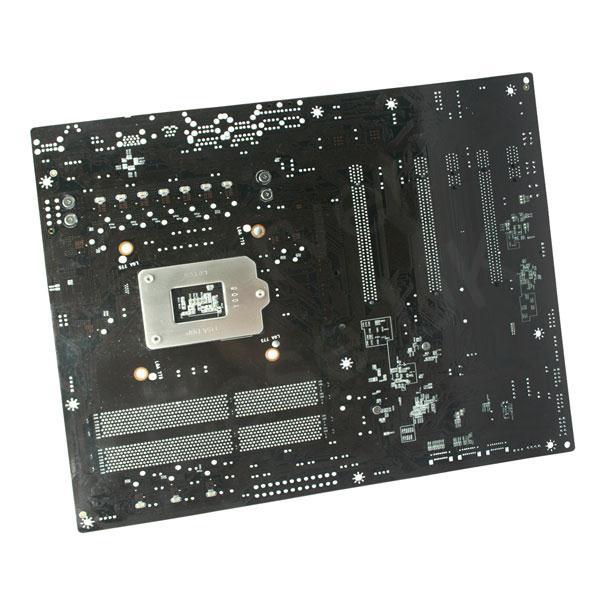

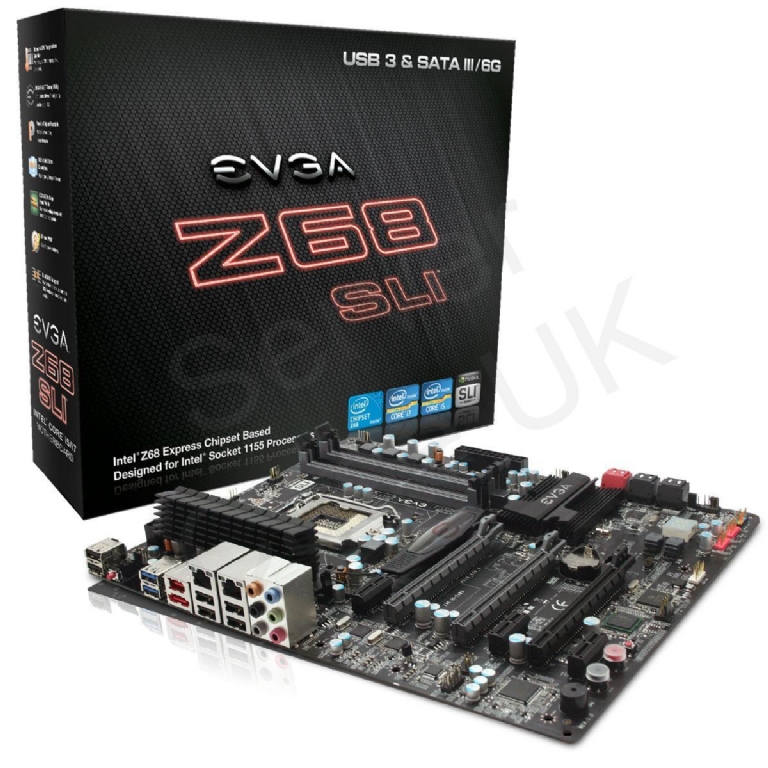

EVGA Z68 SLI Motherboard

The EVGA Z68 motherboards have arrived! These motherboards based on the latest Intel Express Chipset offer incredible performance and overclocking with Intel Core i3, Core i5 and Core i7 processors, and with new Intel Smart Response Technology, user can combine a Solid State Drive with a traditional mechanical drive and receive both high performance and high storage capacity! Intel Smart Response Technology implements a storage I/O caching system to provide users with faster response times for frequently used applications. The entire EVGA Z68 lineup has full support for SATA III/6G and USB 3.0 giving you the latest standards in high performance storage, and a forward thinking true next generation motherboard layout allows you to take control!

Features

• 8+2 Phase PWM - Superior Power Delivery
• EVGA E-LEET Tuning Utility - Enthusiast software for adjusting overclocking in O.S
• EVGA Double Play Heat Sink - CPU mounting supports both Socket 775 and Socket 1155/1156 heatsinks
• 100% Solid State Capacitors - Higher Quality, longer lifespan
• EVGA EZ Voltage read points - easily read voltage levels with dedicated read points
• Dual BIOS Support - Always have a backup, compare BIOS versions or use 2 seperate profile!
• EVGA Vdroop Control - Improves overclocking stability
• Onboard Clear CMOS, Power and Reset Buttons - System essentials at the touch of a button
• Passive chipset heatsink - No fans, lower noise, longer lifespan
• EVGA Dummy OC - Overclocking at the touch of a button
• Onboard CPU Temperature Monitor - Monitor your CPU temps quickly and easily

Specifications

CPU
Installed Processors (Max)	0 (1)
Processor	Intel Core i7
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core i3/i5/i7
Socket	Socket 1155
Expansion
PCI Express Slots	3 slot(s) - 3 x PCI Express x16 ,
General
Model Name	130-SB-E685-KR
Product Type	Motherboard
Warranty	EVGA's 3 Year Warranty
Barcode	4250223636852
Internal I/O Connectors
SATA Connectors	2 x SATA 6Gb/s � 2 x SATA 3Gb/s
Memory
Maximum Memory	16GB DDR3
Memory Slot	4 x DDR3 DIMM Slots
Motherboard
Chipset	Intel Z68
SATA Supported	Yes 2 x SATA 6Gb/s
Network
Integrated Network	Yes
Network Speeds Supported	10/100/1000Mbps
Physical
Colour	Black
In The Box	EVGA Z68 FTW Motherboard � EVGA Driver Software Installation Disc with EVGA E-LEET � Rear Case I/O Panel � 2 SATA 3G Data Cables � 2 SATA 6G Data Cables � 2 SATA Power Adapters � 2 Port USB/1394 Firewire Port Bracket � 2-way SLI Bridge � Visual Installation Guide � Manual
Dimensions	24.38cm (W) x 30.48cm (L)

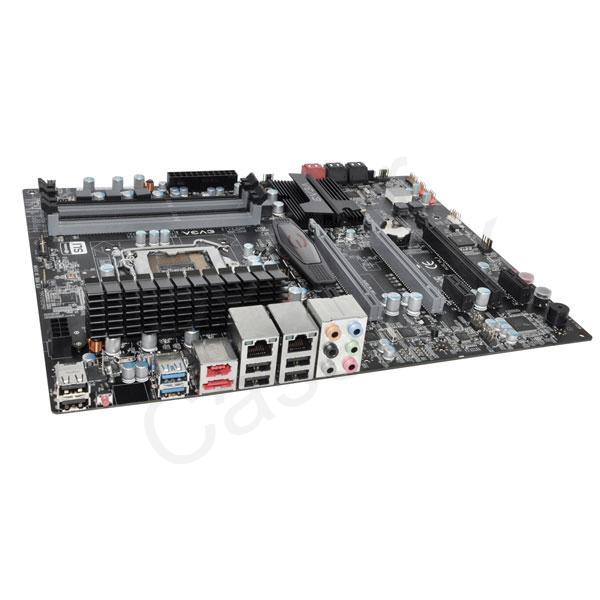

Rear Panel I/O Ports
RJ-45 Ports	2 x RJ-45
Firewire Ports	2 x IEEE 1394
USB Ports	10 x USB 2.0 � 2 x USB 3.0
eSATA Ports	1 x eSATA
Sound
Integrated Sound	8 Channel High Definition Audio
System
BIOS	AMI/UEFI
Overclocking Features	EVGA E-LEET Tuning Utility - Enthusiast software for adjusting overclocking in O.S. � EVGA Vdroop Control - Improves overclocking stability � EVGA Dummy OC - Overclocking at the touch of a button
SLi/Crossfire Features	2-way SLI Ready
Software Included	EVGA Driver Software Installation Disc with EVGA E-LEET
System Requirements
Operating Systems Supported	Microsoft Windows XP/Vista/7
