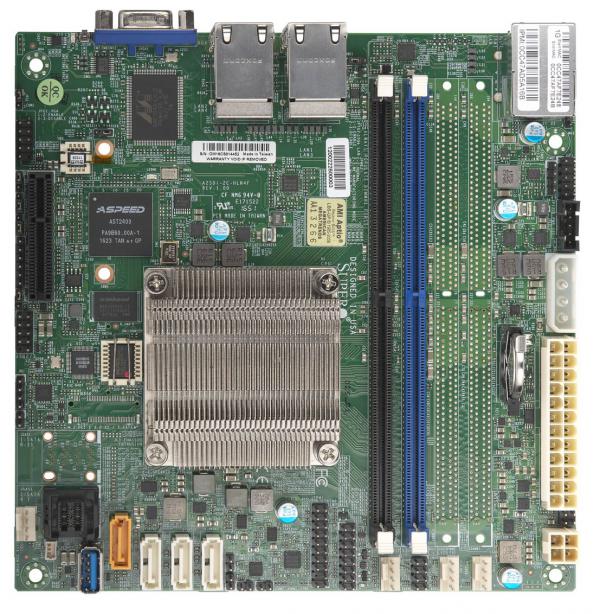

| MBD-A2SDi-2C-HLN4F |
|
| |
|
| Form Factor |
|
| Dimensions |
- 6.7" x 6.7" (17.02cm x 17.02cm)
|
| |
|
| CPU |
- Intel® Atom™ Processor C3338.
- Single Socket FCBGA1310 supported, CPU TDP support 9W
|
| Cores / Cache |
- 2 cores, 2 threads / 4MB cache
|
| |
|
| Memory Capacity |
- Up to 128GB Registered ECC RDIMM and DDR4-1866MHz
- Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots
|
| Memory Type |
- 2400/2133/1866/1600MHz (Operating speed up to 1866MHz)
|
| DIMM Sizes |
- 4GB, 8GB, 16GB, 32GB, 64GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- Up to 8 SATA3(6 Gbps) ports via SoC. *Number of SATA ports is configurable via BIOS setup: 4, 6, or 8. Total combined PCI-E lanes and SATA ports is up to 8.
|
| IPMI |
|
| Network Controllers |
- Quad LAN with Intel® C3000 SoC
1GbE
|
| Graphics |
|
| |
|
| LAN |
- 4 RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 4 USB 2.0 ports (2 rear + 2 headers),
- 1 USB 3.0 ports ( + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
|
| TPM |
|
|
 |
|
| PCI-E |
- 1 PCI-E 3.0 up to x4 (in x4 slot)
- *Number of PCI-E lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCI-E lanes and SATA ports is up to 8.
|
| |
|
| BIOS Type |
|
| BIOS Features |
|
| |
|
| Software |
- IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog
|
| Power Configurations |
- ATX Power connector
- +12V DC Power Input
- CPU thermal trip support for processor protection
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT
|
| FAN |
- 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors
|
| Temperature |
|
| LED |
|
| Other Features |
- 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, RoHS, SDDC, System level control, UID, WOL
|
| |
|
| Operating Temperature Range |
- 0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
- -40°C - 85°C (-40°F - 185°F)
|
| Operating Relative Humidity Range |
- 10% ~ 85% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 10% ~ 95% (non-condensing)
|
|
