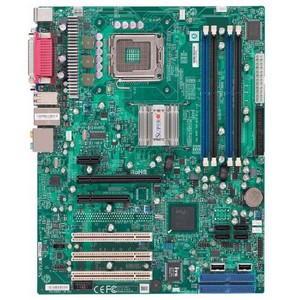

Supermicro C2SBA+

MBD-C2SBA+-O
Supermicro C2SBA+
£122.85
ex. VAT
(£147.42
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?



Product SKUs
MBD-C2SBA+ -O
  • C2SBA+ (Standard Retail Pack)
MBD-C2SBA+ -B
  • C2SBA+ (Bulk Pack)

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12.0" x 9.6 ", (30.5cm x 24.4cm)

Processor/Cache
CPU
  • Single LGA775 ZIF Socket
  • Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
  • Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
  • Supports Intel® Pentium® E5000/E2000series
  • Supports Intel® Celeron® E1000 and 400series
System Bus
  • 1333 / 1066 / 800 MHz system bus

System Memory
Memory Capacity
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB of unbuffered, non-ECC DDR2 800/667MHz memory (Dual Channel)
Memory Type
  • DDR2 800/667MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes
  • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage
  • 1.8V only

On-Board Devices
Chipset
  • Intel G33
  • ICH9
Serial ATA
  • Intel® ICH9 SATA2 (3 Gbps) controller built-in
Network Controllers
  • 1 x Intel® 82566 Gigabit Ethernet
  • Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output
Audio
  • High Definition 7.1 Channel Audio
Video
  • On board graphics
Super I/O
  • Winbond 83627DHG chip
Clock Generator
  • CK505

Input / Output
Serial ATA
  • Four Serial ATA ports (3Gbps)
  • Four SATA hard drives supported
IDE
  • Two EIDE channel supports up to four UDMA IDE devices
  • ITE 8212F chipset - Rev 1.2 or earlier
  • ITE 8211F chipset - Rev 1.2A or later
Floppy
  • 1 Floppy controller; 1.44 MB
LAN
  • 1x RJ45 LAN port
USB
  • 12x USB 2.0 / 1.1 compatible
  • 6 rear + 2 Type A connectors + 2 headers (4 ports)
Audio
  • High Definition 7.1 Channel Audio
  • Line-in / Line-out / Microphone Ports
VGA
  • On board VGA port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Ports
  • 1x Fast UART 16550 serial port
  • 1x Serial Header
Parallel Port
  • 1x ECP / EEP Parallel Port
Chassis ( Optimized for C2SBA+ )
Mid-Tower
Tower / 4U Rackmount
Important Note
  • To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.

Expansion Slots
PCI-Express
  • 1 (x16) PCI-e slot
  • 1 (x4) PCI-e slot (using x8 slot)
  • 1 (x1) PCI-e slot
PCI
  • 3x 32-bit 33MHz PCI (5V) slots

System BIOS
BIOS Type
  • 16Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Management
Software
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Keyboard Wakeup from Soft-Off
  • Power-on mode control for AC power recovery
  • Internal / External modem remote ring-on
  • Suspend to RAM (STR)

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio (Only available if CPU is supported)
FAN
  • Total of five 4-pin fan headers
  • 3 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin PWM fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) Support
  • PECI
LED
  • CPU / System Overheat LED
  • Standby power alert LED
Other Features
  • Chassis intrusion Detection
  • Chassis intrusion Header

Operating Environment / Compliance
RoHS
RoHS 6/6
Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)

OS Compatibility

• Please see our OS Compatibility Chart

Regulatory
FCC
  • Class B
Standard Retail Package
  Part Number Qty Description
C2SBA+ MBD-C2SBA+ -O 1 C2SBA+ Motherboard
I/O Cable 1 CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Cable 2 CBL-022L 1 ATX FLOPPY CABLE 3 HEADERS PB FREE
I/O Cable 3 CBL-036L-03 2 18" ATA 133/100/66 3-DROP TPE CABLE, PBF
I/O Shield MCP-260-00001-00 1 STANDARD I/O SHIELD W/ 2 SET AUDIO PORTS
Manual MNL-0941 1 C2SBA+/C2SBA/C2SBE/C2SBA+II MANUAL
Quick Reference Guide MNL-0941-QRG 1 Quick Reference Guide

Note:  Items in a Standard Retail Package may differ from items in a Standard Bulk Package.
