Supermicro MBD-X10SAE-O

MBD-X10SAE-O
Supermicro MBD-X10SAE-O
£175.06
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity

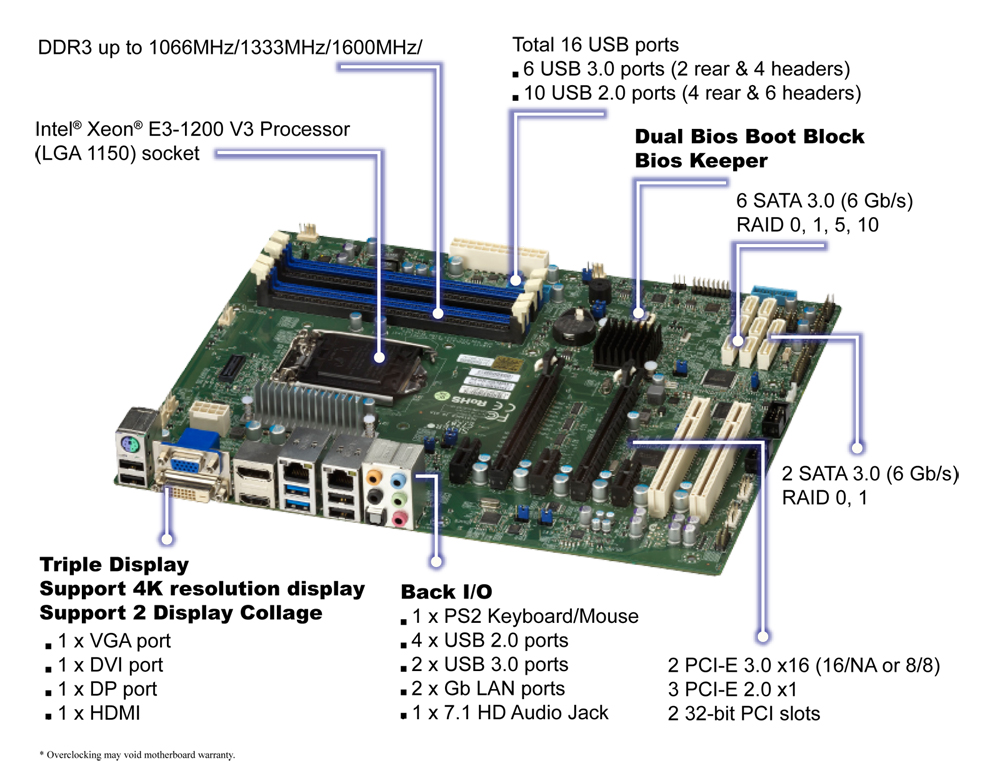

Key Features

  1. Single socket H3 (LGA 1150) supports
  2. Intel® Xeon® E3-1200 v3, 4th gen. Core i3/i5/i7 processors
  3. Intel® C226 Express PCH
  4. Up to 32GB DDR3 ECC/non-ECC 1600MHz UDIMM in 4 sockets
  5. Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)
  6. 8x SATA3 (6Gbps)
  7. 2x PCI-E 3.0 x16, 3x PCI-E 2.0 x1, and 2x PCI 5V 32-bit slots
  8. 6x USB 3.0 (2 rear + 4 via headers)
  9. 10x USB 2.0 (4 rear + 6 via headers)
  10. HD Audio 7.1 channel connector by Realtek ALC1150
  11. 1x DOM power connector and
  12. 1x SPDIF Out Header
  13. 10. UEFI BIOS support


Features

Product SKUs
MBD-X10SAE
  • X10SAE (Bulk Pack)

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6", (30.48cm x 24.4 cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3/i5/i7, Pentium, Celeron processors
  • Single Socket H3 (LGA 1150)

System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5V, 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C226 Express PCH
SATA
  • SATA3 via PCH w/ RAID 0, 1, 5, 10
  • SATA3 via ASM1061®
Network Controllers
  • Intel® i217LM + Intel® i210AT Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC1150 High Definition Audio

Input / Output
Serial ATA
  • 6x SATA3 (6Gbps) ports via PCH
  • 2x SATA3 (6Gbps) ports via ASM1061®
  • Total of 8x SATA3 ports (6Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (2 rear, 4 via headers)
  • 10x USB 2.0 ports (4 rear, 6 via headers)
Audio
  • 7.1 HD Jacks
Display
  • 1x VGA, 1x HDMI, 1x DVI, 1x Display port
Serial Port / Header
  • 2x COM ports (headers)
DOM
  • SATA DOM (Disk on Module) power connector support
Others
  • TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard
Chassis ( Optimized for X10SAE )
3U Chassis
Mid-Tower
Tower / 4U Rackmount
Important Chassis Notes
  • To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots -
      Function as: 16/NA or 8/8
  • 3x PCI-E 2.0 x1 (in x4) slots
PCI
  • 2x PCI 5V 32-bit slots

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 5.0
  • USB Keyboard support

Management
Software
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Parts List (Bulk Package)
  Part Number Qty Description
Motherboard MBD-X10SAE 1 X10SAE Motherboard
Quick Reference Guide QRG-X10SAE 1 X10SAE Quick Reference Guide
