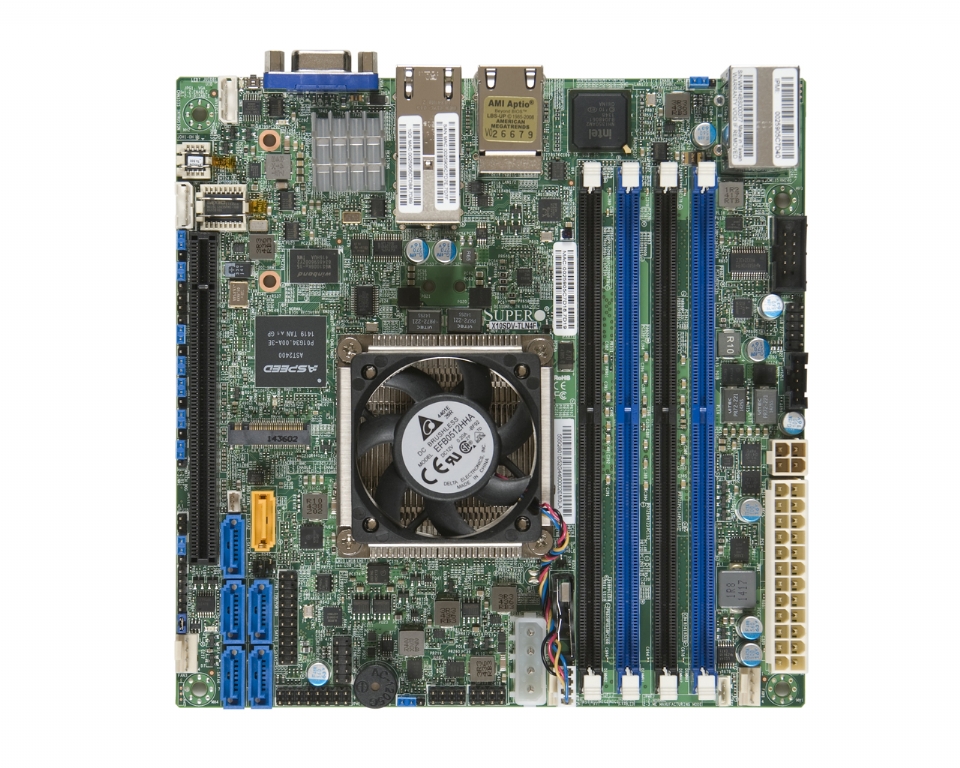

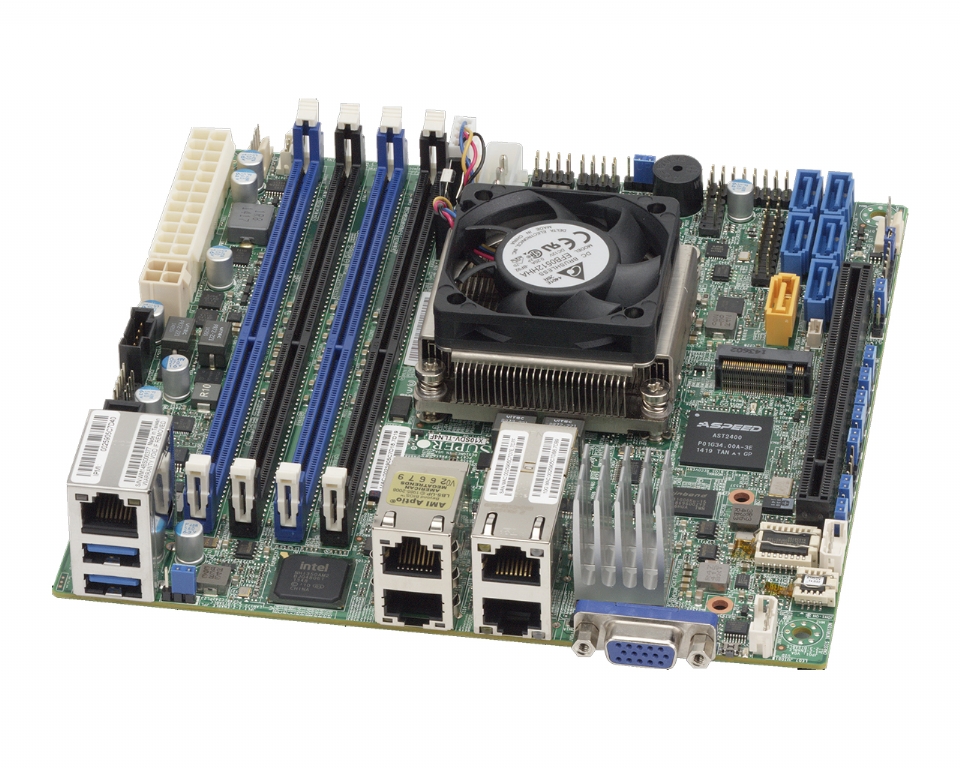

Supermicro MBD-X10SDV-8C-TLN4F-O

MBD-X10SDV-8C-TLN4F-

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

Motherboard	X10SDV-8C-TLN4F (Bulk Pack)


Physical Stats

Form Factor	Mini-ITX
Dimensions	6.7" x 6.7", (17cm x 17cm)


Processor/Cache

CPU	Intel® Xeon® processor D-1541 FCBGA 1667 supported CPU TDP support 45W, 12MB, 8 Cores, 16 Threads


System Memory

Memory Capacity	4x DDR4 DIMM sockets Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	System on Chip
SATA	SoC controller for 6 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
Network Controllers	Dual LAN via Intel® i350-AM2 Gigabit Ethernet Dual LAN via SoC 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	Aspeed AST2400
TPM	TPM header

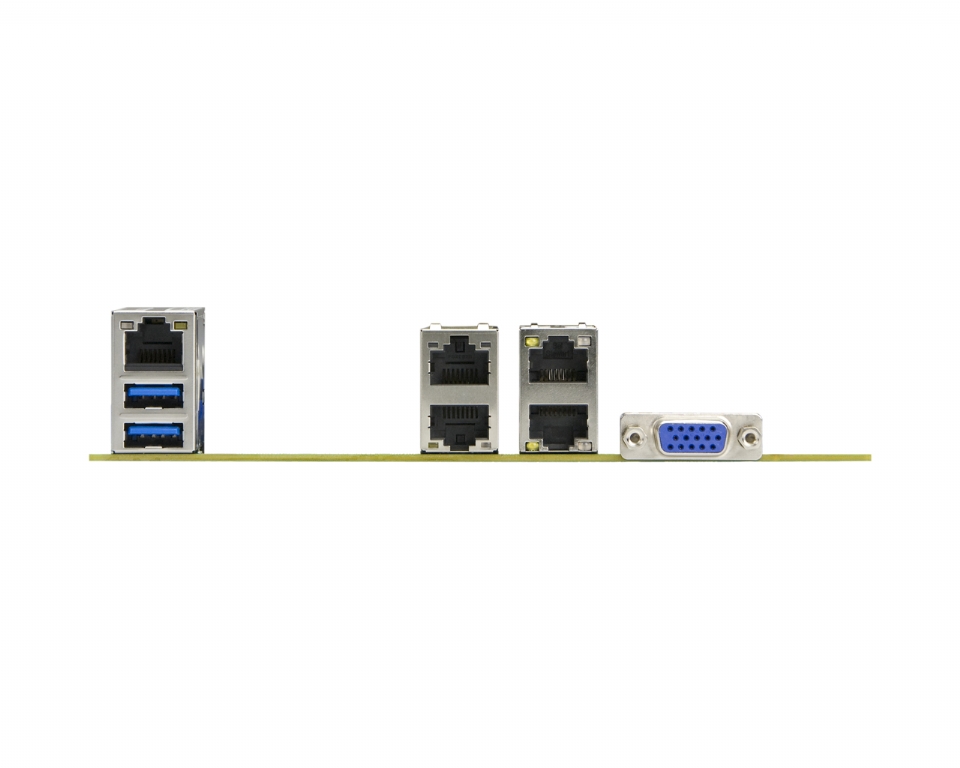

Input / Output

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T ports 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
DOM	1 SuperDOM (Disk on Module) power connector


Chassis (Optimized for X10SDV-8C-TLN4F )

1U Chassis:	SC505-203B SC504-203B
Important Chassis Notes	To support the new generation Intel^®Xeon^® processor-based motherboards, Revision N chassis is recommended. Please talk to your sales representative for details.


SuperServer(s) with X10SDV-8C-TLN4F

Model(s)	SYS-5018D-FN4T


Expansion Slots

PCI-Express	1 PCI-E 3.0 x16 slot
M.2	Interface: PCI-E 3.0 x4 Form Factor: M Key 2242/2280 Support SATA devices


System BIOS

BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup


Management

Software	IPMI 2.0 KVM with dedicated LAN NMI SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management CPU Fan auto-off in sleep mode Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, System level control
FAN	Total of three 4-pin fan headers supporting tachometer status monitoring Dual Cooling Zone Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header 12V DC or ATX Power Source RoHS



Operating Environment

Operating Temperature Range	0°C - 60°C (32°F - 140°F)


Parts List (Bulk Package)

	Part Number	Qty	Description
Motherboard	MBD-X10SDV-8C-TLN4F	1	X10SDV-8C-TLN4F Motherboard
I/O Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00084-0N	1	STD I/O SHIELD


Optional Parts List

	Part Number	Qty	Description
1U I/O Shield	MCP-260-00085-0B	1	1U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504
1U I/O Shield	MCP-260-00079-0N	1	1U I/O shield for X10SDV-F/TLN4F in SC813/SC512 chassis
