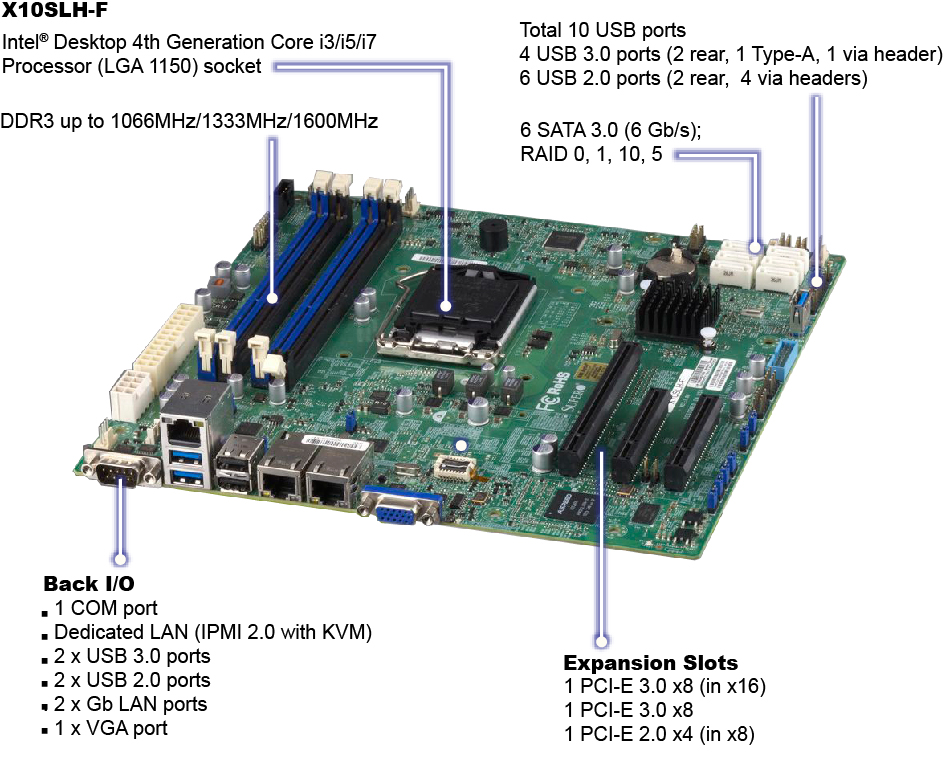

Supermicro MBD-X10SLH-F-O

Key Features

1. Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3, 4th gen. Core i3, Pentium, Celeron processors
2. Intel® C226 Express PCH
3. Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
4. Dual Gigabit Ethernet LAN ports via 2x Intel® i210AT
5. 6x SATA (6Gbps)
6. 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots
7. 4x USB 3.0 (1 Type-A, 2+1 via header)
8. 6x USB 2.0 (4 rear, 2 via header)
9. Integrated IPMI 2.0 with KVM and Dedicated LAN
10. SATA DOM power connector support
11. VGA D-sub connector, TPM header
12. Support Intel VHD and Node Manager

Specifications

Product SKUs MBD-X10SLH-F X10SLH-F (Bulk Pack)   Physical Stats Form Factor uATX Dimensions 9.6" x 9.6", (24.4cm x 24.4 cm)   Processor/Cache CPU Intel® Xeon® processor E3-1200 v3 (supports VHD via E3-1285 or E3-1285L) and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)   System Memory Memory Capacity 4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) Memory Type 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 8GB, 4GB, 2GB, 1GB Memory Voltage 1.5 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory)   On-Board Devices Chipset Intel® C226 Express PCH SATA SATA3 (6Gbps) w/ RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Intel® i210AT Controllers Virtual Machine Device Queues High efficient I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) VGA BMC integrated Aspeed AST2400   Input / Output Serial ATA 6x SATA3 (6Gbps) ports LAN 2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header) 6x USB 2.0 ports (2 rear, 4 via header) VGA 1x VGA D-Sub Connector Serial Port / Header 2x COM ports (1 rear, 1 header) DOM SATA DOM (Disk on Module) power connector support TPM 1x TPM 1.2 20-pin Header

Chassis ( Optimized for X10SLH-F ) 1U Chassis CSE-113MTQ-330CB CSE-113MTQ-R400CB CSE-512F-350B CSE-512F-441B CSE-811TQ-441B CSE-813MTQ-350C CSE-813MTQ-441CB CSE-813MTQ-R400CB Mid-Tower CSE-732D4-500B CSE-732D4-865B CSE-732D4-903B CSE-733i-300 CSE-733TQ-500B CSE-733TQ-665B Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot   System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support   Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support SuperDoctor® III Watch Dog NMI Power Configurations ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on   PC Health Monitoring Voltage Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V FAN Total of five 4-pin fan headers supporting up to 5 fans 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED +5V Standby alert LED Other Features Chassis intrusion detection Chassis intrusion header

	Parts List (Bulk Package)   Part Number Qty Description Motherboard MBD-X10SLH-F 1 X10SLH-F Motherboard Quick Reference Guide MNL-1464-QRG 1 X10SLH-F Quick Reference Guide I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
