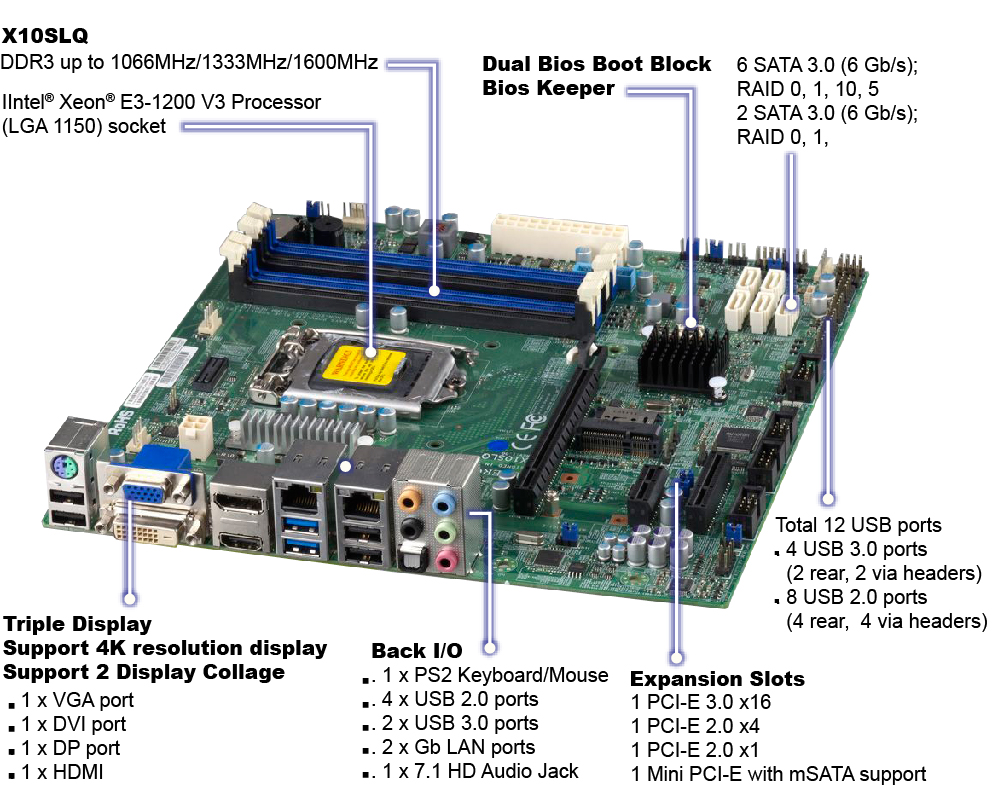

MBD-X10SLQ -B |
|
|
|
Form Factor |
|
Dimensions |
- 9.6" x 9.6", (24.4cm x 24.4 cm)
|
|
|
CPU |
- Intel® 4th Gen Core i3/i5/i7, Pentium, Celeron processors
- Single Socket H3 (LGA 1150)
|
|
|
Memory Capacity |
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
|
Memory Type |
- 1600MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
DIMM Sizes |
|
Memory Voltage |
|
|
|
Chipset |
- Intel® Q87 Express Chipset
|
SATA |
- SATA3 (6Gbps) w/ RAID 0, 1, 5, 10 via PCH with Intel RST
|
Network Controllers |
- Intel® i217LM + Intel® i210AT Controllers
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
Audio |
- RealTek ALC888S 7.1 High Definition Audio
|
VGA |
|
Super I/O |
|
|
|
Serial ATA |
- 6x SATA 3.0 ports (6Gbps) including 1x mSATA
|
LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
|
USB |
- 4x USB 3.0 ports (2 rear, 2 via header)
- 8x USB 2.0 ports (4 rear, 4 via headers)
|
Audio |
- 7.1 HD Audio header and rear I/O
|
Display |
- 1x VGA, 1x HDMI, 1x DVI-D, 1x Display port from Intel HD 4600 Graphics, 3x Independent Displays
|
Serial Port / Header |
- 4x COM ports (headers); COM2 with RS422/485 support
|
DOM |
- SATA DOM (Disk on Module) power connector support
|
Security |
|
Others |
- PS/2 connector for mouse and keyboard
|
|
|
|
|
Mid-Tower |
|
Important Chassis Notes |
- To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.
|
|
|
PCI-Express |
- 1x PCI-E 3.0 x16 (in x16) slot
- 1x PCI-E 2.0 x4 slot
- 1x PCI-E 2.0 x1 slot
- 1x Mini-PCI-E w/ mSATA support
|
|
|
BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- DMI (SMBIOS) 2.7
- ACPI 5.0
- USB Keyboard support
|
|
|
Software |
|
Power Configurations |
- ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Power-on mode for AC power recovery
- Internal/External modem ring-on
|
|
|
Voltage |
- Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
|
FAN |
- Total of four 4-pin fan headers supporting up to 4 fans
- 4x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Adaptive Thermal Monitor, PECI 3.0
|
LED |
- CPU / System Overheat LED
- +5V Standby alert LED
|
Other Features |
- Chassis intrusion detection
- Chassis intrusion header
|
|
|
• 0°C to 60°C |
|
