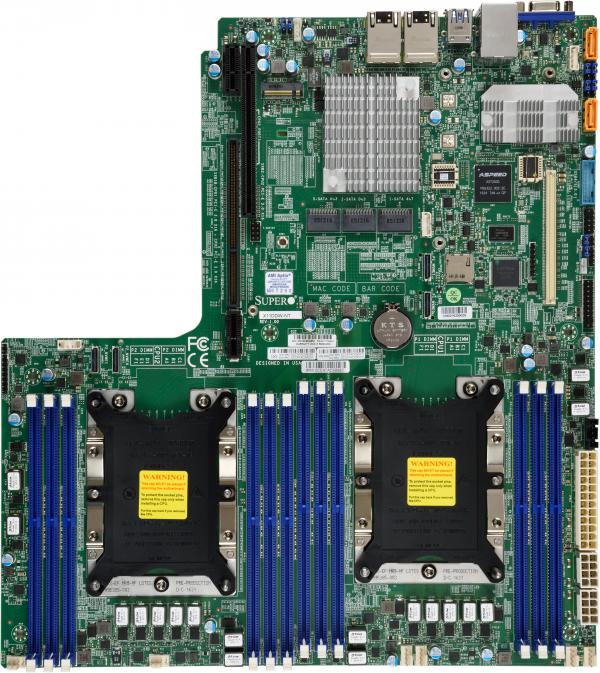

Supermicro MBD-X11DDW-NT-O

MBD-X11DDW-NT-O

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

MBD-X11DDW-NT	X11DDW-NT


Physical Stats

Form Factor	12.3" x 13.4"
Dimensions	12.3" x 13.4" (31.24cm x 34.04cm)


Processor/Cache

CPU	Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s


System Memory

Memory Capacity	Up to 1.5TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C622
SATA	Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 10Gbase-T from C622
Graphics	Aspeed AST2500 BMC


Input / Output

LAN	2 RJ45 10GBase-T ports
USB	6 USB 3.0 ports (4 rear + 2 via header(s))
Video Output	1 VGA port(s)
TPM	1 TPM Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
M.2	Interface: PCIe 3.0 x4 Form Factor: M-Key 2242, 2260, 2280, 22110


System BIOS

BIOS Type	UEFI 256Mb


Management

Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5+1 Phase-switching voltage regulator, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature	CPU thermal trip support
LED	CPU / System Overheat LED UID/Remote UID
Other Features	Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, Halogen Free, UID
