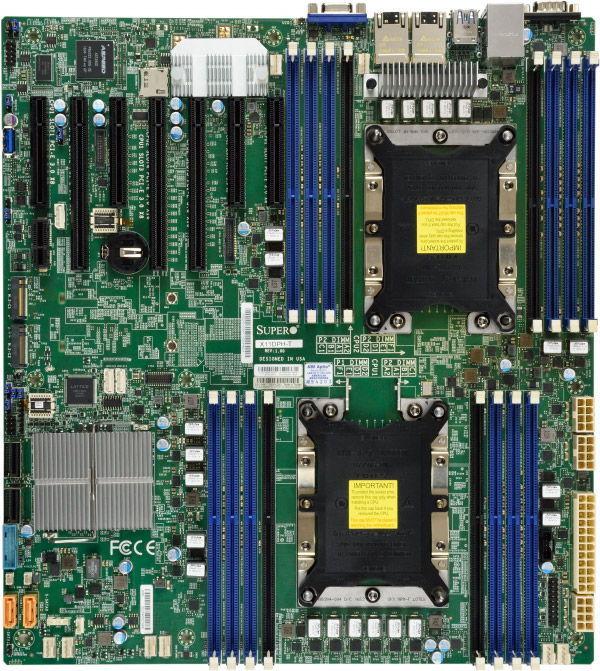

Supermicro MBD-X11DPH-T-O

MBD-X11DPH-T-O
Supermicro MBD-X11DPH-T-O
£538.04
ex. VAT
(£645.64
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?

Frequently bought together

32GB Samsung Server RAM, DDR4, Low Profile, PC4-21300 (2666), ECC Registered (RDIMM), 288 Pin, 1.2V
32GB Samsung Server RAM, DDR4, Low Profile, PC4-21300 (2666), ECC Registered (RDIMM), 288 Pin, 1.2V
£143.47 ex VAT
(£172.17 inc VAT)
Supermicro MCP-220-00043-0N 2.5
Supermicro MCP-220-00043-0N 2.5" HDD in 4th Gen 3.5" Hot Swap Tray
£8.71 ex VAT
(£10.45 inc VAT)
Supermicro 2U Passive CPU Heat Sink Socket LGA3647-0
Supermicro 2U Passive CPU Heat Sink Socket LGA3647-0
£20.93 ex VAT
(£25.12 inc VAT)
Supermicro 2U Passive Side-Air-Channel CPU Heat Sink Socket LGA3647-0
Supermicro 2U Passive Side-Air-Channel CPU Heat Sink Socket LGA3647-0
£20.93 ex VAT
(£25.12 inc VAT)
Product info
Product Description Compatible Products Downloads Reviews
Product SKUs
MBD-X11DPH-T
  • X11DPH-T

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
  • Intel® Xeon® Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
  • CPU1: Skylake-F CPU supported

System Memory
Memory Capacity
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C624
SATA
  • Intel® C624 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X557

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16,
  • 4 PCI-E 3.0 x8
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factor: M-Key 22110 (RAID 0,1 support)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 6+1 Phase-switching voltage regulator, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN
  • 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • PECI
LED
  • CPU / System Overheat LED
  • UID/Remote UID
  • Suspend static indicator LED
Other Features
  • ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID

Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
