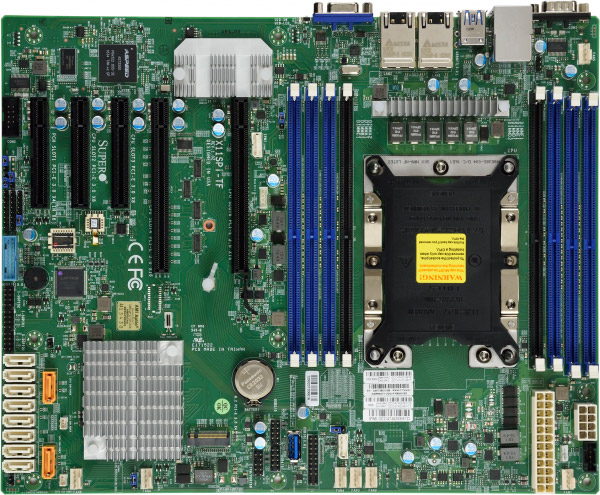

Supermicro MBD-X11SPI-TF-O

MBD-X11SPI-TF-O

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

Frequently bought together

32GB Samsung Server RAM, DDR4, Low Profile, PC4-21300 (2666), ECC Registered (RDIMM), 288 Pin, 1.2V

£204.12 ex VAT

(£244.94 inc VAT)

16GB Samsung DDR4 Server/Workstation RAM, PC4-19200 (2400), ECC UDIMM, CAS 17, Dual Rank, 1.2V

£77.34 ex VAT

(£92.81 inc VAT)

Supermicro 1U 16x PCIe Riser Card

£25.99 ex VAT

(£31.19 inc VAT)

In-Win 20" Slide Rail Kit

£36.99 ex VAT

(£44.39 inc VAT)

Product info

Product Description Compatible Products Downloads Reviews

Product SKUs

MBD-X11SPi-TF	X11SPi-TF


Physical Stats

Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)


Processor/Cache

CPU	Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache	Up to 28 cores


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM slots, Up to 1TB ECC 3DS LRDIMM, Up to 512GB ECC LRDIMM, Up to 256GB ECC RDIMM
Memory Type	2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C622
SATA	Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 10GBase-T with Intel® X722 + X557
Graphics	Aspeed AST2500 BMC


Input / Output

SATA	10 SATA3 (6Gbps) port
LAN	2 RJ45 10GBase-T ports
USB	6 USB 2.0 ports (2 rear + 4 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA port
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	TPM Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
M.2	M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110


System BIOS

BIOS Type	AMI UEFI
BIOS Features	ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later


Management

Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN	7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature	CPU thermal trip support, PECI
LED	CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features	ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL


Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
