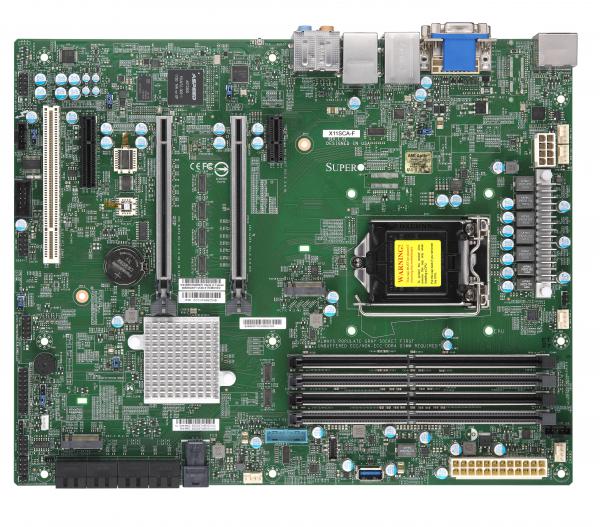

Supermicro Motherboard X11SCA-F (Retail)

Key Features

1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x4,
   1 PCI-E 3.0 x1,
   2 PCI-Ex16 slots are running at NA/16, or 8/8
   1 - 5V PCI 32bit
   M.2 Interface: 2 PCI-E 3.0 x4
   M.2 Form Factor: 2242/2260/2280/22110
   M.2 Key: M-Key
   M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
   U.2 Interface: 1 PCI-E 3.0 x4
5. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
   Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® Ethernet Controller I210-AT
   Shared with IPMI
   Single LAN with Intel® PHY I219LM LAN controller

Product SKUs MBD-X11SCA-F X11SCA-F   Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm)   Processor/Cache CPU Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP   System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB Memory Voltage 1.2V *Future support for 128GB via a BIOS update expected in early 2019   On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Shared with IPMI Single LAN with Intel® PHY I219LM LAN controller Audio ALC 888S HD Audio Graphics Aspeed AST2500 BMC Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)   Input / Output LAN 2 1GbE LAN ports USB 2 USB 2.0 ports (2 headers, Type A)) 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 header, 1 Type A) Video Output 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only) Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8 1 - 5V PCI 32bit M.2 M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2   System BIOS BIOS Type UEFI 128Mb   Management Software IPMI2.0, SSM, SUM, SuperDoctor® 5, Watchdog System Mangement Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support *** OOB Bios refresh is not supported on X11SCA-F SuperDoctor 5 Power Configurations ACPI Power Management ATX Power connector Power-on mode for AC power recovery Keyboard Wakeup from Soft-Off   PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, VBAT FAN 5 fans with tachometer status monitoring, Fan speed control, Low noise fan speed control, PWM fan speed control Temperature N/A LED Standby alert LED Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, RoHS, WOL   Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCA-F 1 X11SCA-F Motherboard SATA cable CBL-0044L 2 SATA3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 Folder MCP-450-00005-0B 2 M.2 SSD Floder Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCA-F 1 X11SCA-F Motherboard SATA cable CBL-0044L 6 SATA3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 Folder MCP-450-00005-0B 2 M.2 SSD Folder Quick Reference Guide MNL-2087-QRG 1 X11SCA Series Quick Reference Guide
