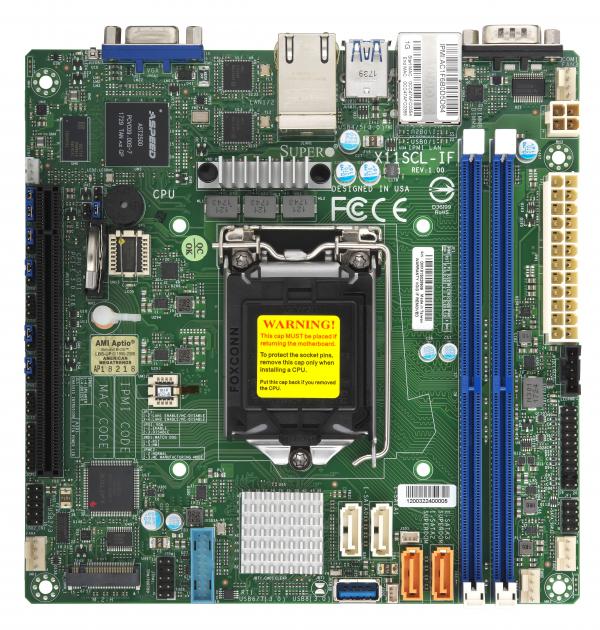

Supermicro Motherboard X11SCL-IF (Retail)

MBD-X11SCL-IF-O
Supermicro Motherboard X11SCL-IF (Retail)
£173.42
ex. VAT
(£208.10
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?

Frequently bought together

Supermicro MCP-220-00044-0N Mounting Bracket
Supermicro MCP-220-00044-0N Mounting Bracket
£3.13 ex VAT
(£3.76 inc VAT)
Supermicro 1U Active Proprietary CPU Heat Sink Socket LGA1155/1150/1151
Supermicro SuperChassis 505-203B (Black)
Supermicro SuperChassis 505-203B (Black)
£99.46 ex VAT
(£119.35 inc VAT)
Supermicro RSC-RR1U-E16 Riser Card
Supermicro RSC-RR1U-E16 Riser Card
£13.74 ex VAT
(£16.49 inc VAT)

Key Features

  1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, Intel® 8th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
  2. Intel® C242 chipset
  3. Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots
  4. Dual GbE LAN with Intel® i210-AT
  5. 4 SATA3 (6Gbps); RAID 0, 1, 5, 10
  6. M.2 NGFF connector
  7. M.2 Interface: 1 PCI-E 3.0 x4
    Form Factor: 2280
    Key: M-Key
    Double Height Connector



Product SKUs
MBD-X11SCL-IF
  • X11SCL-IF

Physical Stats
Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor/Cache
CPU
  • 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series.
  • Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
Cores / Cache
  • 6 cores, 12 threads

System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
Memory Type
  • 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
*Future support for 64GB via a BIOS update expected in early 2019

On-Board Devices
Chipset
  • Intel® C242
SATA
  • Intel® C242 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Graphics
  • Aspeed AST2500 BMC

Input / Output
USB
  • 4 USB 2.0 ports (2 rear + 2 headers)
  • 5 USB 3.1 ports (2 rears (2 Type A + 2 headers(1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 (in x16 slot)
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector

System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0

Management
Software
  • IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 4 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
  • 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
  • Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED
  • CPU / System Overheat LED, UID/Remote UID
Other Features
  • ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-IF 1 X11SCL-IF Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-IF 1 X11SCL-IF Motherboard
QRG MNL-2088-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSL-F with EMI Gasket
