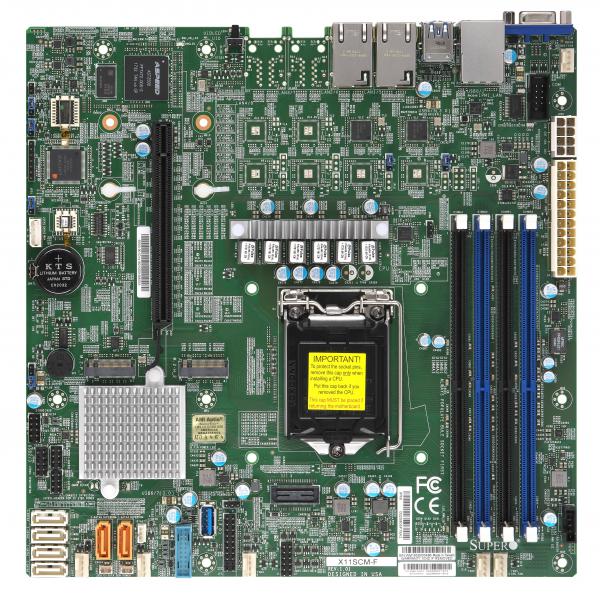

Supermicro Motherboard X11SCM-F (Retail)

Key Features

1. 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series. , Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x16
   M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
   M.2 Form Factor: 2280/22110
   M.2 Key: M-Key
   Double Height Connector
5. Dual LAN with Intel® Ethernet Controller I210-AT
6. Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. 5x USB 3.0 ports, 4x USB 2.0 ports
8. 1 VGA, 1 COM, 1 TPM
9. 2 SuperDOM with built-in power

Product SKUs MBD-X11SCM-F X11SCM-F   Physical Stats Form Factor microATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)   Processor/Cache CPU 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series. Socket LGA 1151 supported, CPU TDP support Up to 95W TDP Cores / Cache 6 cores, 12 threads   System Memory Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors *Future support for 128GB via a BIOS update expected in early 2019   On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT Graphics Aspeed AST2500 BMC   Input / Output SATA 6 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (2 rear + 2 headers) 5 USB 3.1 Gen1 ports(2 rears, 2 headers, 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector   System BIOS BIOS Type UEFI 256Mb BIOS Features ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0   Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog System Mangement Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations ACPI Power Management   PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED UID/Remote UID, CPU / System Overheat LED Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL   Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard QRG MNL-2075-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket
