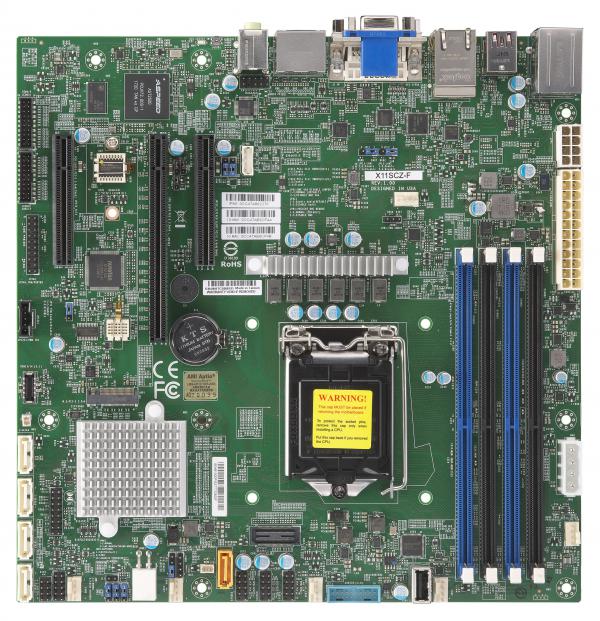

Supermicro Motherboard X11SCZ-F (Retail)

Key Features

1. 8th Generation Intel® Core™ i3 Processor, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x16,
   2 PCI-E 3.0 x4 (in x8 slot)
   M.2 Interface: 1 SATA/PCI-E 3.0 x4
   M.2 Form Factor: 2280/22110
   M.2 Key: M-Key
5. 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
   3 Independent Displays
6. Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® Ethernet Controller I210-AT
   Single LAN with Intel® PHY I219LM LAN controller

Product SKUs MBD-X11SCZ-F X11SCZ-F   Physical Stats Form Factor uATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)   Processor/Cache CPU 8th Generation Intel® Core™ i3 Processor, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Workstation. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports   System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) *Future support for 128GB via a BIOS update expected in early 2019   On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Audio ALC 888S HD Audio Graphics Aspeed AST2500 BMC, Intel® HD Graphics 3 Independent Displays   Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 7 USB 2.0 ports (6 headers1 Type A) 2 USB 3.1 Gen1 ports Rear Type A) 6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 headers) Video Output 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays Serial Port / Header 4 COM Ports (4 headers) TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key   System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup   Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, Watchdog System Mangement Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations +12V DC Power Input ATX Power connector ACPI Power Management   PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control Temperature Thermal Control for 6 Fan Connectors LED UID/Remote UID Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID   Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-F 1 X11SCZ-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-F 1 X11SCZ-F Motherboard QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Optional Parts List Name Part Number Qty Description Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm 1U I/O Shield MCP-260-00127-0N   1U I/O Shield for X11SCZ with EMC Gasket in SC813 Chassis 1U I/O Shield MCP-260-00128-0B   1U I/O Shield for X11SCZ with EMC Gasket in SC510 Chassis
