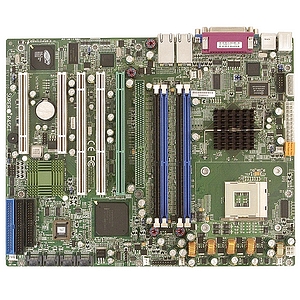

Supermicro P4SCT+ Workstation Motherboard - Intel E7210 Chipset - Socket PGA-478 - 1 x Retail Pack
MBD-P4SCT+-OPlease contact us to discuss alternative products which may be suitable.
P4SCT+ Workstation Board supports single Intel Pentium 4 processors or Celeron processors up to 3.40 GHz (with Hyper Threading) at a system bus speed of 800/533/400 MHz. Pentium 4/Celeron processors are housed in a 478-pin micro PGA (Plastic Grid Array) package.
Specifications
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-P4SCT+-O |
| Manufacturer Website Address | http://www.supermicro.co.uk |
| Brand Name | Supermicro |
| Product Model | P4SCT+ |
| Product Name | P4SCT+ Workstation Motherboard |
| Marketing Information | P4SCT+ Workstation Board supports single Intel Pentium 4 processors or Celeron processors up to 3.40 GHz (with Hyper Threading) at a system bus speed of 800/533/400 MHz. Pentium 4/Celeron processors are housed in a 478-pin micro PGA (Plastic Grid Array) package. |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | E7210 |
| Total Processor Supported | 1 |
| Processor Technology | Hyper-Threading Technology |
| Processor Socket | Socket PGA-478 |
| Processor Supported | Pentium 4 (Extreme Edition) |
| Processor Supported | Celeron |
| Front Side Bus | 400 MHz |
| Front Side Bus | 533 MHz |
| Front Side Bus | 800 MHz |
| Memory | |
| Number of Memory Slots | 4 |
| Maximum Memory | 4 GB |
| Memory Technology | DDR SDRAM |
| I/O Controller | |
| Controller Type | Floppy Controller |
| Controller Type | Serial ATA/150 |
| Controller Type | Ultra ATA/100 (ATA-6) |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Model | Rage-XL |
| Graphics Controller Memory | 8 MB |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 5 |
| Number of PCI Slots | 2 |
| Number of PCI-X Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Onboard Interfaces | |
| Number of IDE Interfaces | 2 |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 1 |
| Physical Characteristics | |
| Width | 304.8 mm |
| Depth | 241.3 mm |
