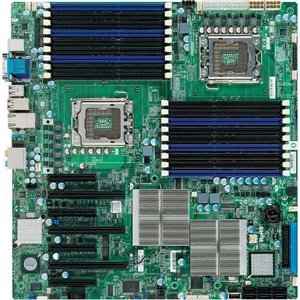

Supermicro X8DAH+-F Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - Retail Pack
MBD-X8DAH+-F-OPlease contact us to discuss alternative products which may be suitable.
This X8DAH+-F Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. X8DAH+-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
Specifications
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X8DAH+-F-O |
| Manufacturer Website Address | http://www.supermicro.co.uk |
| Brand Name | Supermicro |
| Product Model | X8DAH+-F |
| Product Name | X8DAH+-F Server Motherboard |
| Marketing Information | This X8DAH+-F Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. X8DAH+-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus. |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Total Processor Supported | 2 |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon Dual-Core |
| Processor Supported | Xeon Quad-core |
| QuickPath Interconnect | 6.40 GT/s |
| 64-bit Processing | Yes |
| Memory | |
| Number of Memory Slots | 18 |
| Maximum Memory | 144 GB |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type | Floppy Controller |
| Controller Type | Serial ATA/300 |
| Controller Type | Ultra ATA/100 (ATA-6) |
| RAID Supported | Yes |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200eW |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 8 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Total Number of FireWire/i.LINK Ports | 1 |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Onboard Interfaces | |
| Number of IDE Interfaces | 1 |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 2 |
| Total Number of Onboard FireWire/i.LINK Ports | 1 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 347.5 mm |
| Depth | 330.2 mm |
