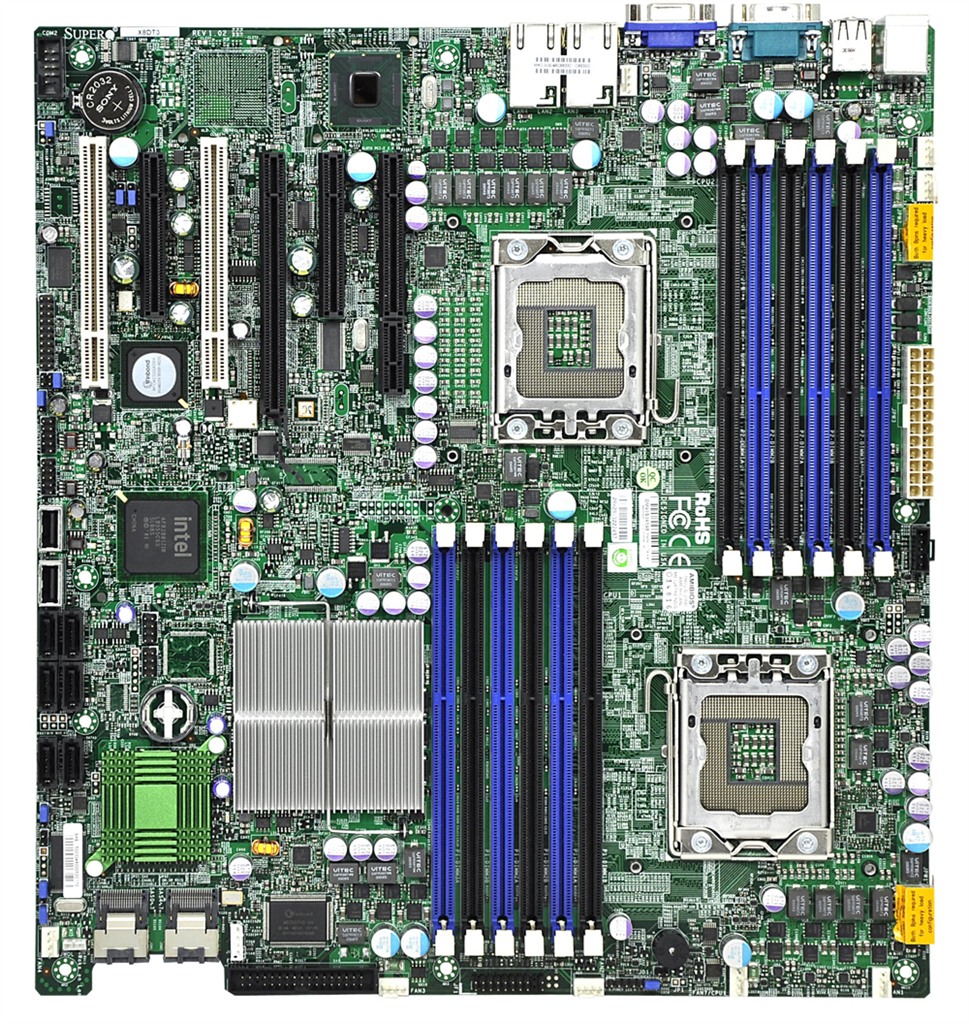

Supermicro X8DT3

Supermicro X8DT3

Key Features
1. Intel® Xeon® processor 5600/5500
    series, with QPI up to 6.4 GT/s

2. Intel® 5520 (Tylersburg) Chipset

3. Up to 192GB DDR3 1333/ 1066/ 800MHz
    ECC Registered DIMM / 48GB
    Unbuffered DIMM

4. Intel® 82576 Dual-Port Gigabit
    Ethernet

5. LSI 1068E 8-Port SAS Controller;
    RAID 0, 1, 10; RAID 5 optional

6. 6x SATA2 (3 Gbps) Ports via
    ICH10R Controller

7. 3 (x8) PCI-E 2.0 (1 in x16 slot),
    1 (x4) PCI-E (in x8 slot),
    2x PCI 33MHz slots

8. Integrated Matrox G200eW Graphics

Product SKUs MBD-X8DT3 -O X8DT3 (Standard Retail Pack) MBD-X8DT3 -B X8DT3 (Bulk Pack)   Physical Stats Form Factor Extended ATX Dimensions 12" x 13" (30.5cm x 33cm)   Processor/Cache CPU Dual 1366-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Intel® Xeon®Processor 5600 Series (Westmere) Intel® Xeon®Processor 5500 Series (Nehalem-EP) QPI up to 6.4 GT/s   System Memory Memory Capacity 12x 240-pin DIMM sockets Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory Memory Mirroring supported Memory Type 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB , 8GB , 16GB Memory Voltage 1.5 V / 1.35V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)   On-Board Devices Chipset Intel® 5520 (Tylersburg) chipset ICH10R + IOH-36D SAS LSI SAS1068E RAID 0, 1, 10 support (Optional: AOC-IButton68) RAID 5 support SATA Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) Network Controllers Intel® 82576 Dual-Port Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization Graphics Matrox G200eW Super I/O Winbond 83627HG chip   Input / Output SAS 8 SAS / SATA ports Serial ATA Six Serial ATA ports Six SATA hard drives supported Floppy 1 Floppy controller; 1.44 MB LAN 2x RJ45 LAN ports USB 2x USB rear ports 2x USB on-board 4x USB internal headers Total 8 USB 2.0 Compliant VGA 1x VGA Port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header (Option)

Chassis ( Optimized for X8DT3 ) 1U Chassis CSE-812L-600CB CSE-815TQ-560CB CSE-815TQ-R700CB 2U Chassis CSE-825TQ-560LPB CSE-826A-R1200LPB CSE-826E1-R800LPB CSE-826E2-R800LP CSE-826TQ-R800LPB 3U Chassis CSE-836E1-R800B CSE-836E16-R1200B CSE-836E2-R800B CSE-836E26-R1200B CSE-836TQ-R800B CSE-933E1-R760B CSE-933E2-R760B CSE-933T-R760B CSE-936E1-R900 CSE-936E16-R1200B CSE-936E26-R1200B Tower / 4U Rackmount CSE-745TQ-920B CSE-846E1-R900B CSE-846E2-R900 CSE-846TQ-R900B Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.   Expansion Slots PCI-Express 3 (x8) PCI-E 2.0 (1 in x16 slot) 1 (x4) PCI-E slot PCI 2x 33MHz PCI slots   System BIOS BIOS Type 32Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support   Management Software SuperDoctor® III Power Configurations ACPI / ACPM Power Management   PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator FAN Total of eight fan headers supporting up to 8 fans Eight 4-pin fan headers 8x fans with tachometer status monitoring Support 3-pin fans (w/o speed control) Low noise fan speed control (4-pin fan only) Temperature Monitoring for CPU and chassis environment Thermal Control for 8x fan connectors PECI Other Features Chassis intrusion detection Chassis intrusion header   Operating Environment / Compliance RoHS RoHS Compliant 6/6, Pb Free Environmental Spec. Operating Temperature: 10° to 35° C (50° to 95°F) Non-operating Temperature: -40° to 70° C (-40° to 158° F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)   OS Compatibility • Please see our OS Compatibility Chart

	Parts List (Retail Pack)   Part Number Qty Description X8DT3 MBD-X8DT3 -O 1 X8DT3 Motherboard I/O Cable 1 CBL-0044L 4 57.5CM SATA FLAT S-S PBF I/O Cable 2 CBL-0083L 1 15.7" USB 2.0 2-PORT W/KEY I/O Cable 3 CBL-0097L-02 2 79536-3220,50CM IPASS TO 4 SATA,PB FREE I/O Cable 4 CBL-010L 1 9 PIN SERIAL PORT DTK CABLE, LF I/O Cable 5 CBL-022L 1 ATX FLOPPY CABLE 3 HEADERS PB FREE Driver Disk CDR-X8 1 DRIVER CD FOR X8 MOTHERBOARD I/O Shield MCP-260-00027-0N 1 STD I/O SHIELD FOR X8, H8, X7SB3 SERVER MB (3RD LAN + 4XLAN) Manual MNL-1062 1 X8DT3, X8DTI, X8DT3-LN4 & X8DTI-LN4 MANUAL
