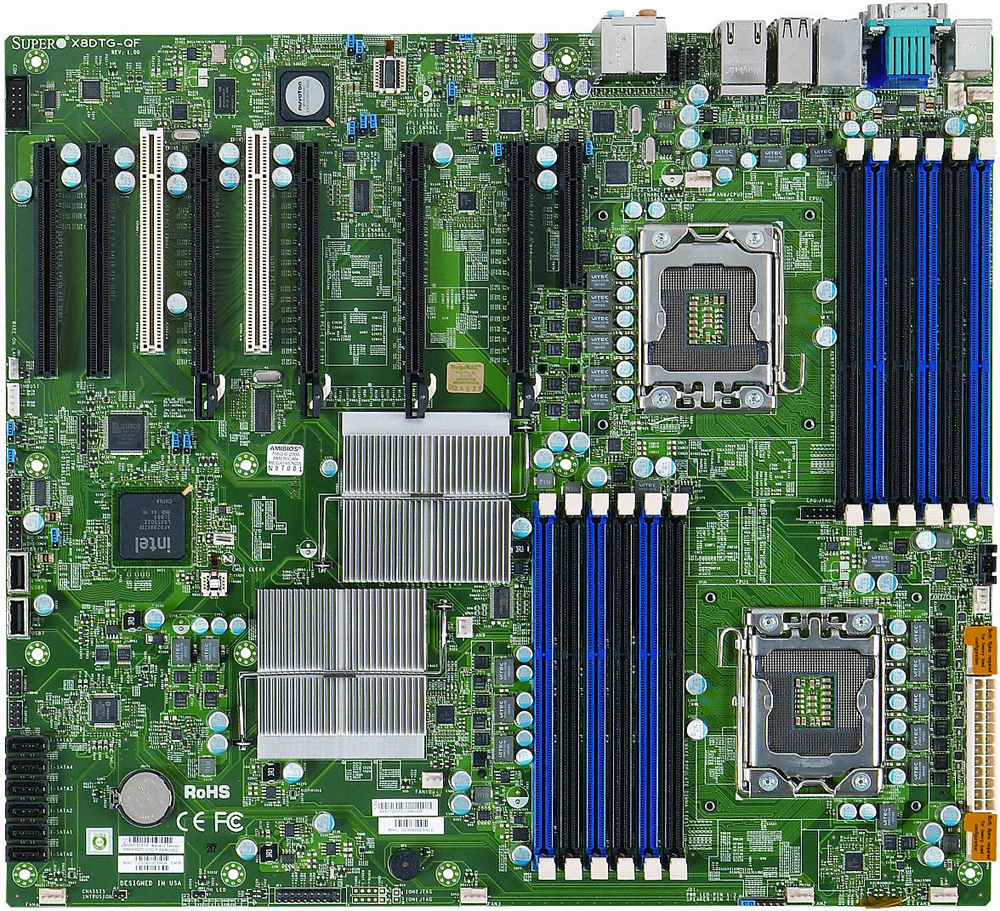

Supermicro X8DTG-QF Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - Retail Pack
MBD-X8DTG-QF-OPlease contact us to discuss alternative products which may be suitable.
The Supermicro X8DTG-QF motherboard supports the Intel 5500/5600 Series Processor platform and the QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface that replaces the current Front Side Bus. With the 5500/5600 Series Processor and dual Intel 5520 IOH-36D chips built in, the X8DTG-QF substantially enhances system performance with increased bandwidth and unprecedented scalability optimized for HPC/Cluster and high-end 4U servers.
Specifications
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X8DTG-QF-O |
| Manufacturer Website Address | http://www.supermicro.co.uk |
| Brand Name | Supermicro |
| Product Model | X8DTG-QF |
| Product Name | X8DTG-QF Server Motherboard |
| Marketing Information | The Supermicro X8DTG-QF motherboard supports the Intel 5500/5600 Series Processor platform and the QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface that replaces the current Front Side Bus. With the 5500/5600 Series Processor and dual Intel 5520 IOH-36D chips built in, the X8DTG-QF substantially enhances system performance with increased bandwidth and unprecedented scalability optimized for HPC/Cluster and high-end 4U servers. |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Total Processor Supported | 2 |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon Dual-Core |
| Processor Supported | Xeon Quad-core |
| QuickPath Interconnect | 6.40 GT/s |
| 64-bit Processing | Yes |
| Memory | |
| Number of Memory Slots | 12 |
| Maximum Memory | 192 GB |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200eW |
| Graphics Controller Memory | 16 MB |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 10 |
| Number of PCI Slots | 2 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 2 |
| Physical Characteristics | |
| Width | 386.1 mm |
| Depth | 330.2 mm |
