Supermicro X9DRi-F

MBD-X9DRI-F-O
Supermicro X9DRi-F
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?

Frequently bought together

SC-03A 600mm Rail Kit for 2U to 4U Chassis
SC-03A 600mm Rail Kit for 2U to 4U Chassis
£33.98 ex VAT
(£40.78 inc VAT)
3U Server Case w/ 16x 3.5
Product Description

Key Features



  1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 Intel® C602 chipset; QPI up to 8.0GT/s
  2. Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
  3. Expansion slots:3x PCI-E 3.0 x16 and 3x PCI-E 3.0 x8
  4. Intel® i350 Dual port GbE LAN
  5. 8x SATA2 and 2x SATA3 ports
  6. Integrated IPMI 2.0 and KVM with Dedicated LAN
  7. 11x USB 2.0 ports (4 rear, 6 via header + 1 Type A)



Specifications

Product SKUs
MBD-X9DRi-F -O
  • X9DRi-F (Standard Retail Pack)
MBD-X9DRi-F -B
  • X9DRi-F (Bulk Pack)

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.5cm x 33.2cm)

Processor/Cache
CPU

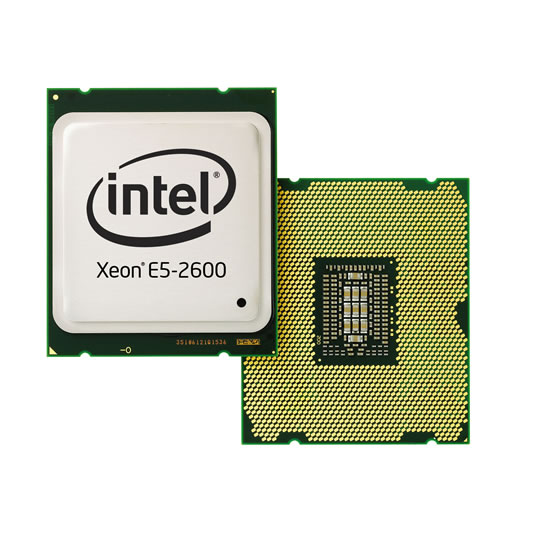

  • Intel® Xeon® processor E5-2600
  • Dual Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • Support ECC and non-ECC UDIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602 chipset
AHCI SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
     SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA (Storage Controller)
  • SATA 2.0 3Gbps with RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
  • G200 (Nuvoton WPCM450 BMC)

Input / Output
AHCI SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SCU SATA
  • 4x SATA 2.0 ports (3Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 11x USB 2.0 ports total
    (4x rear + 6x via header + 1x Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 1 DOM (Disk on Module) power connector
Chassis ( Optimized for X9DRi-F )
2U Chassis
3U Chassis
Tower / 4U Rackmount
Important Chassis Notes
  • To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.
  • Please use optional I/O shield MCP-260-00041-0N in Supermicro 1U chassis

Expansion Slots
PCI-Express
  • 3x PCI-E 3.0 x16 slots
  • 3x PCI-E 3.0 x8 slots

    (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI

Management
Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor® III
  • Watch Dog
  • NMI
  • Optional IPMI 1.5 / 2.0
Power Configurations
  • ACPI / APM Power Management
  • Main Switch Override Mechanism
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, 4 Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support



Reviews

Customer Reviews

There are currently no reviews against this product. Be the first to write a review!

Write a Review
