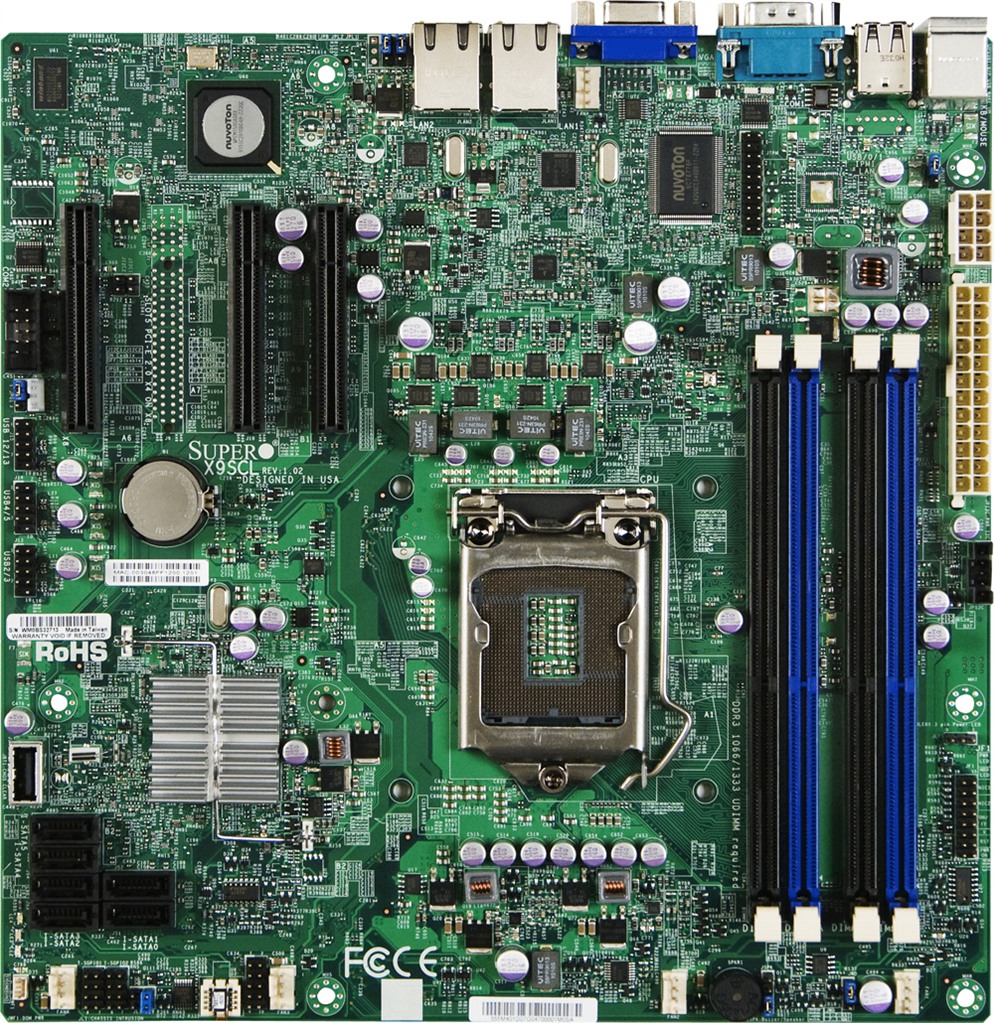

MBD-X9SCL-F -B |
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Form Factor |
|
Dimensions |
- 9.6" x 9.6", (24.4cm x 24.4 cm)
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
CPU |
- Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** *
- Socket H2 (LGA 1155)
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Memory Capacity |
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
|
Memory Type |
- 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
DIMM Sizes |
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Chipset |
|
SATA |
- 6x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
|
Network Controllers |
- Intel® 82579LM and 82574L, 2x Gigabit LAN ports
- Virtual Machine Device Queues High efficient I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
VGA |
- BMC integrated Matrox G200
|
Super I/O |
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Serial ATA |
- 6 SATA 2.0 ports
- 6 SATA hard drives supported
|
LAN |
- 2x Gigabit Ethernet LAN ports:
Intel® 82579LM and Intel® 82574L
- 1x RJ45 Dedicated IPMI LAN port
|
USB |
- 9x USB 2.0 ports total
(2x rear + 6x via header + 1x type A)
|
VGA |
|
Serial Port / Header |
- 2x Fast UART 16550 serial port
(one header and one rear port)
|
DOM |
- 1x DOM (Disk on Module) power connector
|
TPM |
|
|
![](http://www.supermicro.com/a_images/pixel.gif) |
![](http://www.supermicro.com/a_images/pixel.gif) |
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
1U Chassis |
|
Important Chassis Notes |
- To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
PCI-Express |
- 2 (x8) PCI-E 3.0 in x8 slots***
- 1 (x4) PCI-E 2.0 in x8 slots
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
BIOS Type |
- 32Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- DMI (SMBIOS) 2.7
- ACPI 4.0
- PCI 2.3
- USB Keyboard support
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- SuperDoctor® III
- Watch Dog
- NMI
|
Power Configurations |
- ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Power-on mode for AC power recovery
- Internal/External modem ring-on
|
|
![](http://www.supermicro.com/a_images/boxes/line_yellow.gif) |
Voltage |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
|
FAN |
- Total of 5 fan headers supporting up to 5 fans
- Five 4-pin fan headers
- 5x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
LED |
- CPU / System Overheat LED
- +5V Standby alert LED
|
Other Features |
- Chassis intrusion detection
- Chassis intrusion header
|
|
