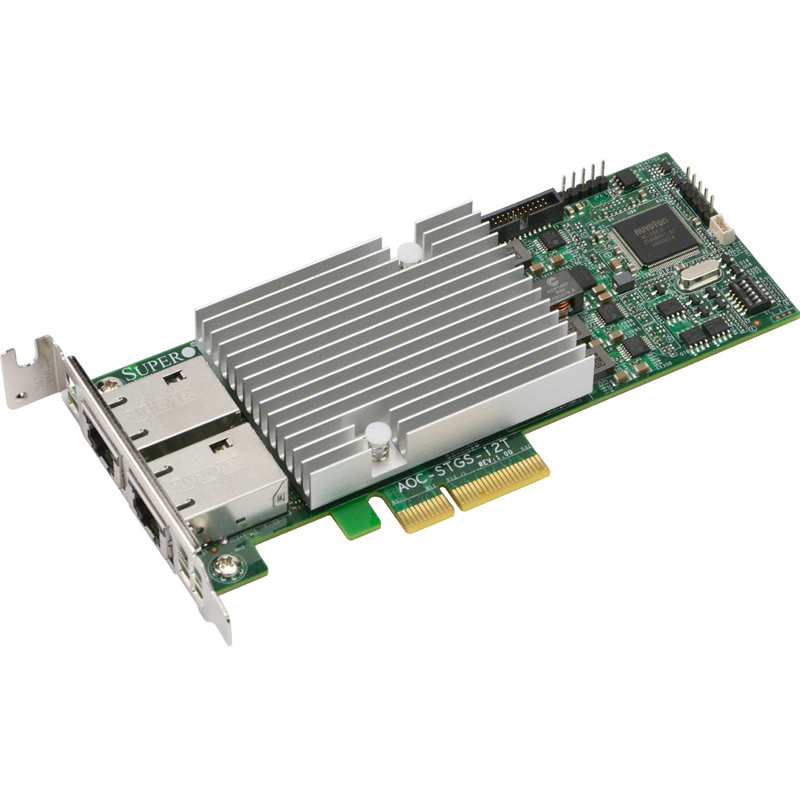

2-Port 10 Gigabit (10GbE) PCI-E 3.0 Ethernet Card - Low-Profile, Intel X550 AT2 10GbE controller with integrated MAC and PHY, PCI-E x4 v3.0 (8GT/s, 5GT/s or 2.5GT/s) interface, Dual RJ45 connectors with speed up to 10Gb/port - RoHS Compliant 6/6, Pb Free
• VXLAN and NVGRE
• Dual RJ45 Connectors
• PCI Express v3.0 x4 (8GT/s)
• IEEE802.3az Energy Efficient Ethernet (EEE)
• Low-Profile, Short Length Standard Form Factor
• Asset Management Features with thermal sensor
• VMDq, PCI-SIG SR-IOV for Virtulization Environments
• Data Center Bridging (DCB) with FCoE stateless offload
• Unified networking delivering LAN, iSCSI and FCoE over 10GbE
• Intel Ethernet Flow Director for hardware-based application traffic steering
• Intel’s second generation, dual-port 10GbE controller with integrated MAC and PHY
Main Specifications |
Device Type |
10GbE controllers |
Dimensions (WxDxH) |
Card PCB dimensions: 15cm x 6.89cm (5.9in x 2.71in) (LxW) |
|
Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in) |
Form Factor |
Low-Profile, Short Length Standard Form Factor |
Interface (Bus) Type |
PCI Express v3.0 x4 (8GT/s) |
Weight |
120g (0.2645lb) |
Expansion / Connectivity |
Interface and Connections |
Dual RJ45 connectors with speed up to 10Gb/port |
Networking |
Features |
Jumbo Frames support up to 15.5KB |
Port Quantity |
Dual RJ45 Connectors |
Environmental Parameters |
Operating Temperature |
Operating temperature: 0°C to 55°C (32°F to 131°F) |
|
Storage temperature: -40°C to 70°C (-40°F to 158°F) |
|
Storage humidity: 90% non-condensing relative humidity at 35°C |
Software / System Requirements |
System Requirements Details |
Motherboards with minimum PCI-E x4 slot |
|
Server Systems with low-profile or full-height PCI-E x4 expansion slot |
|
NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors |
OS Supports |
Windows 7 SP1, Windows 8, Windows 8.1, Windows 10 (X64) |
|
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (X64) |
|
Windows PE 3.0 (2008 R2 PE), Windows PE 4.0 (2012 PE), Windows PE 5.0 (2012 R2 PE) (IA32, X64) |
|
Linux Stable Kernel Version 2.6/3.x/4.x (IA32, X64, IPF) |
|
Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 12 (IA32, X64) |
Miscellaneous |
Cables Required |
RJ-45 Category-6 up to 55m, Category-6A up to 100m |
ROHS |
RoHS Compliant 6/6, Pb Free |
