Intel Server System H2216JFFJR Barebone System - 2U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support
H2216JFFJRPlease contact us to discuss alternative products which may be suitable.

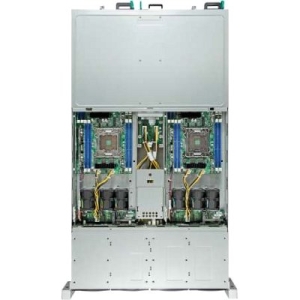

The Intel® Server System H2200JF is specifically designed for the high performance computing (HPC) market, a high-density, 2U, four-node solution supporting up to eight total Intel® Xeon® processor E5-2600 product family, optional QDR/ FDR InfiniBand, and a total of 32 memory DIMMs at 1600MHz, balancing optimal memory bandwidth and computing power to maximize price performance. The Intel® Server System H2200JF includes energy-efficient power supplies, front control panels, and intelligent system-level management for overall system and individual node monitoring. The system is also available with Intel® I/O Expansion Modules or Intel® Remote Management Module 4, upgrades available separately.
Specifications
| General Information | |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | H2216JFFJR |
| Manufacturer Website Address | http://www.intel.co.uk |
| Brand Name | Intel |
| Product Line | Server System |
| Product Model | H2216JFFJR |
| Product Name | Server System H2216JFFJR |
| Marketing Information | The Preferred Compute Density Solution for Maximum I/O Capacity and Memory Throughput The Intel® Server System H2200JF is specifically designed for the high performance computing (HPC) market, a high-density, 2U, four-node solution supporting up to eight total Intel® Xeon® processor E5-2600 product family, optional QDR/ FDR InfiniBand, and a total of 32 memory DIMMs at 1600MHz, balancing optimal memory bandwidth and computing power to maximize price performance. The Intel® Server System H2200JF includes energy-efficient power supplies, front control panels, and intelligent system-level management for overall system and individual node monitoring. The system is also available with Intel® I/O Expansion Modules or Intel® Remote Management Module 4, upgrades available separately. |
| Product Type | Barebone System |
| Processor & Chipset | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| QuickPath Interconnect Supported | Yes |
| Memory | |
| Maximum Memory | 1 TB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Storage | |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Type | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 20 |
| Number of SATA Interfaces | 24 |
| Number of SAS Interfaces | 16 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 88.9 mm |
| Width | 436.9 mm |
| Depth | 749.3 mm |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
Write a Review
Sorry there are no compatible products listed. Please contact us to discuss options available for this product.
Product downloads
There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
