Mitsubishi WD3300U DLP Projector 2300:1 4000 Lumens 1280 x 800 (WXGA) 10.3Kg

It is now more important than ever to stretch your budget dollars, so we�re designing new features that reduce operating costs and extend the life of your presentation projector. The WD3300U WXGA projector introduces new colour wheel and lamp drive systems that do just that. This DLP projector shines at 4,000 lumens and 2300:1 contrast for large auditoriums, lecture halls or other venues where you need to project to a very large screen. Through extensive engineering and testing, Mitsubishi can confirm the WD3300U can be operated 24 hours a day, 7 days a week. For more information on how 24/7* operation will effect warranty coverage, refer to the Warranty tab. The WD3300U colour wheel is an all new design that integrates magnetic sensors and encloses the system in a nearly airtight housing. The spinning wheel moves air away from the sensors to eliminate dust accumulation and the magnetic signal sensor mitigates the effect of dust as well. Your presentation cwill be be presented with vivid colours and retains out-of-the-box clarity.



Projector lamps produce their illumination by creating an arc between two electrodes. Those electrodes usually degenerate, creating a wider gap and a resulting loss of brightness. Mitsubishi engineers have added a new lamp drive system to this WXGA projector that prevents electrode wear for longer life and sustained image brightness. Lamp life is estimated up to 4,000 hours (low mode). Mitsubishi five-segment colour wheel adds a yellow segment to the standard red, green, blue, and white, and Texas Instruments BrilliantColorTM produces a more colour intensity and vibrancy across your entire screen. The WD3300U WXGA projector combines a range of additional features that make it easy-to-use and maintain: Mitsubishi variable lamp mode dynamically adjusts power to selected colour wheel segments for more vivid colour or brightness, depending on your input source material � Side-access, centre lens design with a projector chassis cutaway that makes it easy to change among OL-XL2550 lens options to match your setup � Redesigned cooling air flow for efficient and quiet 26 dBA operation (low mode) � Input ports include native digital HDMI for video and DVI-D for computer data display � RJ-45 port for remote network connection and projector management.Features

• Mitsubishi WD3300U DLP Projector
• Native WXGA Resolution (1280 x 800)
• Brightness: 4000 ANSI Lumens
• Contrast Ratio: 2300 : 1 (on/off)
• Simple Lens Changes: Easy to remove and install optional lenses
• Motorized Lens Shift: Easily adjustable horizontal or vertical lens shift provides flexibility for installing and displaying image. Motorized focus for accurate image adjustment
• Security Features: Compatible Kensington lock slot; Password lockout capability which protects the projector from unauthorized use
• Filter-Free: No filter required, resistant to dust and dirt, no clogged filters. Reduced maintenance fees.
• Digital Inputs: DVI-D and HDMI inputs for true digital connections from both PC or video sources
• Brilliant Color: Allows for more vivid, rich colours while increasing mid-tones and superior black levels
• Color Enhancer: Allows the user to control the BC technology to meet the most demanding colour preferences. Mitsubishi Exclusive
• High Brightness: Able to project images in large venue or less controlled lighting environments
• Cable Cover: Clean look, Hide those straggling cables and cords
• RJ45 LAN Management Control: Provides flexible asset management and projector control via network administration
• Warranty: 3-Years of Parts/Labour, 3-Years of Express Replacement Assistance (ERA), 1-year or 500 hours lamp warranty (whichever comes first)

Specifications

Display
Projector Type	DLP
Display Technology	0.65 inch DMD
Resolution (Maximum)	SXGA (1280 x 1024 Pixels)
Resolution (Native)	WXGA (1280 x 800 Pixels)
Aspect Ratio	16:10
Picture size	1.01m - 7.62m (Diagonal)
Throw Ratio	1.7 to 2.4 : 1
Brightness	4000 Lumens
Contrast Ratio	2300:1 (Static)
Lens	f=24.5-33.1mm, F=2.0-2.4
Lens Type	Motorized Focus and Zoom Lens
Projection Lamp	264W (Shut-off Time 4000hr) with Low Mode � 330W (Shut-off Time 2000hr) with Standard Mode
Lamp Life	Normal Mode 2000 Hours , Low/Eco/Whisper Mode 4000 Hours
Horizontal Frequency	15KHz to 100KHz
Vertical Frequency	50Hz to 95Hz
Electrical
Power Consumption	Operating 430W
Electrical Voltage	100 to 240V AC
Electrical Frequency	50 to 60Hz
Environmental
Noise Level (full operating mode)	High/Normal/Bright Mode 33dB
General
Model Name	WD3300
Product Type	Projector
Warranty	3-year parts and labour warranty, 3-years on Mitsubishi�s Express Replacement Assistance (ERA), 1-yr or 500hrs lamp warranty (whichever comes first).
Barcode	0082400028006
Input
Remote Controller	Included

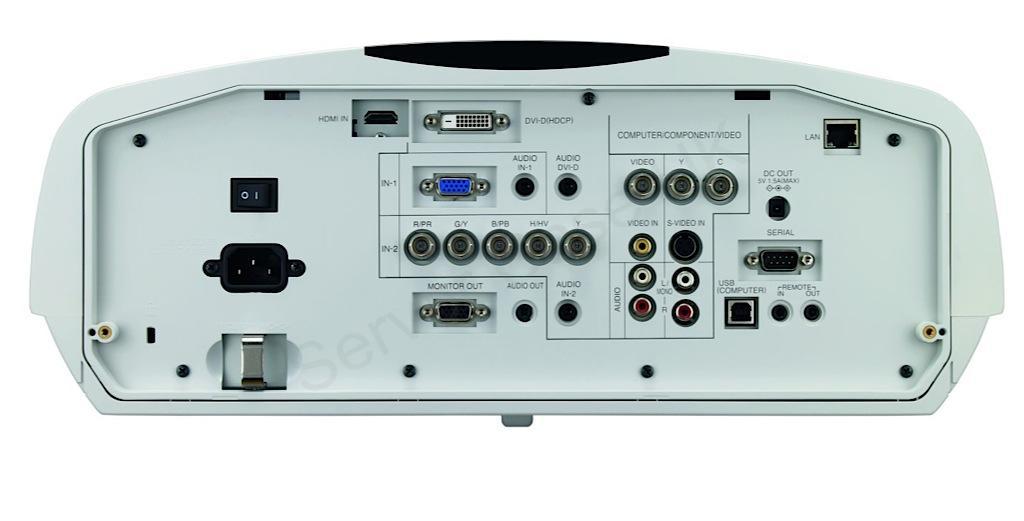

Interfaces/Ports
VGA Ports	1 x 15-pin mini D-sub , 1 x 15-pin mini D-sub
DVI Port	1 x DVI-D (with HDCP)
HDMI Port	1 x HDMI
Video Component In	1 x 5 BNC
S-Video in	1 x S-Video
Video Composite In	1 x RCA
Audio Line In Ports	2 x 3.5mm Stereo Mini-jack � 2 x RCA
Audio Out	1 x 3.5 mm Stereo Mini Jack
USB Ports	1 x USB
RJ-45 Ports	1 x RJ-45
Serial Interface	1 x 9-pin D-Sub RS-232
DC Power	1 x DC 5V
Physical
In The Box	XD3200U Digital Projector, AC Power Cable, RGB cable, RS-232C cable, Terminal Cover, Remote Unit (incl. Battery), User Manual CD, Safety Manual
Dimensions	44.96cm (W) x 37.34cm (D) x 18.8cm (H) - Weight 10.3kg
Sound
Speakers	Yes , 7W Mono
Audio Features	Audio Out: Variable
System
Supported Video Source	NTSC � PAL � SECAM
Graphics Compatibilty	WXGA, SXGA
Graphics Standards Support	WXGA
Compatibility	NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
