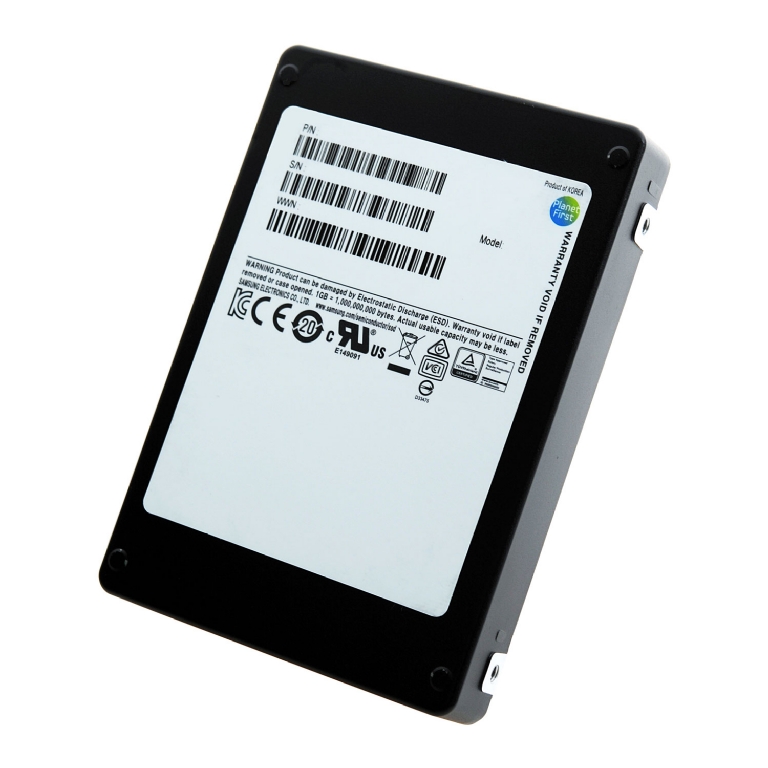

800GB Samsung PM1725a 2.5" U.2 SSD, PCIe 3.0 (x4), NVMe, TLC 3D/V-NAND, 3300MB/s Read, 1000MB/s Write, 700k/70k IOPS

MZWLL800HEHP-00003
800GB Samsung PM1725a 2.5" U.2 SSD, PCIe 3.0 (x4), NVMe, TLC 3D/V-NAND, 3300MB/s Read, 1000MB/s Write, 700k/70k IOPS
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Specifications
Capacity 800GB
Edition PM1725a
Form Factor 2.5"
Height 15 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.2
Controller Epic2
Flash Memory Type 3-bit TLC 3D/V-NAND
Max. Read 3300 MB/s
Max. Write 1000 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 700,000 IOPS
Max. Random Write 4K 70,000 IOPS
Latency 115/25 us (Sequential), 115/30 us (Random)
Special Features
  • Dynamic Wear-Leveling
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • Hot Pluggable
  • S.M.A.R.T Support
  • Single Port x4 Lane/Dual Port x2 Lane
  • Static Wear-Leveling
  • Support PCI Express AER (Advanced Error Reporting)
  • Supports 129 Vectors for MSI-X
  • Supports SFF-8639 SMBus
  • Supports UEFI Expansion ROM
  • Supports upto 128 I/O Queues per Port
  • TRIM Support
  • UBER: <1 sector per 10^17 bits read
Power Consumption (active) 16W
Max. Endurance Rating 7.3 PBW
MTBF 2,000,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration 20 Gpeak (10~2,000Hz, Sweep sine)
Max. Operating Shock
Max. Non-operating Shock 1,500G / 0.5msec
Connectivity 1 x U.2 (SFF-8639)
OS Support
  • RHEL 6.4/ 6.5/ 6.6 (Kernel 2.6.32)
  • RHEL 7 (Kernel 3.10.0)
  • RHEL 7.1 (Kernel 3.10.0)
  • SLES 11 SP3 (Kernel 3.0.13)
  • SLES 12 (Kernel 3.12.28)
  • Windows Server 2008 R2 (64-bit)
  • Windows Server 2012 (64-bit)
  • Windows Server 2012 R2 (64-bit)
Bracket N/A
Dimensions 69.85 x 15 x 100.2 mm (WxHxD)
Weight 170 g
Package Type Retail
