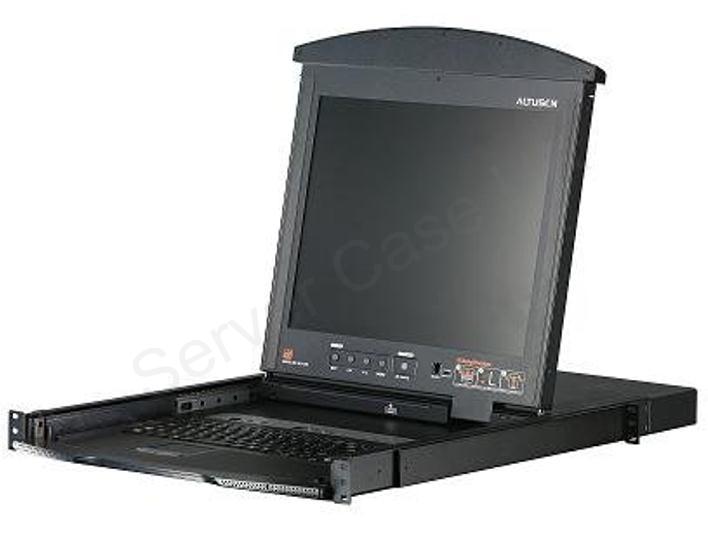

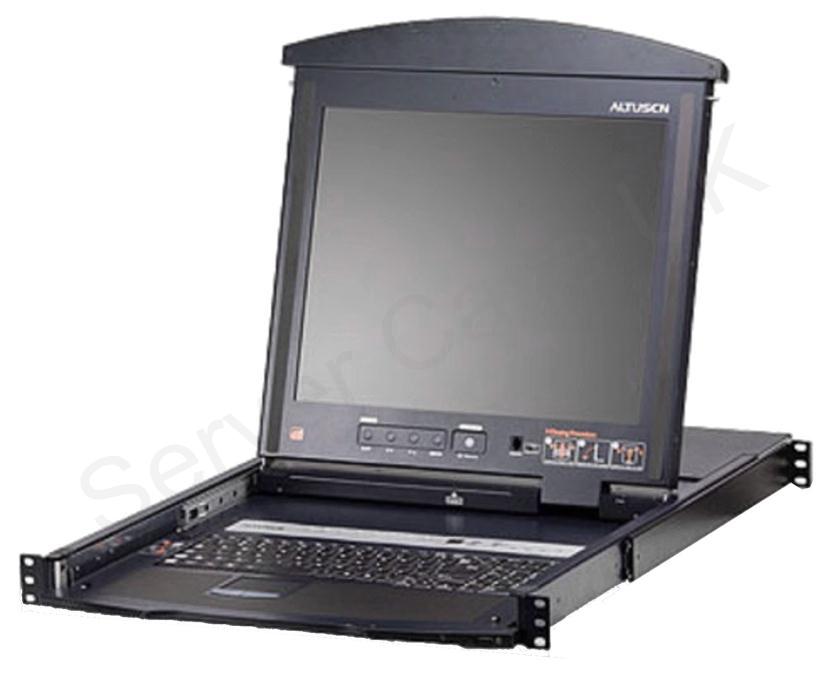

Aten KL1508AM 8-Port Cat-5 High Density Dual Rail LCD KVM Switch with 19 inch LCD Monitor (Black)

KL1508AN LCD KVM Switch features independently retractable, dual slide 19 inch LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console. For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.



These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data centre devices easily and conveniently. For example, the advanced Adapter ID feature stores the Adaptor Cable's configuration information - such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advances found with these switches includes enhanced video quality - extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024. A KL1508A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508A KVM switch.Features

• Integrated KVM console with 19 inch LCD monitor in a Dual Rail housing
• A single console controls up to 8 computers
• Space-Saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adaptor cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• OSD tree structure makes finding and managing computers easy
• Conveniently located station and port selectors with LED displays to quickly switch to target computers
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space
• Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Supports external USB mouse
• Dual Rail - LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock - enables the console drawer to remain securely locked away in position when not in use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 256 computers
• Auto Scan Mode enables continuous monitoring of user-selected computers

Specifications

Compliance
Certifications	RoHS
Display
Screen	19in LCD
Display Resolution	1600 x 1200 Pixels
Electrical
Voltage/Frequency	100 to 240V AC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 80%
General
Model Name	KL1508AM
Product Type	Server Console
Barcode	4710423777477
Input
Control Buttons	OSD, Hotkey , Pushbutton
Physical
Case Colour	Black
In The Box	1 x KL1508AN Cat 5 High-Density Dual Rail LCD KVM Switch with 19-inch LCD Monitor; 1 x Firmware Upgrade Cable; 1 x Power Cord; 1 x Grounding Wire; 1 x User Instructions
Dimensions	48.2cm (W) x 76.0cm (D) x 4.4cm (H) - Weight 18.31kg
System Requirements
System Requirements	Supported: Windows, Mac, Sun and Serial
