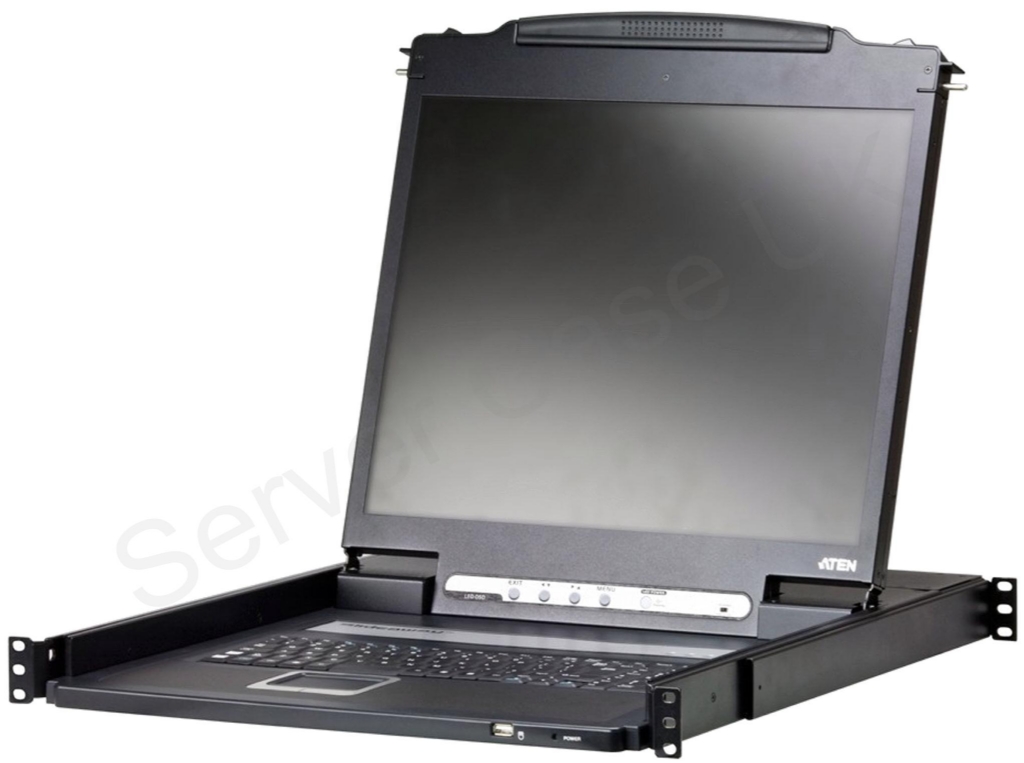

Aten CL3000N Lightweight PS/2-USB LCD Console with Standard Rack Mounting Kit (Black)

The CL3000N Lightweight PS/2-USB LCD Console is an integrated KVM (keyboard, monitor, and mouse) console module that serves as the front end console for compatible KVM switches. Lightweight and with a 19 inch power-saving LED-backlit LCD, the CL3000 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, LED-backlit LCD monitor, and touchpad in a 1U housing. Additional console ports allows the second user local access, while in conjunction with an ATEN on the NET or KVM Extender, you can remotely control computers in different locations just as if you were right there in front of them.

Features

• Integrated KVM console featuring a 19 inch LCD monitor
• Green power LED-backlit LCD monitor saves energy
• Lightweight design for easier installation
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - up to 1280 x 1024 @ 75 Hz; DDC2B
• Firmware upgradable

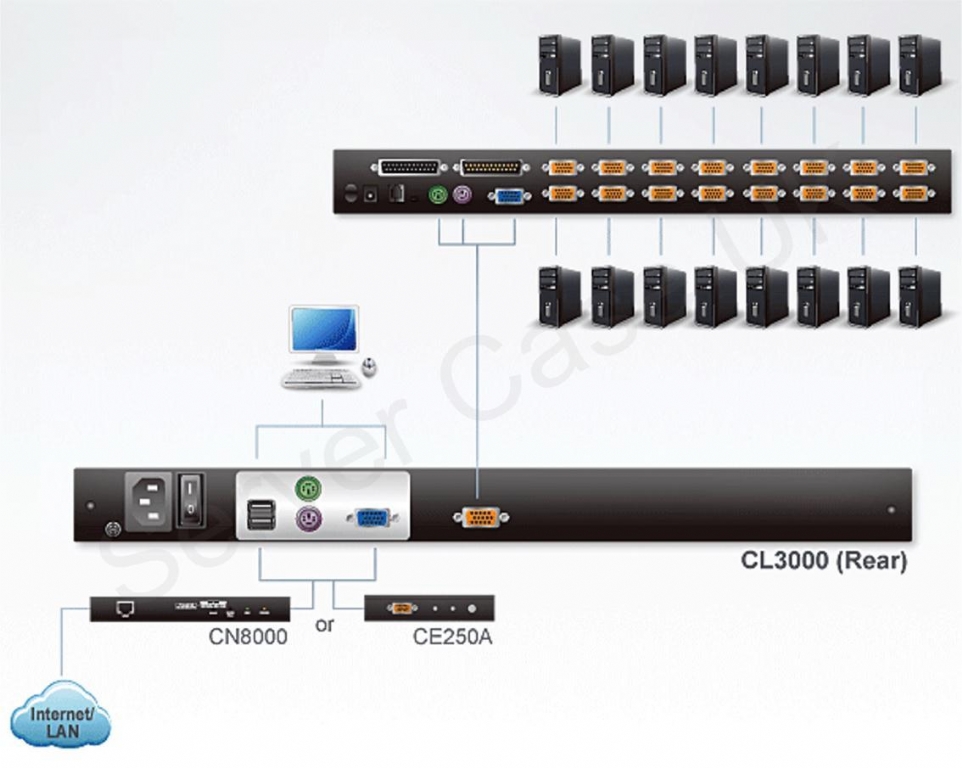

• Extra console port - manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)
• Console lock - the console remains securely locked away when not in use
• Slideaway housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor
• Adjustable depth to fit within a rack
• Standard 105-key keyboard

Specifications

Display
Screen	19in LED-backlit LCD
Display Resolution	1280 x 1024 Pixels
Electrical
Voltage/Frequency	100 to 240V AC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 80%
General
Model Name	CL3000N
Product Type	Server Console
Barcode	4710423775756
Input
Control Buttons	Hotkeys
Physical
In The Box	1 x CL3000N Lightweight PS/2-USB LCD Console with Standard Rack Mounting Kit � 1 x Custom KVM Cable � 1 x Power Cord � 1 x Grounding Wire � 1 x User Manual � 1 x Quick Start Guide
Dimensions	48.5cm (W) x 58.51cm (D) x 4.4cm (H) - Weight 8.41kg
