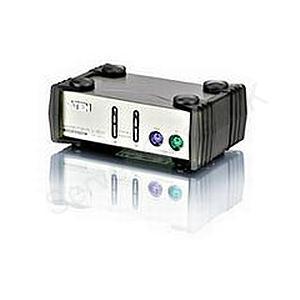

Aten CS82A 2-Port PS/2 KVM Switch

CS82A is a KVM switch with built-in PS/2 on each of the front and rear panels. It can control 2 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, durable and small enclosure design is its important feature.

Features

• One PS/2 console controls 2 computers
• Computer selection via front panel pushbuttons and hotkeys
• Superior video quality- up to 1920 x 1440; DDC2B
• Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse
• Compact, Sturdy, Durable Metal Housing
• Keyboard and mouse emulation for error free booting
• Auto Scan function to monitor computer operation
• Non-powered
• OS Compatibility: DOS, WIN 98, WIN ME, WIN NT, WIN 2K, WIN XP, WIN 2003, Windows Vista, LINUX. Mac 8.6/9/10 and SUN Solaris 8/9 (with optional adaptor)
• Housing: Metal

Specifications

Electrical
Power Adaptor Output	9VDC
Environmental
Operating Temperature	Operating Temperature 0 to 50�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	CS82A
Product Type	KVM Switch
Barcode	4710423771581
Input
Control Buttons	Push Button Hotkeys
Interfaces/Ports
Console Keyboard Port	1 x 6-pin Mini-DIN Female (Purple)
Console Mouse Port	1 x 6-pin Mini-DIN Female (Green)
Video In Ports	1 x HDB-15 Female (Blue)
KVM Ports	2 PC Port(s) x 1 Console Port(s)
KVM Ports & Connectors	Keyboard: 2 x 6-pin Mini-DIN Male (Purple) � Video: 2 x HDB-15 Male (Blue) � Mouse: 2 x 6-pin Mini-DIN Male (Green)
DC Power	1 x DC Jack (Black)
Physical
LED Status Indicators	On Line: 2 (Orange), Selected: 2 (Green)
In The Box	1x 2 Port KVM Switch � 2x PS/2 KVM Cables � 1x User Manual
Dimensions	14.00cm (W) x 8.70cm (D) x 5.50cm (H) - Weight 0.42kg
