Aten CS84U 4-Port PS2/USB Desktop KVM Switch with 4 x Custom KVM Cable Sets (Metal)

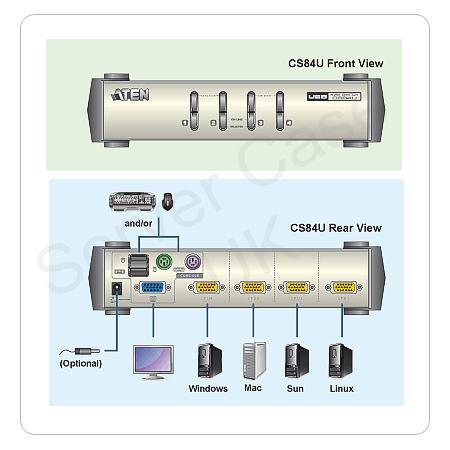

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution. Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.

Features

• One PS/2-USB VGA console controls four VGA interface computers
• Dual Interface - supports computers with PS/2 or USB keyboards and mice

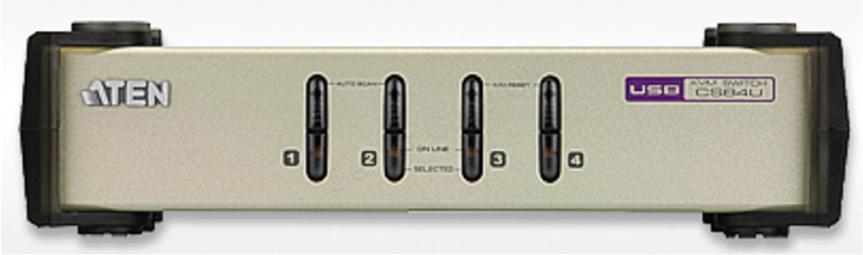

• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered

Specifications

Display
Monitor Resolution Support	2048 x 1536 Pixels
Electrical
Power Adaptor Output	5VDC
Environmental
Operating Temperature	Operating Temperature 0 to 50�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	CS84U
Product Type	KVM Switch
Barcode	672792002052
Input
Control Buttons	Push Button Hotkeys

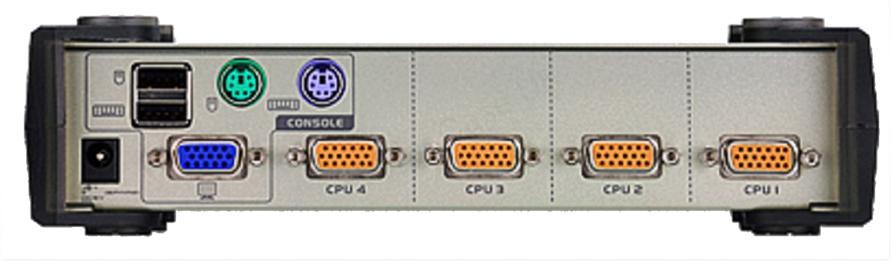

Interfaces/Ports
PC USB Port(s)	2 x USB
Console Keyboard Port	1 x 6-pin Mini-DIN Female (Purple)
Console Mouse Port	1 x 6-pin Mini-DIN Female (Green)
Video In Ports	1 x HDB-15 Female (Blue)
KVM Ports	4 PC Port(s)
DC Power	1 x DC Jack (Black)
Physical
LED Status Indicators	On Line: 4 (Orange), Selected: 4 (Green)
In The Box	1 x CS84U PS/2-USB KVM Switch, 4 x Custom KVM Cable sets, 1 x User Guide
Dimensions	8.7cm (W) x 21.0cm (D) x 5.5cm (H) - Weight 0.77kg
System Requirements
Operating Systems Supported	Windows 2000, XP, Vista, Linux, Mac, Sun
